V2416A Hardware Hardware Connection Description
3-13
3. Follow the instructions in the Installing a Storage Drive section to remove a storage drive.

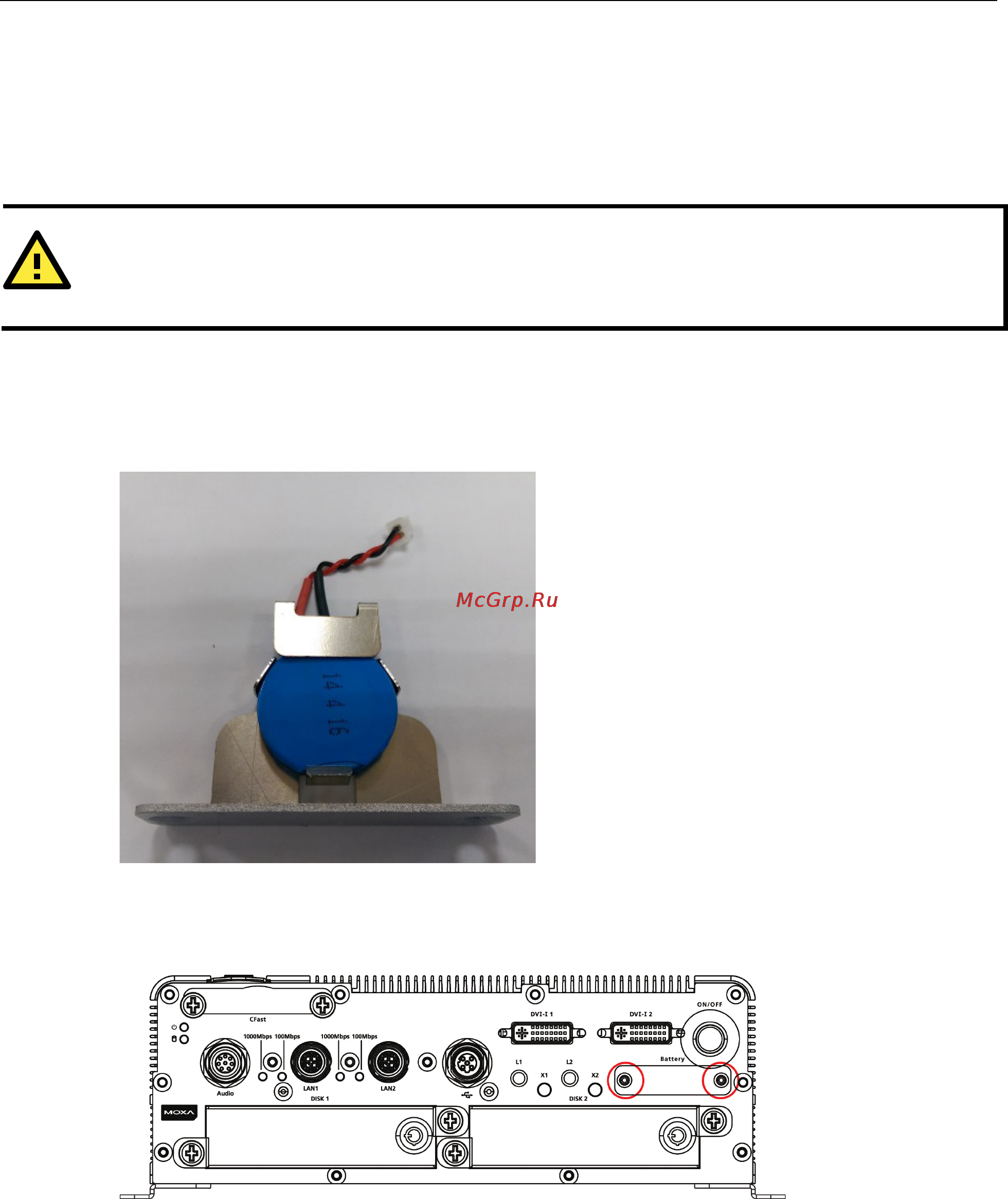

RTC Battery Replacement
The V2416A embedded computer has an easy RTC battery replacement design.
WARNING
There is a risk of explosion if the battery is replaced by an incorrect type of battery. Consult with a qualified
Moxa support engineer if you have any questions or are unclear about any these instructions.
Complete the following steps to replace the battery:
1. You will need to use the “RTC Battery Kit,” which is listed as an optional accessory in the V2416A
datasheet’s list of optional accessories.
2. Make sure that the V2416A is turned off and is disconnected from its power source.
3. The RTC battery socket is located to the left of the “ON/OFF” power button, below the “DVI-I 2” connector.
Loosen two screws used to attach the RTC battery socket cover to the V2416A.
4. Lift up and pull out the RTC battery holder.
5. Disconnect the power cable between the battery and the V2416A, and then connect the new RTC Battery Kit
to the V2416A.
