V2426A W7E Series System Recovery
8-2
Overview
This section describes how to prepare your computer for recovery in the event the system becomes unstable.
You can perform a system recovery using one of the following system images:
• A clean factory default image.
• A user-generated image created from a fully configured, fully set up system.
Before you perform a system recovery, set up the system environment.
Setting Up the Recovery Environment
To set up the recovery environment on a V2426A computer, prepare a USB drive that has at least 4 GB of
memory and a copy of the recovery suite.
The following lists the major steps in the recovery procedure:
1. Copy the recovery programs and system image file on to the USB drive. Set up the drive as a live-drive
system with an ISO image of the boot environment.
2. Reboot the system and configure the BIOS to boot the recovery system from the USB port.
3. An image of the current software system will be created on the USB drive. The recovery environment will
use this image when restoring the system.
4. Reboot the system again and the BIOS is returned to its original state.
Setting Up a Factory Default Recovery Image
Step 1: Preparing the USB drive
1. Load the software DVD that came with your V2426A computer and execute tuxboot-windows-23.exe in
the \recovery\
folder.

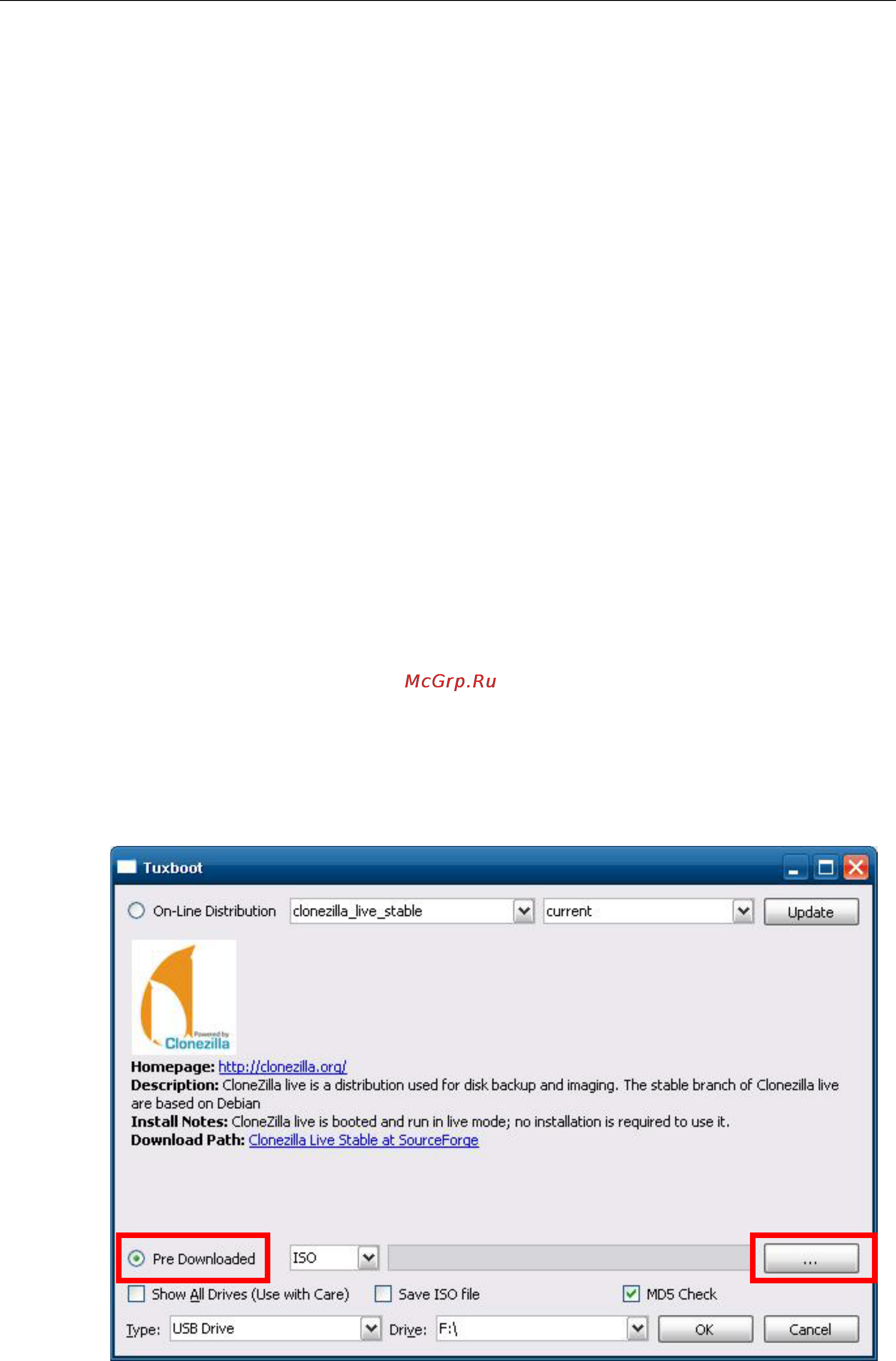

2. Select Pre Downloaded and click the ellipsis (…) button to browse the file system and locate the boot
environment’s ISO image.
