V2426A W7E Series Examples
7-4

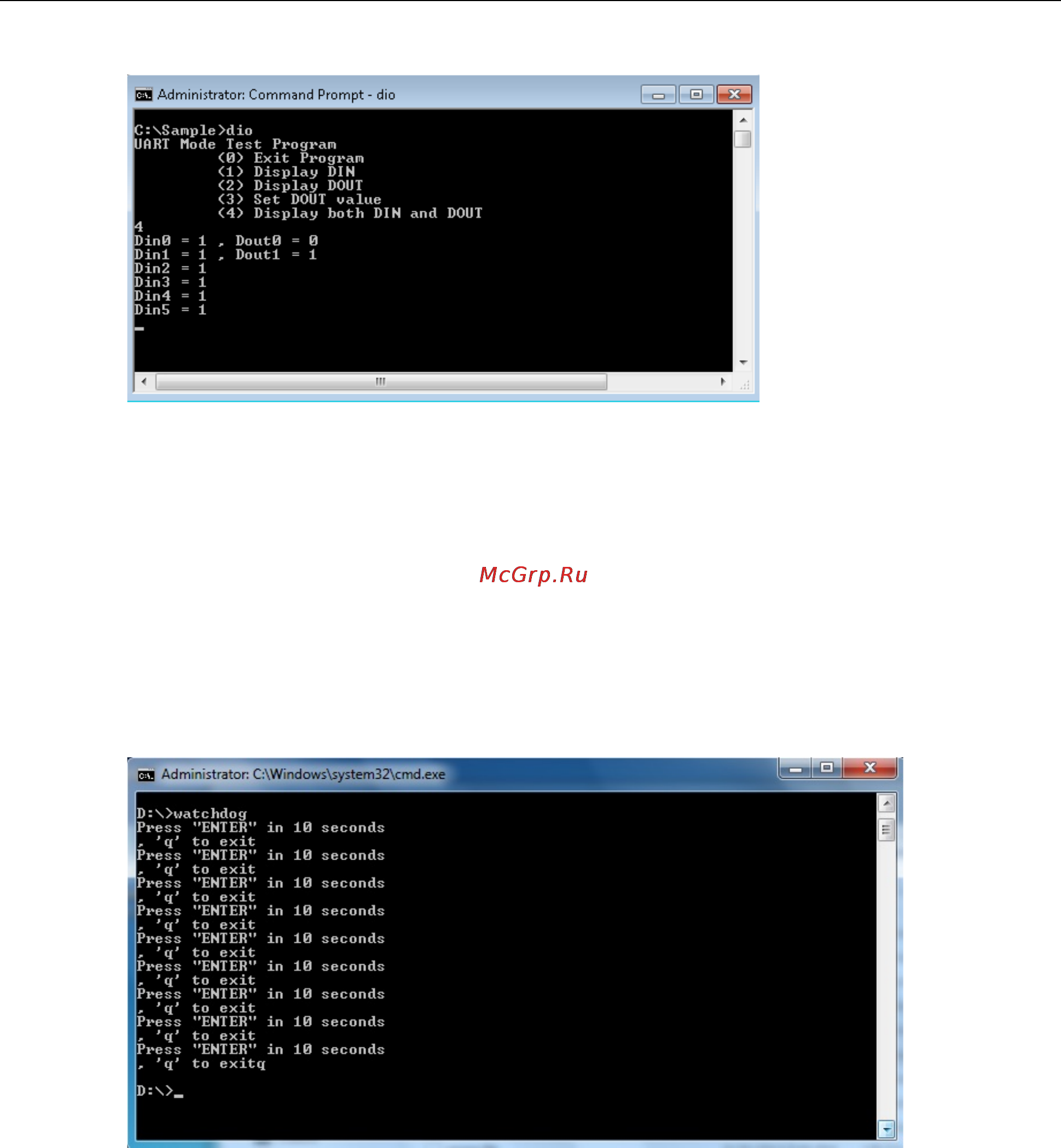

5. Type 4 to check if the port value was set correctly.
Watchdog
1. From the product software DVD, copy the following files:
• mxdev.dll: \examples\V2426A_W7E_V1.0_example\lib\mxwdg\x86\
• mxGeneralIo.dll: \examples\V2426A_W7E_V1.0_example\lib\MxGeneralIo\x86\
• Watchdog.exe: \examples\V2426A_W7E_V1.0_example\Release\
2. To prevent the system from rebooting, press [Enter] at least once every 10 seconds; otherwise, the system
will reboot automatically.
3. To stop the watchdog, press q to exit the program
