V2426A W7E Series System Recovery
8-6

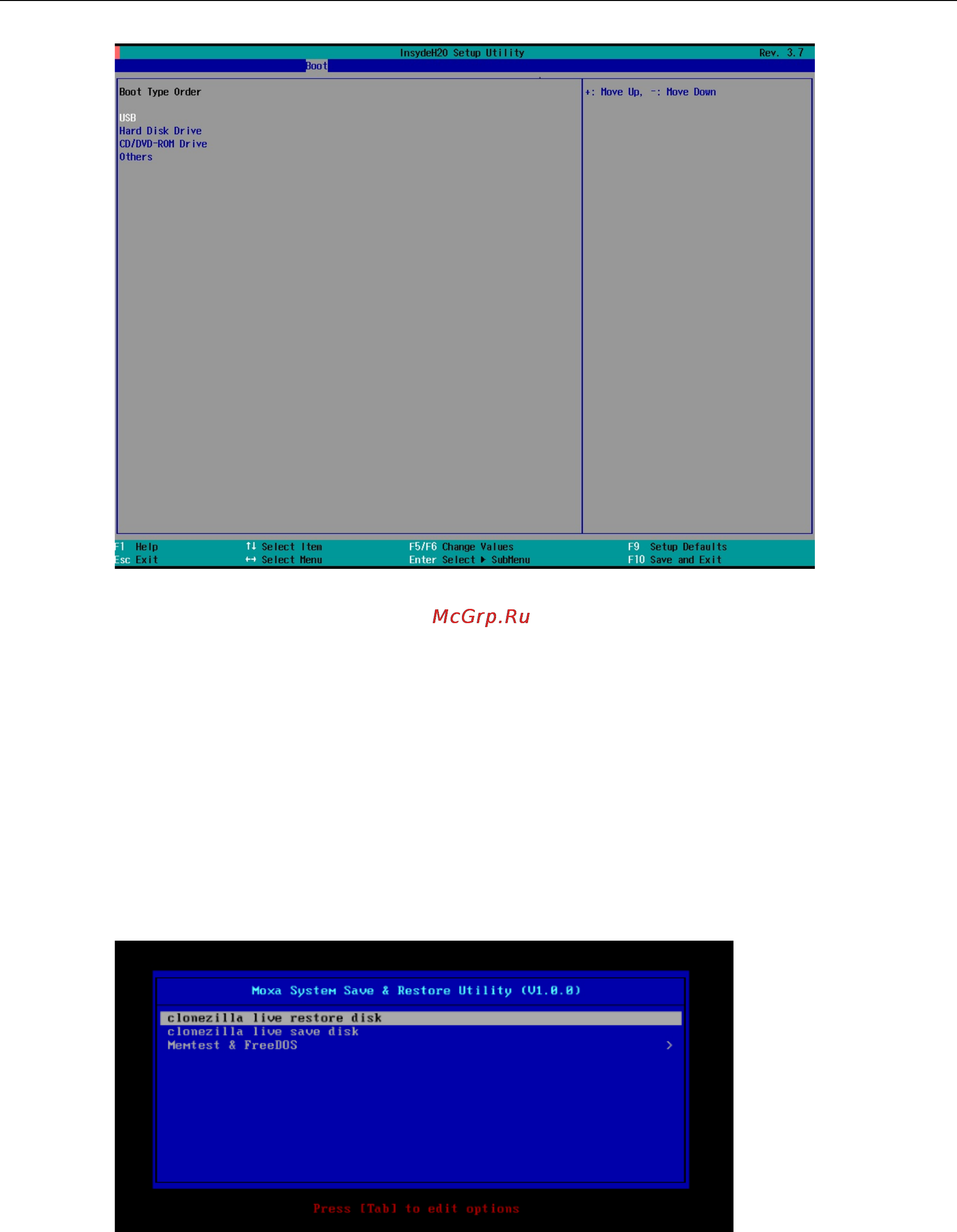

6. Press F10 and [Enter] to save and exit the BIOS configuration interface. This sets the system to reboot from
the hard drive.
Step 3: Performing a System Recovery
This step describes how to perform a system recovery. We include this as step 3 of the installation so
administrators can first perform a test run before deploying the system to the field.
To begin the system recovery process, configure the BIOS settings as described in the previous section Step
2: Setting the BIOS to Boot via USB. Then, connect the USB recovery drive to any USB ports on the V2426A
and then reboot the computer. If you have successfully prepared the USB and BIOS, the computer will boot into
the Clonezilla boot loader from the USB port.
1. Select clonezilla live restore disk to boot into the system recovery environment.
