V2400A Series Expansion Modules Software Installation and Programming Guide
4-27
Using cell_mgmt

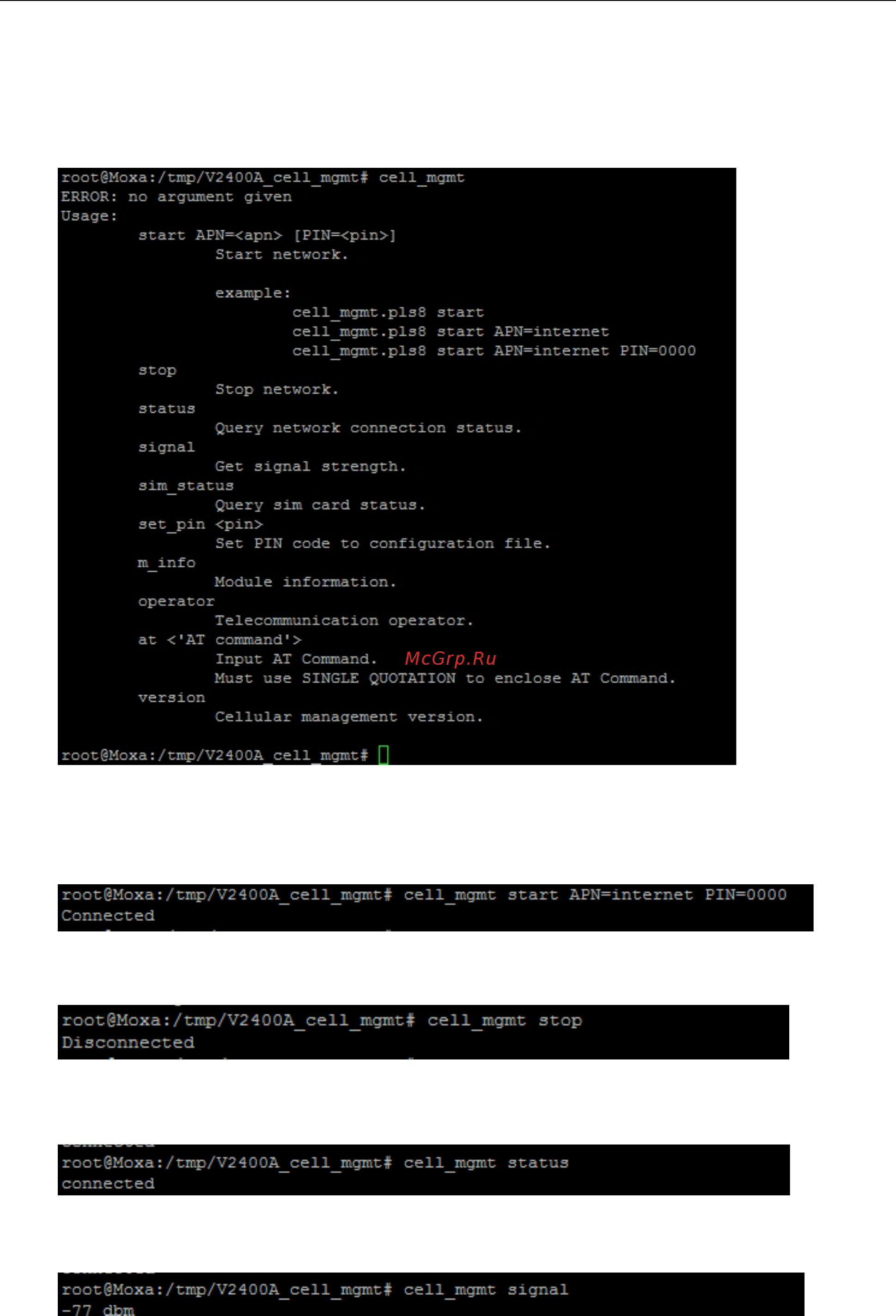

Usage Menu
start
Automatically sets the DNS and default gateway for the cellular interface and establishes a connection.
Before you set a gateway for the cellular interface on your computer make sure you disable the computer’s default
gateway.
stop
Disconnects the cellular network connection.
status
Gives the status of the network connection [connected, disconnected]
signal
Gives the signal strength of the cellular module.
