EPM-3032: Configuring Serial Port Mode
Take the following steps to configure the operation mode of each COM port:

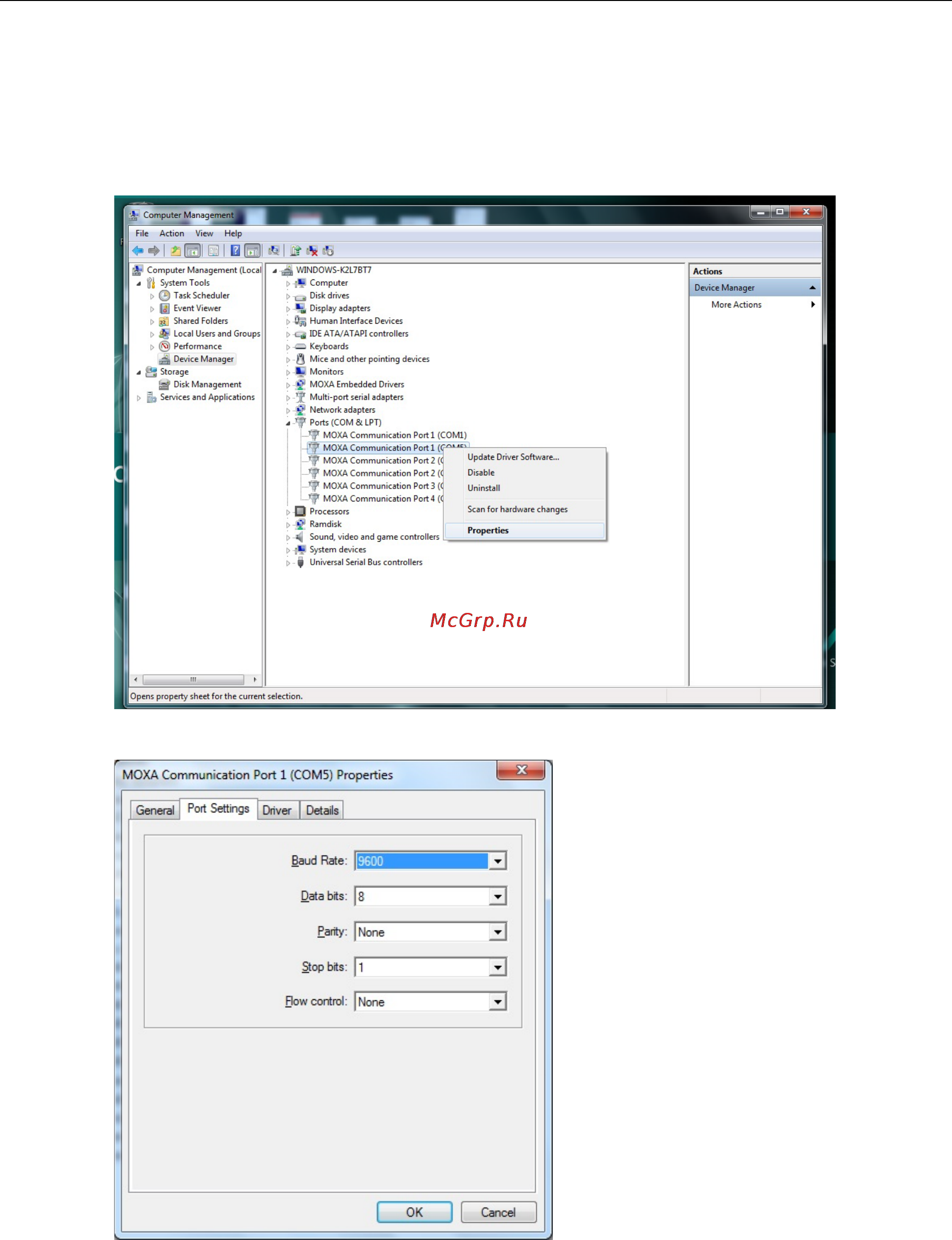

1. Go to the Control Panel Ports (COM & LPT) and select the COM port. For example, MOXA Port 1 (COM5).
2. Right-click the COM port and then click Properties.
3. Click on the Port Settings tab and specify the values of the COM port settings.
4. Click OK to apply the settings.
In some situations, you might want to change the COM port name to match the name used by your program.
Take the following steps to change the COM port names:
1. Go to Control Panel Multi-port serial adapters and select the adapter.
