V2616A W7E Series Configuring the Serial Interface
3-2
Overview
The V2616A supports the following serial modes: RS-232, RS-485-2-wire, and RS-422/485-4-wire. These
modes can be configured as either COM1 or COM2.
Configuring the Serial Interface Mode
Take the following steps to configure the serial interface mode:

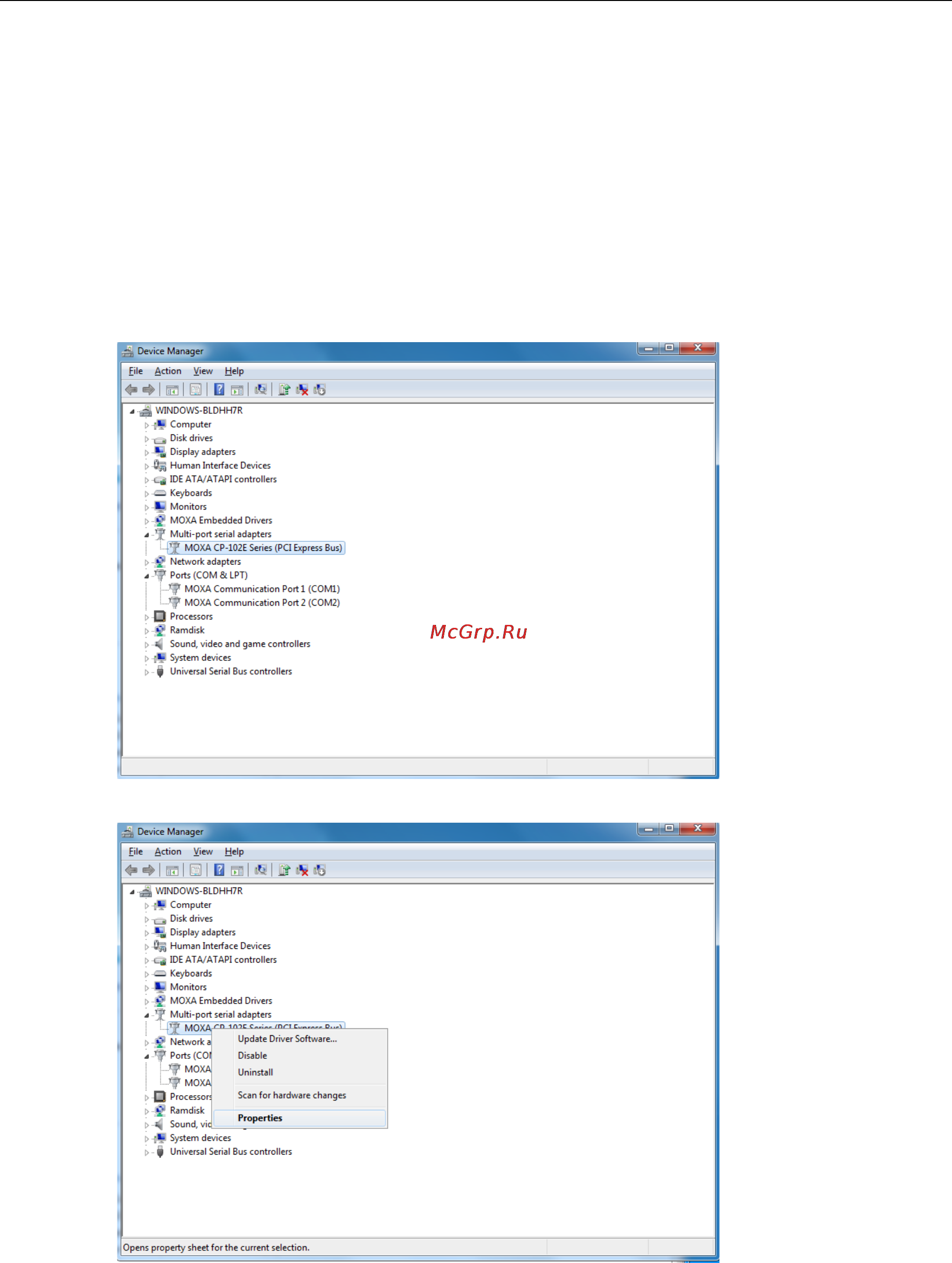

1. Open Device Manager and right-click MOXA CP-102E Series (PCI Express Bus), which is located under
Multi-port serial adapters.
2. Select Properties.
