V2616A W7E Series Moxa SynMap Package
7-34
Using HOST RESOURCE OIDs
Take the following steps to use HOST RESOURCE OIDs.

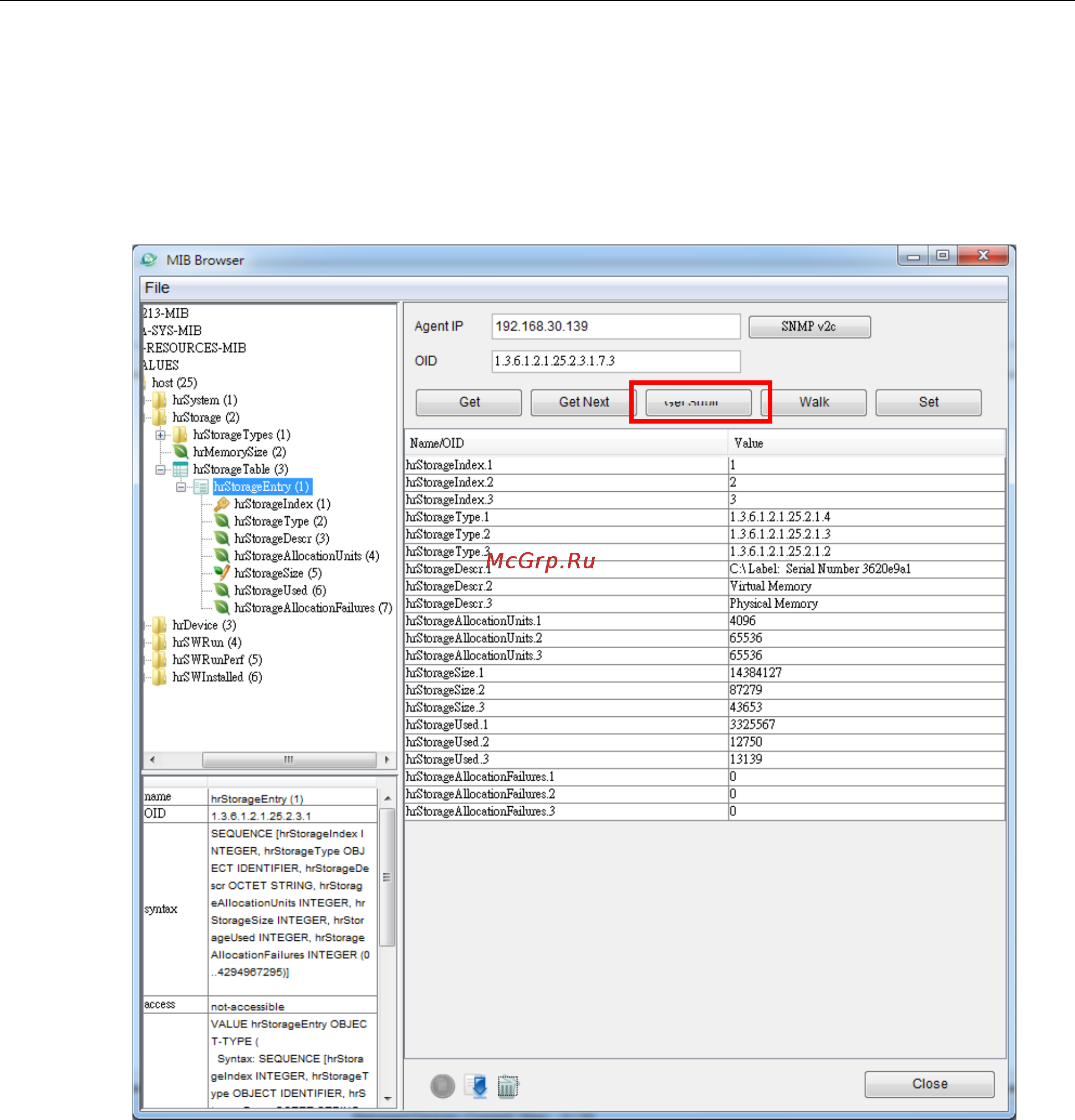

1. To check disk usage, double-click
HOST-RESOURCES-MIB\VALUES\host\hrStorage\hrStorageTable\hrStorageEntry.
2. Click the GetSubTree button and then check to make sure your MxView settings are correct.
3. Retrieve the value of hrStorageAllocationUnits.1 (e.g., 4096).
4. Retrieve the value of hrStorageSize.1 (e.g., 14384127).
5. Multiply the above two values to get the total disk size:
total disk size = hrStorageAllocationUnits x hrStorageSize = 4096 x 14384127= 58917384192 = 54.9 GB
6. To check disk usage, double-click
HOST-RESOURCES-MIB\VALUES\host\hrStorage\hrStorageSize.
