TC-6110 Linux User's Manual System Recovery
6-7
5. At this point you may choose to power down the computer (press 0), reboot (press 1), enter a console
terminal (access a console TTY -- press 2), or re-initiate the entire procedure (press 3). Do not remove
the USB drive until you have rebooted or powered down the system.
6. Once you have powered down the system and removed the USB drive, you have finished configuring the
recovery environment. The USB drive should be clearly labeled and stored in a safe place. You may now
continue to Step 6, where you will reset the BIOS to its original state, or you may go to and test the
recovery procedure for successful configuration (Step 5).

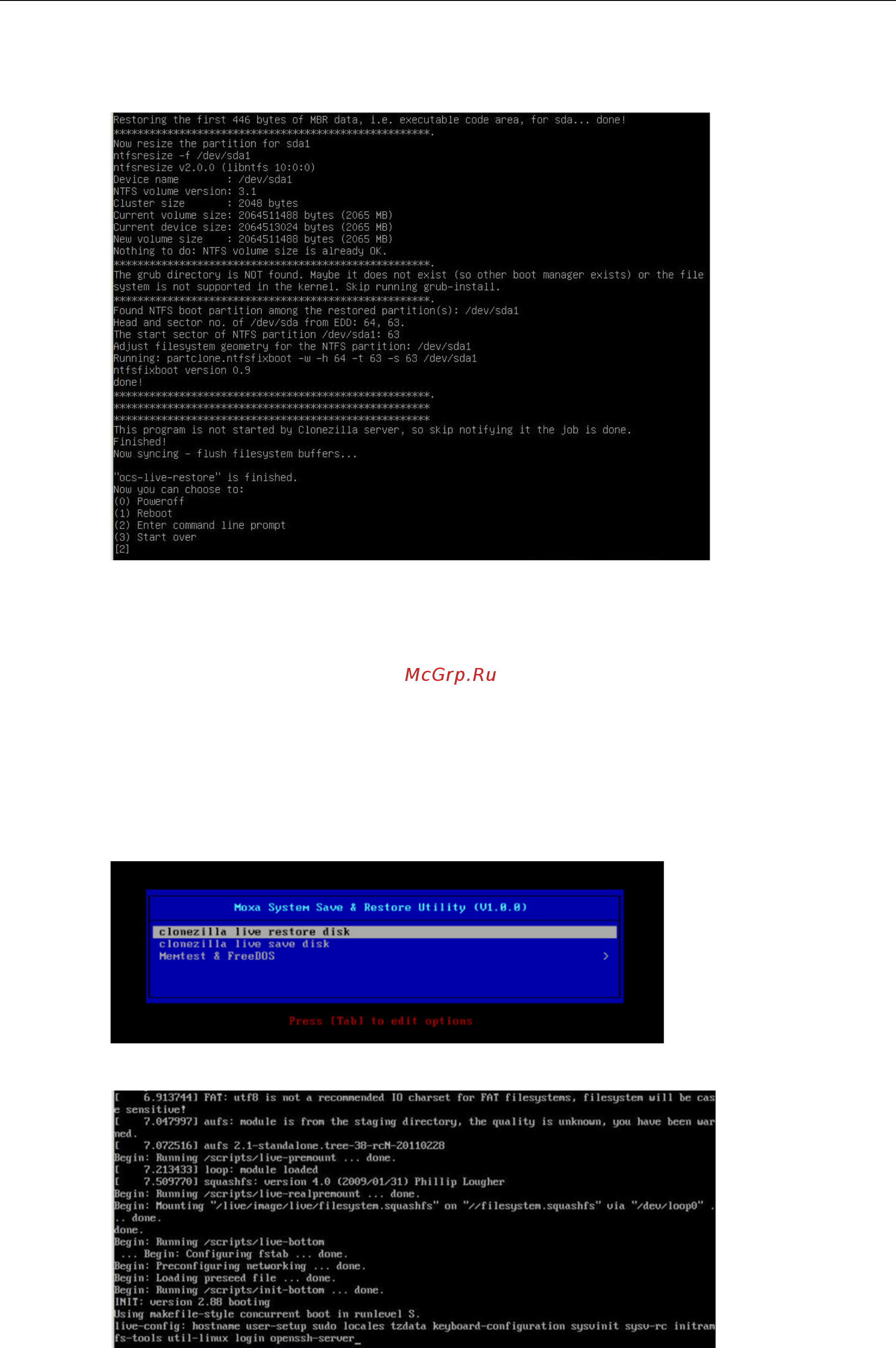

Step 5: Performing a System Recovery
Connect the USB drive to any of the DA-682A’s USB ports and then reboot the computer. The system will boot
from the USB into the Clonezilla boot loader.
3. Select Clonezilla Live Restore Disk to boot into the system restoration environment.
4. Wait for the boot process to finish.
