V2406/2422/2426 Series Software Configuration

2-5

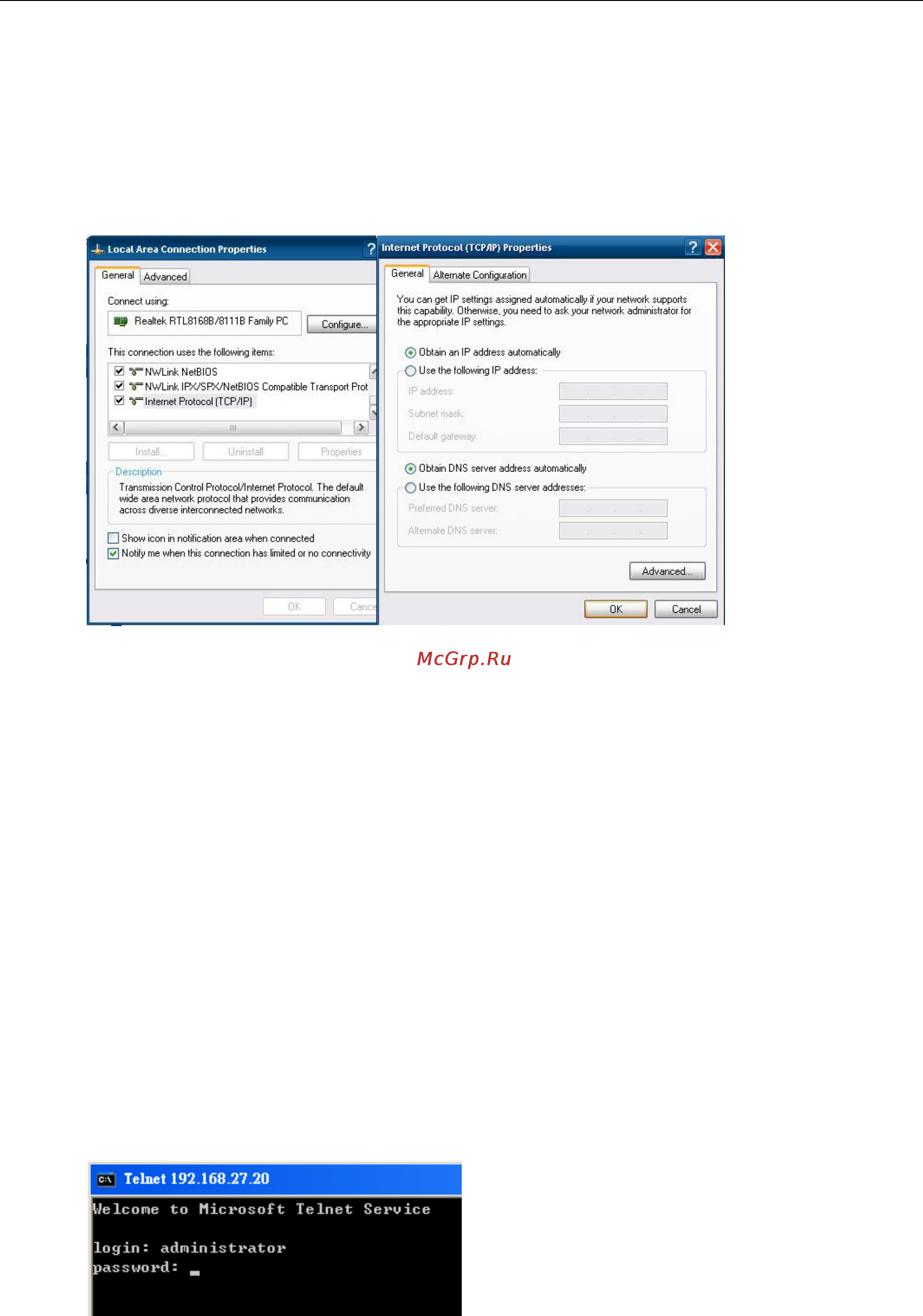

Changing the Network Settings

The V2406/2422/2426-XPE computer comes with two network interfaces. Both of the default IP addresses are

DHCP. Choose Start

 Control panel  Network Connections to enter the network settings page. Select

the connection and choose Properties on the pop-up menu by right-clicking. You can specify the IP address

manually or by DHCP. In addition, you can disable or enable either one or both connections with the pop-up

menu.

Operating Your V2406/2422/2426-XPE

Computer with a Telnet Client

Use a crossover Ethernet cable to connect your development workstation directly to the target computer, or

use a straight-through Ethernet cable to connect the computer to a LAN hub or switch. Next, use a telnet client

on your development workstation to connect to the Telnet console utility of the target computer. After a

connection has been established, type the login name and password as requested to log on to the computer.

After logging in through the Telnet client, a list of commands will be available for operating the computer. Use

HELP to display all of the commands, or type HELP [command name] to display extended help for the

selected command. Some of these commands, such as DATE and TIME, are very useful for managing the

computer’s system time. Other commands, such as DIR and MKDIR, are good utilities for file management.

For example, to inspect the file structure of the root directory, type DIR.

NOTE: The default user id is “administrator” and the default password is not set; you need to create a new

password for this account to use this telnet client.

NOTE: There is a connection limitation on using Telnet clients. You are only allowed to create

connections with two Telnet clients at the same time.
