V2406/2422/2426 Series System Recovery

4-4

Step 2: Extract Recovery Image from PC to USB disk

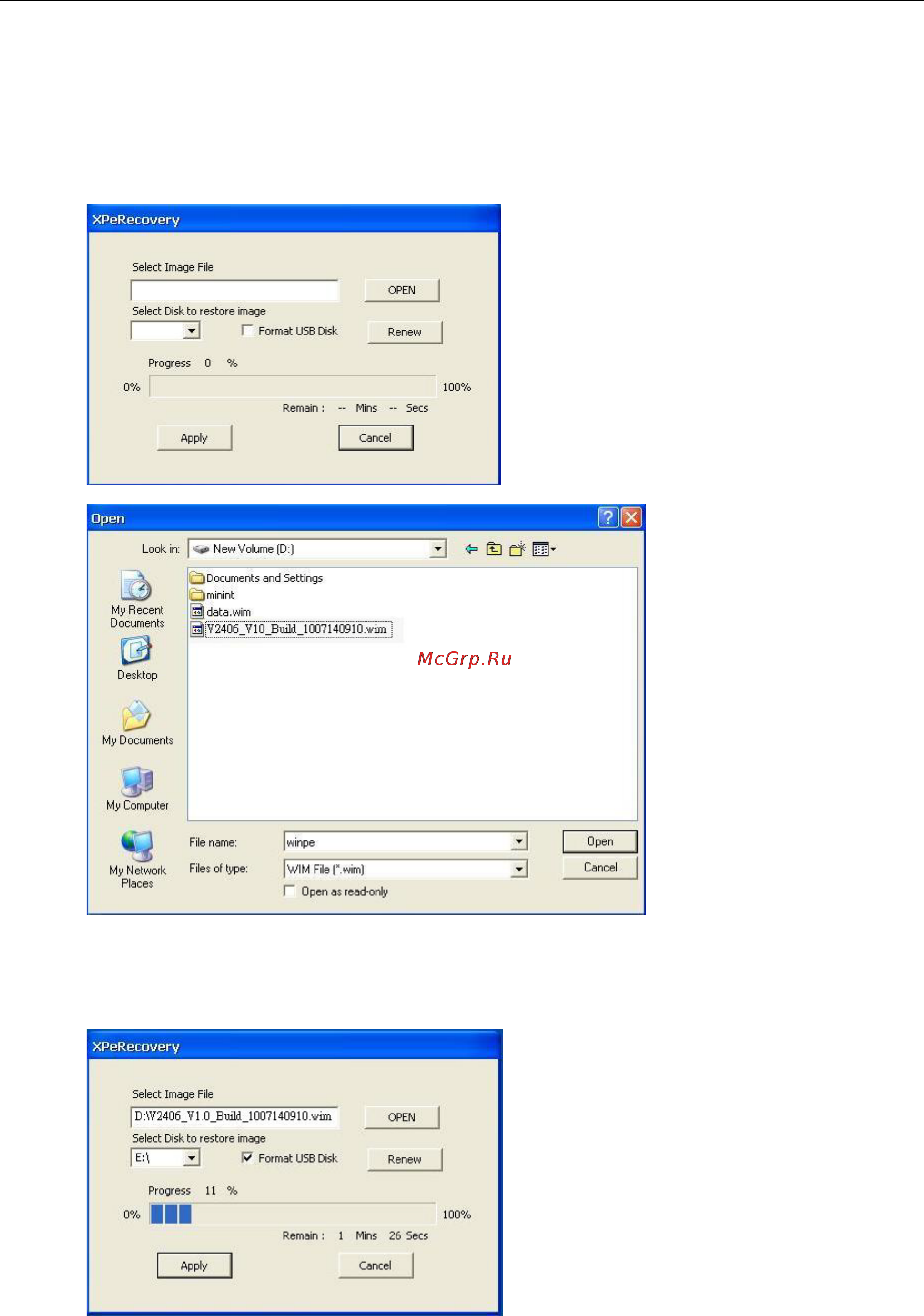

After the installation is complete, you will see the XPeRecovery shortcut on your desktop. You can start the

USB disk recovery utility by opening this shortcut. Double-click the shortcut then click OPEN to select the

image file. This file is located on the software CD in the recovery folder, and the filename is

V24xx_V1.0_Build_yymmddhh.wim. You may also copy this file to your PC. In the following example, we

have already copied the image file to the D drive of the PC.

Click the drop-down list and select your USB disk drive letter (in this example, it is the E drive), and check

Format USB Disk.

Click Apply to start the process; the utility will display the progress and time remaining
