M-Audio Lagoon [5/28] Minimum system requirements

Minimum System Requirements

• Windows 95 or 98

• Pentium 166 or higher with MMX, 200 MHz recommended.

• 32 MByte RAM, 64 MByte recommended.

What’s in the Box?

Your LAGOON box contains:

• This Instruction Manual

• The LAGOON PCI card

• 1x1 MIDI Interface Cable

• Diskettes for Windows 95/98 installation

• Midiman Warranty Registration Card

Important: Please fill out the included Warranty Registration Card

and mail or fax it to us as soon as possible. Registering your

LAGOON will help us to give you the best possible service and

support.

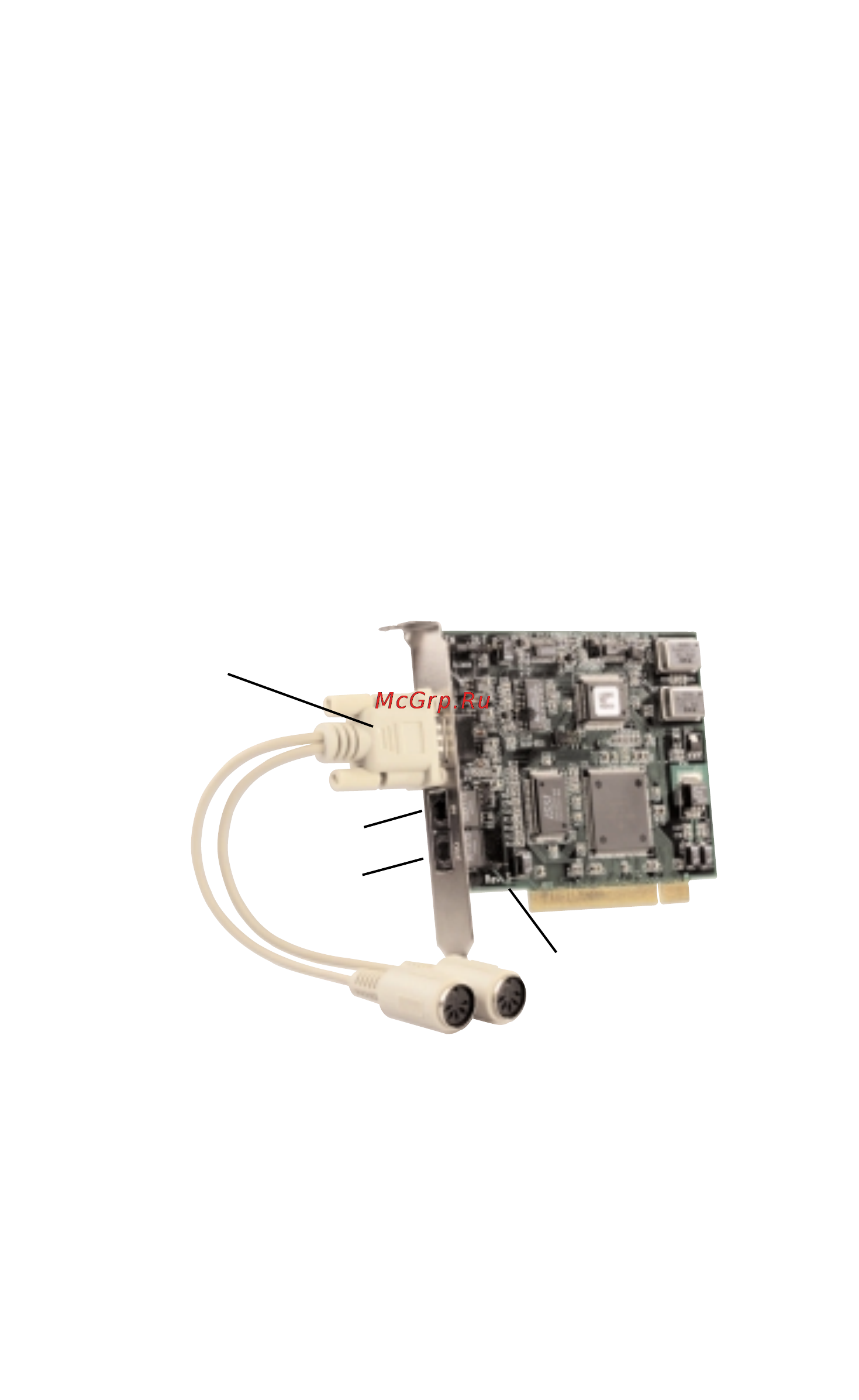

The Lagoon Card

1. ADAT Sync Input/MIDI I/O: This 9-pin DB female connector will accept the

synchronization output of an ADAT tape recorder. Switching the K9 jumper on

the Lagoon board will alter the function of this connector to a 1 in/1 out MIDI

interface (see #4 in this list). Shown here MIDI cable is attached.

2. Toslink Optical Input: This standard female Toslink input jack accepts a standard

male Toslink plug, either ADAT 8-channel format output or S/PDIF 2-channel

format output as configured in the Lagoon Tools Applet (see section, “Lagoon

Tools Applet”).
