V2416 / W7E Moxa Software Package

3-7

Configuring Hot Swap Application Settings

The default settings of disk volumes to monitor are disk “D” and disk “E”. If you want to change the setting,

follow these steps to adjust the settings.

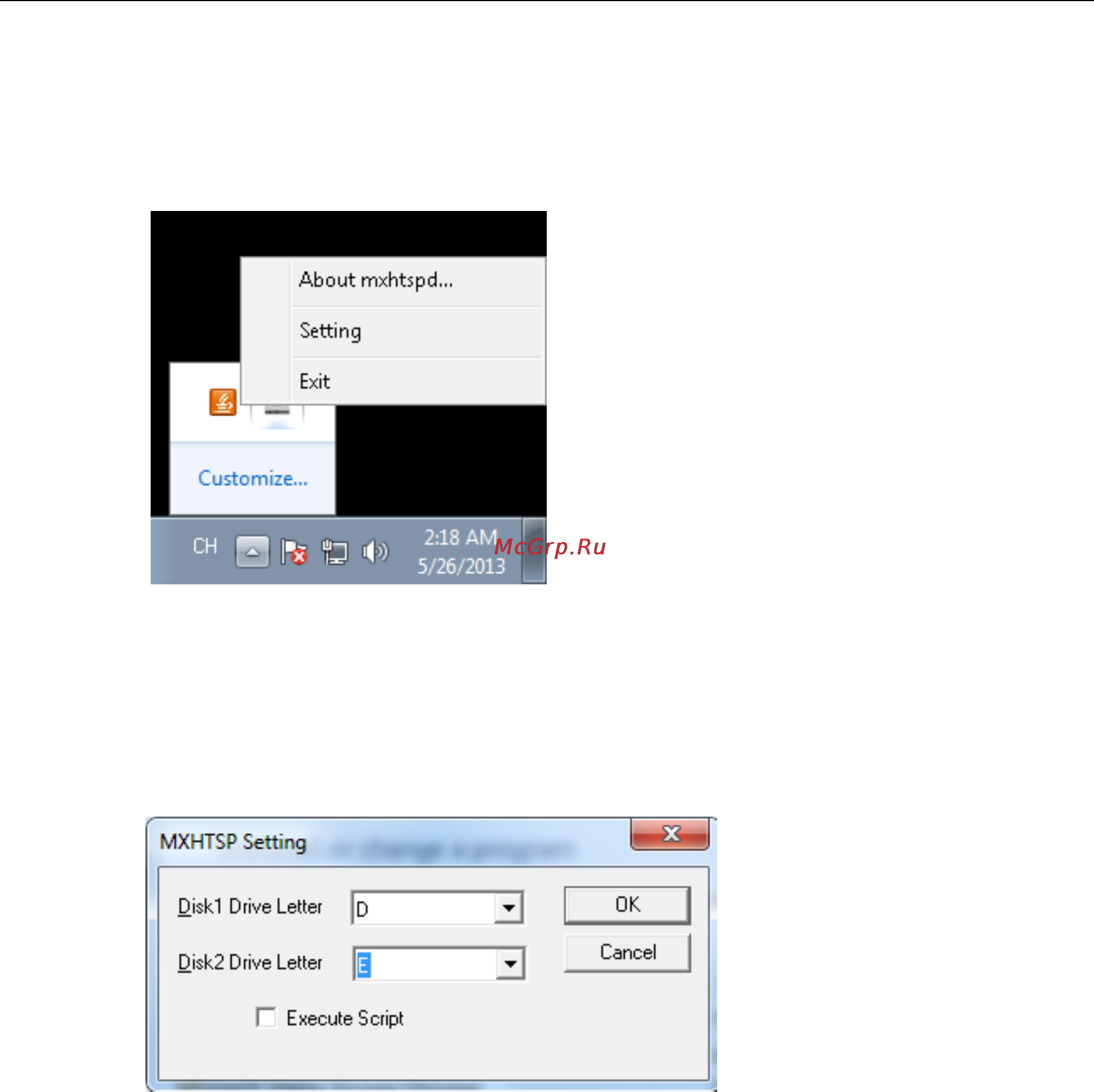

1. Right-click the mxhtspd icon at the bottom right of the screen and then selects Setting.

2. In the setting page, you can select or change the volume letter you want to monitor when you change the

volume letter. Also you can select to check the partition usage by check on the Check Partition option. By

default, the hot swap application removes the hard drive as default action when you push the X1 button on

SATA expansion module, to configure self-defined function, you need to check on Execute Script option

and then modify the script to define your own behavior.

When you change the setting, remember to click OK to save the settings.

Note: If you split the hard disk into various volumes, then you have to specify the first volume name in the

setting dialog, or the disk removal action may not function well. In addition, if you check Execute Script

and Check Partition, the script will be run (the X2 LED indicator will blink as the default action), and

partition check will be performed.
