TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-11

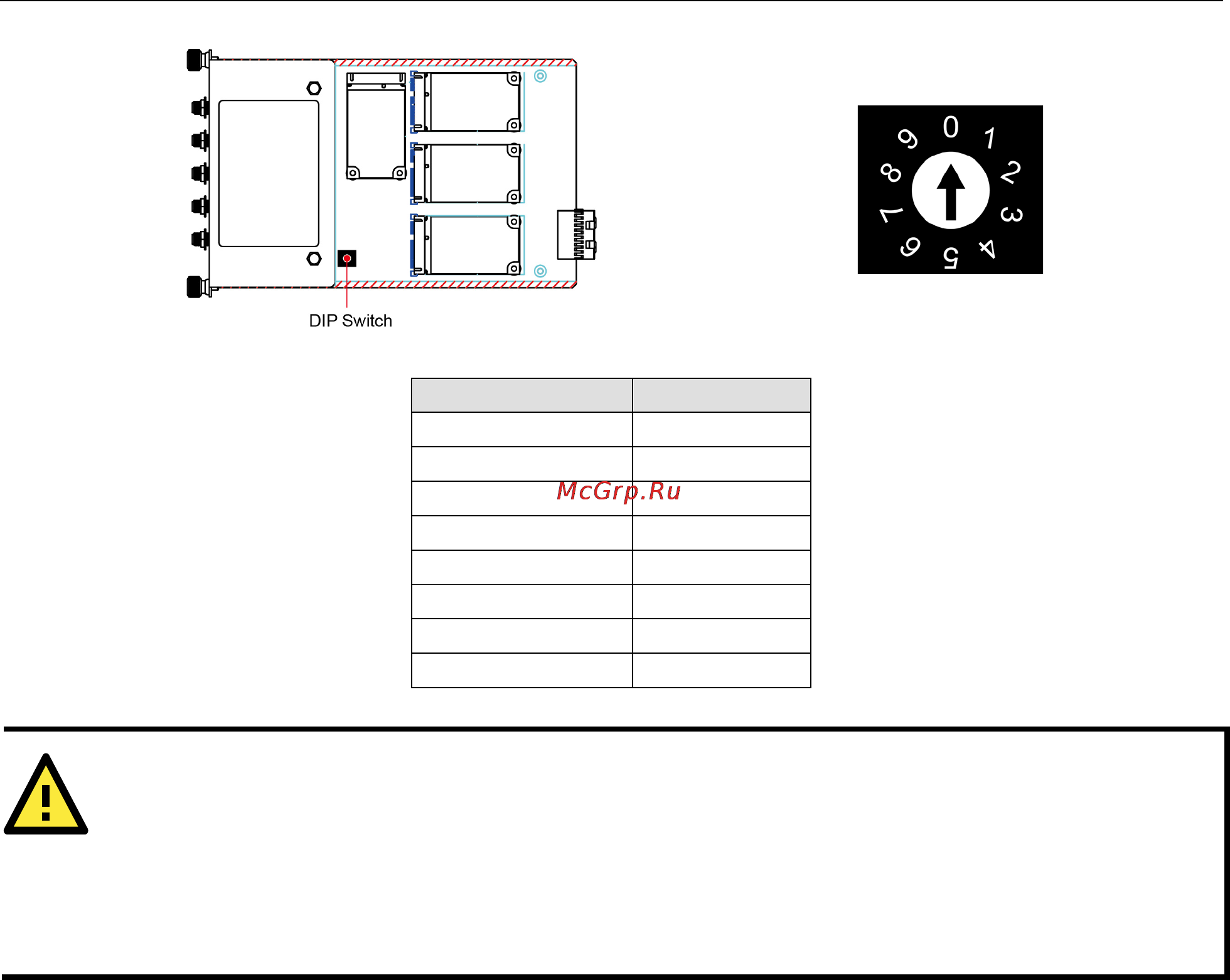

DIP Switch Value Chip Address
0 0x27
1 0x26
2 0x25
3 0x24
4
0x23
5 0x22
6 0x21
7 0x20
ATTENTION
The
mpcie-power command should not be used with the power on-
off feature with a USB DOM module. This
is because when a USB DOM module is powered on, the Linux system will automatically mount its partitions,
but when it is powered off the system cann
ot automatically unmount its partitions.
Any use of the
TC-DK10-T/TC-DK20-T’
s automated, onboard power controls with PCIe interfaces
and USB
-DOM devices is undertaken at the user’s own risk.
