TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-13

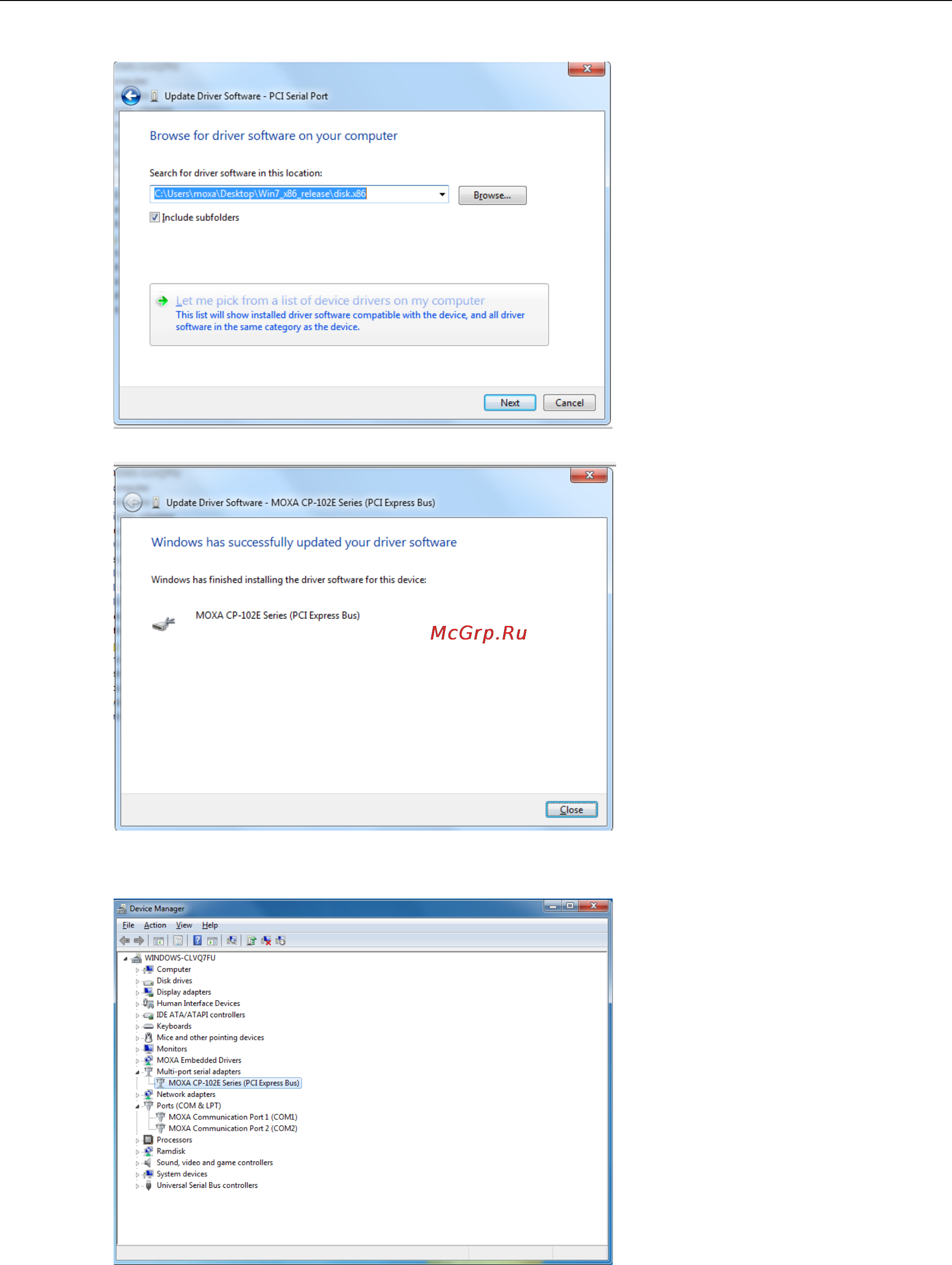

3. Click Next to start the installation.
4. Click Close to complete the installation.
5. The driver will be installed automatically. The module should be listed in the Device Manager window. At
this point you can start using the module.
TC-SP04-DB44-T: Configuring Serial Port Mode
Take the following steps to configure the properties of each COM port:
1. Go to Control Panel System and Security Device Manager Ports (COM & LPT) and select the
COM port, such as Moxa Communication Port 1 (COM7).
