MC-7270-MP-T Series BIOS Setup
4-8
IGD – Boot Type
This item allows you to select the video device that will be activated during POST.
Options: VBIOS Default (default), VGA, DVI-D2, DVI-D1

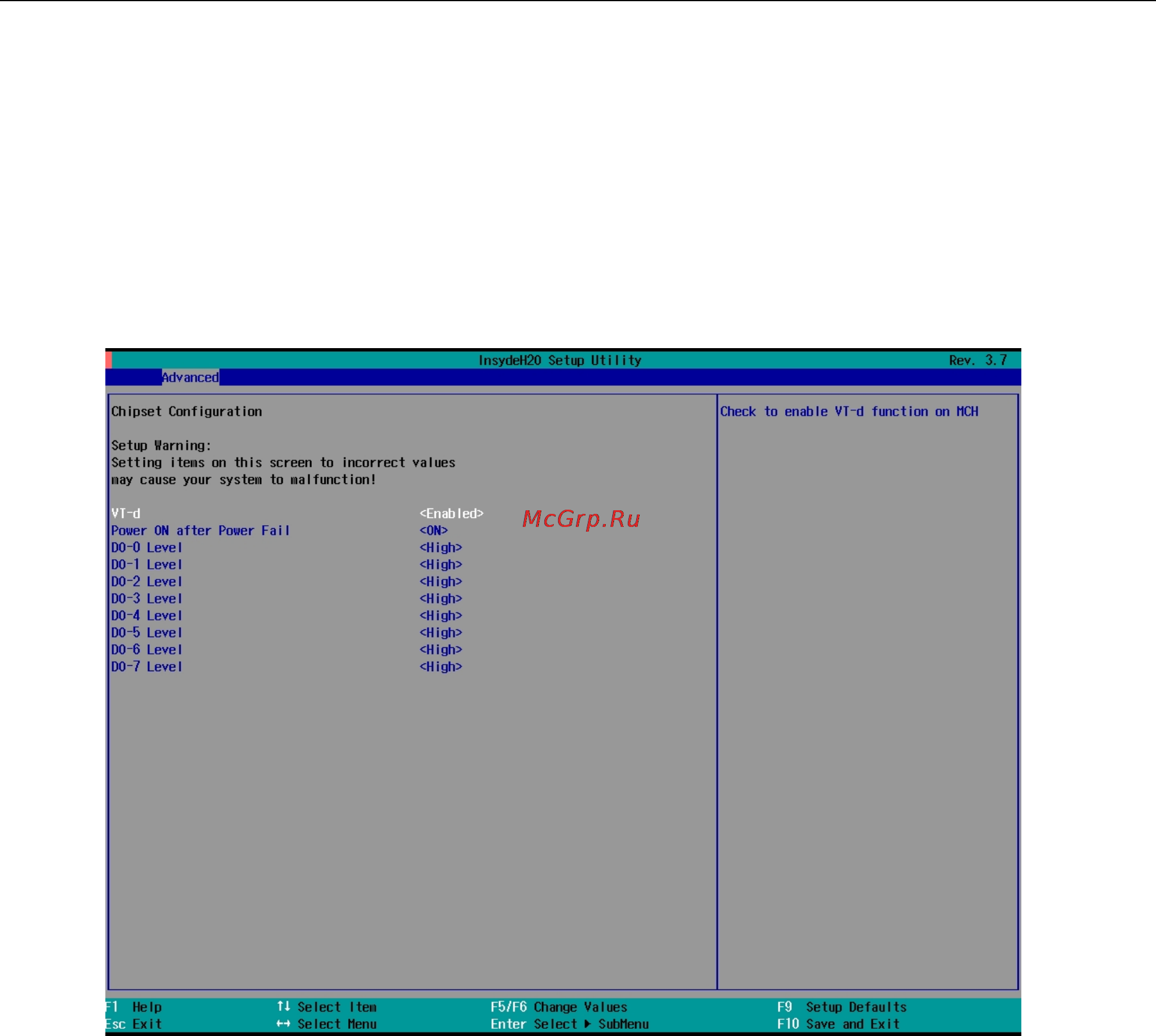

Chipset Configuration
This item allows you to configure the chipset settings.
VT-d
This item allows you to enable/disable the VT-d function.
Options: Enable (default), Disable
Power ON after Power Fail
This item allows you to enable/disable the computer form automatically powering up after a system crash.
Options: ON (default), OFF, Last State
