– 4 – – 5 – – 6 –
www.moxa.com/support
The Americas:
+1-714-528-6777 (toll-free: 1-888-669-2872)
Europe:
+49-89-3 70 03 99-0
Asia-Pacific:
+886-2-8919-1230
China:
+86-21-5258-9955 (toll-free: 800-820-5036)
2014 Moxa Inc. All rights reserved.

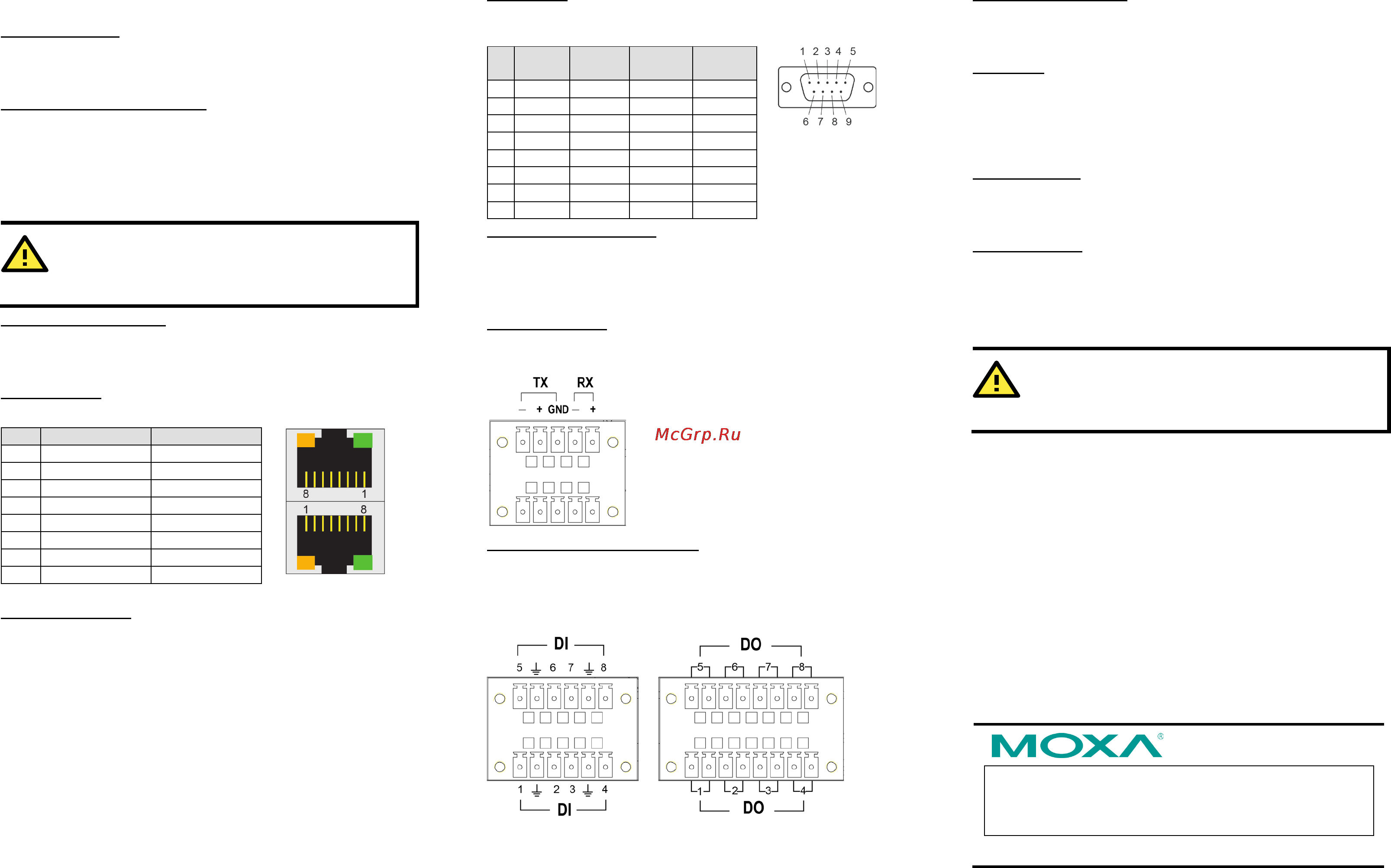

Connector Description
Power Connector
The MC-7270-MP-T comes with a 100 to 240 VAC power input, and
has another 24 VDC terminal block power input. If power is
supplied properly, the Power LED will light up.
Grounding the MC-7270-MP-T
Proper grounding and wire routing help to limit the effects of noise
from electromagnetic interference (EMI). Run the ground
connection from the ground screw to the grounding surface prior to
connecting the power. There is a ground symbol next to the
connector. Connect the EG wire to an appropriate grounded metal
surface.
ATTENTION
This product is intended to be mounted to a well
-
grounded
mounting surface, such as a metal panel.
VGA and DVI-D Outputs
For connecting display monitors, the MC-7270-MP-T comes with a
female D-sub 15-pin (DA-15) VGA interface on the rear panel, and
has an additional pair of DVI-D interfaces on the rear panel.
Ethernet Ports
The four 10/100/1000 Mbps Ethernet ports use RJ45 connectors.
Pin
1000 Mbps
1
TRD(0)+
2
TRD(0)-
3
TRD(1)+
4
TRD(2)+
5
TRD(2)-
6
TRD(1)-
7
TRD(3)+
8
TRD(3)-
PCI and PCIe Slots
The MC-7270-MP-T comes with 2 universal PCI slots (3.3/5/12 V)
that can connect to various peripheral cards, such as radar or
Profibus cards. A third generation PCIe x16 slot is also available for
connecting an additional VGA graphics card (or other peripherals).
To insert a peripheral card, remove the screws and open the
chassis cover, then remove the covering plates and insert the
peripheral card into the slot.
Serial Ports
The serial ports use DB9 connectors. COM1 and COM2 support
RS-232, and COM3 and COM4 support RS-232/422/485.
Pin
RS-232
RS-422
RS-485
(4-wire)
RS-485
(2-wire)
1
DCD
TxDA(-)
TxDA(-)
–
2
RxD
TxDB(+)
TxDB(+)
–
3
TxD
RxDB(+)
RxDB(+)
DataB(+)
4
DTR
RxDA(-)
RxDA(-)
DataA(-)
5
GND
GND
GND
GND
6
DSR
–
–
–
7
RTS
–
–
–
8
CTS
–
–
–
Removable Storage Tray
The MC-7270-MP-T computer has two removable HDD/SSD trays
on the front panel, and an internal storage drive expansion slot
inside the chassis. To provide better system safety, protection
keys are provided to lock the removable tray.
NMEA 0183 Ports
The MC-7270-MP-T comes with 8 NMEA 0183 ports on the rear
panel. See the following figure for the NMEA pin outs.
Digital Input/Output Channels
The MC-7270-MP-T comes with 8 digital input and 8 digital output
channels on the rear panel. These input/output channels can be
connected via the terminal blocks included in the package. See the
following figure for the pin assignments.
Power ON/OFF Switch
The MC-7270-MP-T comes with a power ON/OFF switch on the
front panel. Users can boot up the computer by the 2-pin terminal
block on the power ON/OFF switch.
USB Hosts
The MC-7270-MP-T has six USB 2.0 and two SuperSpeed USB 3.0
type A ports, respectively, supported by EHCI and xHCI for full
high speed bandwidth. The USB ports support peripherals like
keyboards, mice, and other devices such as portable HDDs or
DVD-ROMs.
Audio Interface
The MC-7270-MP-T comes with an audio line-in, an audio line-out,
and a microphone input, allowing users to connect a speaker
system, an earphone, or a microphone.
Real Time Clock
The MC-7270-MP-T’s real time clock (RTC) is powered by a lithium
battery. We strongly recommend that you do not replace the
lithium battery without help from a qualified Moxa support
engineer. If you need to change the battery, contact the Moxa RMA
service team at http://www.moxa.com/rma/about_rma.aspx.
ATTENTION
There is a risk of explosion if the battery is replaced with an
incorrect type of battery.
Powering on the MC-7270-MP-T
To power on the MC-7270-MP-T, you may connect a 24 VDC power
source to the MC-7270-MP-T’s DC terminal block (located on the
rear panel), or plug in the AC power cord. It takes about 30
seconds for the system to boot up. Once the system is ready, the
Power LED will light up.
