MPC-2190 Hardware BIOS Setup
5-8

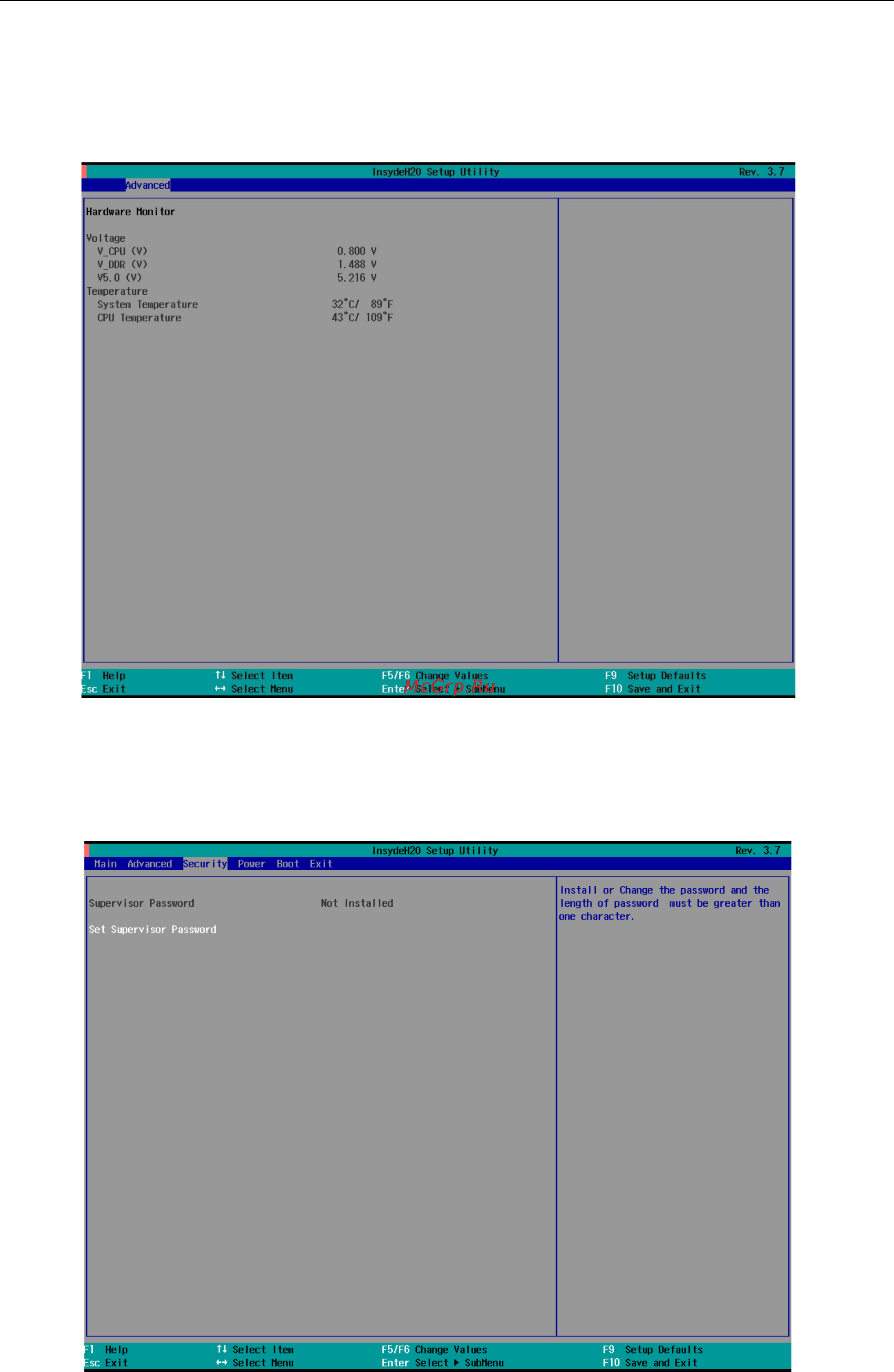

Hardware Monitor
This item allows you to view stats like CPU and system temperature, voltage levels, and other chipset
information.
Security Settings
This section allows users to configure security settings with a supervisor password and user password.
