MPC-2190 Hardware Hardware Connection Description

3-8

shutdown mode, depending on the power management settings you have set in your operating system. If a

hard shutdown is required because of technical problems, press and hold the Menu button for 10 seconds to

forcibly power off the system.

Brightness

Two brightness buttons are available for brightness control. Press the + button to increase the brightness of the

panel, and the – button to decrease the brightness.

INFO

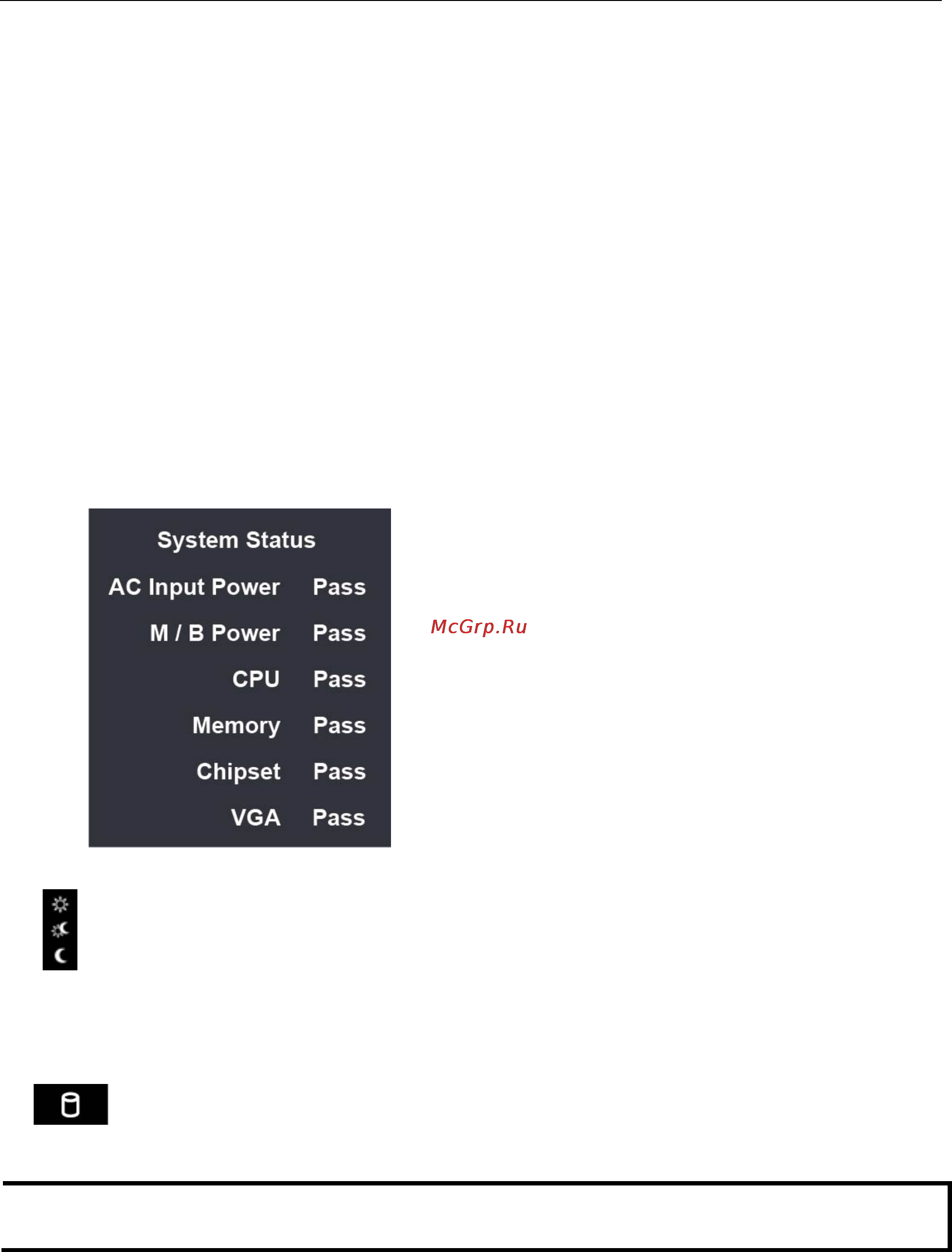

The INFO button returns the current system status for various components, such as power for AC input and

main board, CPU, memory, chipset and VGA output. Pass will indicate that the subsystem is working well. An

error message will be shown when the system is not working. CPU, memory, chipset and VGA output will be

detected only at the bootup stage; any changes or failures that occur after that will not be registered by the

system. The AC power and mainboard power (Main Board Power) options will be continuously detected, even

after the computer has been booted up.

ECDIS

Touch the button to switch between DAY, DUSK, and NIGHT display modes.

Upon touching the ECDIS button, the brightness configuration will be overwritten to day, dusk, or night modes.

(Storage)

A storage icon can also be found on the panel. When data access occurs, it will display a blinking red status.

NOTE The display of the MPC-2190 can also be controlled with a series of commands. For a list of the available

commands and their uses, refer to Appendix B: Display Control Interface Commands for details

Extending the Displays

The MPC-2190 comes with both standard VGA (DB15) and DVI-D (DB24) interfaces on the bottom surface.

They may be used simultaneously to extend the display across two monitors. See the following figures and

tables for the location and pin assignments for the display outputs.
