Moxa MD-124X [2/3] Specifications
![Moxa MD-124X [2/3] Specifications](/views2/1200637/page2/bg2.png)
2
www.moxa.com
Marine Displays and Computers

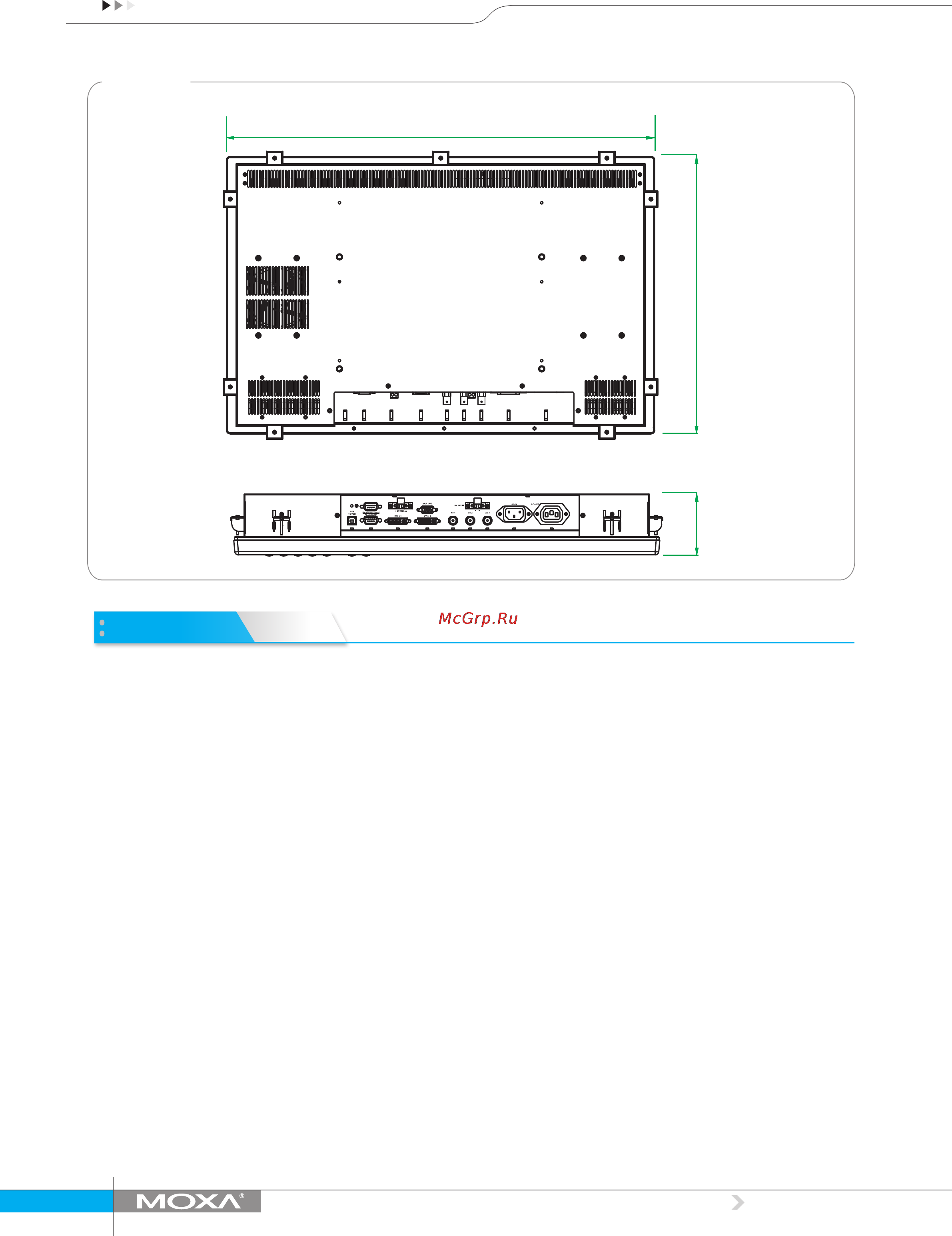

Dimensions
Unit: mm (inch)
384 (15.12)
593 (23.35)
85 (3.35)
Specifications
Display
Panel Size: 24’’ wide viewable image size
Panel Type: MVA
Aspect Ratio: 16:9
Pixels: 1920 x 1080 (WSXGA+)
Pixel Pitch (RGB): 0.282 (H) x 0.282 (V) mm
Response Time: 8 ms (gray to gray)
Contrast Ratio: 5000:1
Light Intensity: 300 cd/m^2
Viewing Angles: 178° x 178°
Active Display Area: 531.36 (H) x 298.89 (V) mm
Max Colors: 16.7M (8 bits/color)
Display Interface: VGA x 1, DVI-I x 2, BNC composite x 3
Resolution:
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024
• WSXGA+: 1920 x 1080 (optimal setting)
Serial Interface
Serial Standards: 1 RS-232/422/485 ports, software-selectable (DB9
male)
Serial Signals
RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Front Panel
Panel Control Buttons: 1 Power, 4 OSD controls
LEDs: Status, Power
Physical Characteristics
Housing: Aluminum sheet metal
Weight: 12 kg
Dimensions: 95 x 647 x 414 mm (3.74 x 25.47 x 16.30 in)
Mounting: Console mounting
Environmental Limits
Operating Temperature: -15 to 55°C (5 to 131°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-Vibration:
• IEC 60945
• DNV 2.4, Class A/Class C
Power Requirements
Input Voltage:
• 24 VDC (with tolerance from 18 to 36 VDC, 2-pin terminal block)
• 110 to 230 VAC, 50/60 Hz
Power Consumption: 75 W (standard) to 90 W (full-loading)
• 6.21 A @ 18 VDC
• 4.55 A @ 24 VDC
• 2.95 A @ 36 VDC
Standards and Certifications
Safety: UL 60950-1, CCC (Pending)
EMC: EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4,
FCC Part 15 Subpart B Class A
Green Product: RoHS, cRoHS, WEEE
Warranty
Warranty Period: 1 year
Details: See www.moxa.com/warranty
