DIN Rail Mounting (ISD-1200-T Series only)

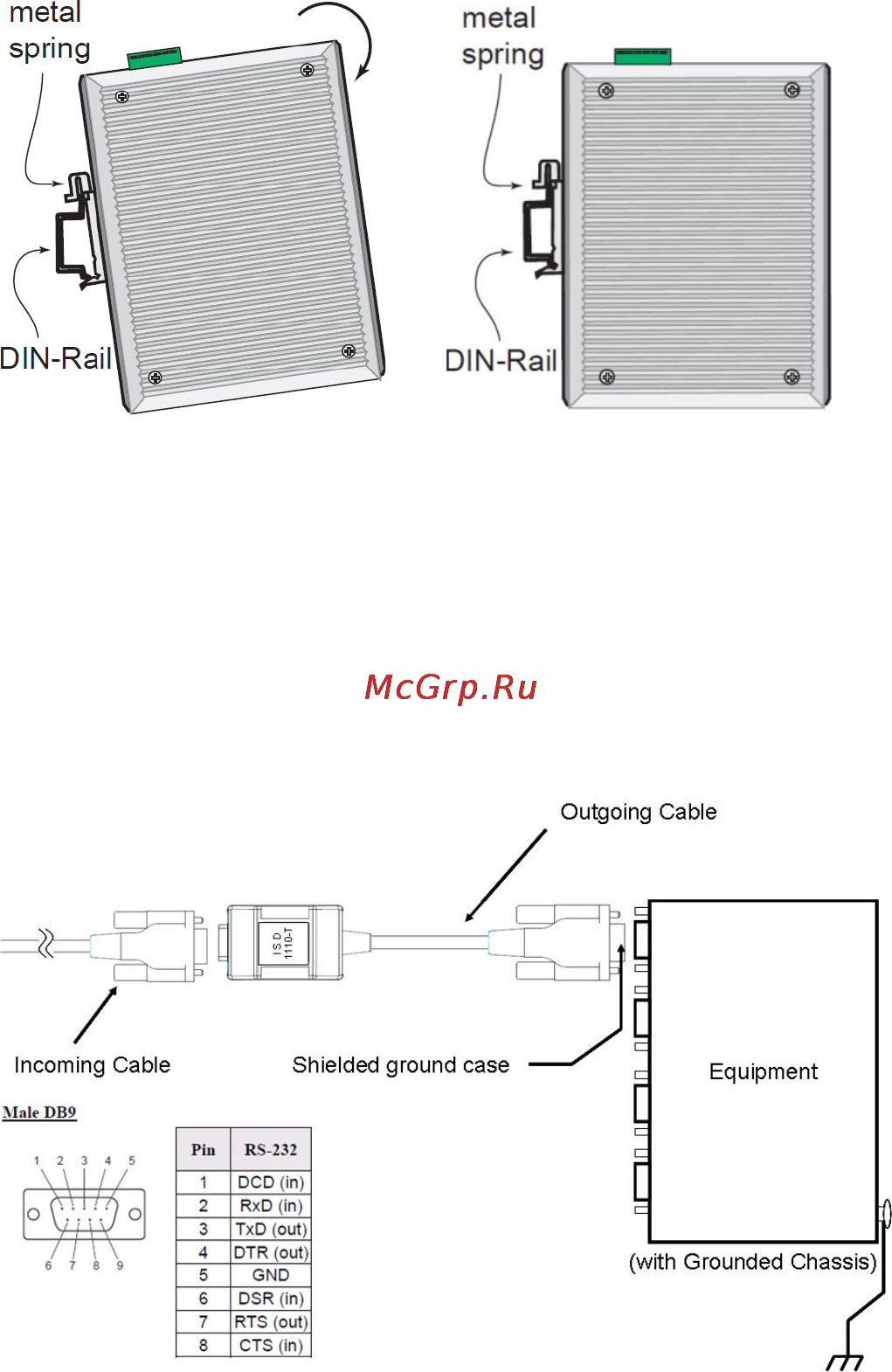

The aluminum DIN rail attachment plate should be fixed to the back panel

of the ISD when you take it out of the box. If you need to reattach the DIN

rail attachment plate to the ISD, make sure the stiff metal spring is

situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN rail into

the slot just

below the stiff metal

spring.

STEP 2:

The DIN rail attachment unit will

snap into place as shown below.

To remove the ISD from the DIN rail, simply reverse Steps 1 and 2 above.

Installation

Installation instructions are given below for each ISD model.

ISD-1110-T

1. Connect the incoming cable to the ISD surge protector.

2. Connect the outgoing cable to the external device.

3. Power on the external device or equipment.
