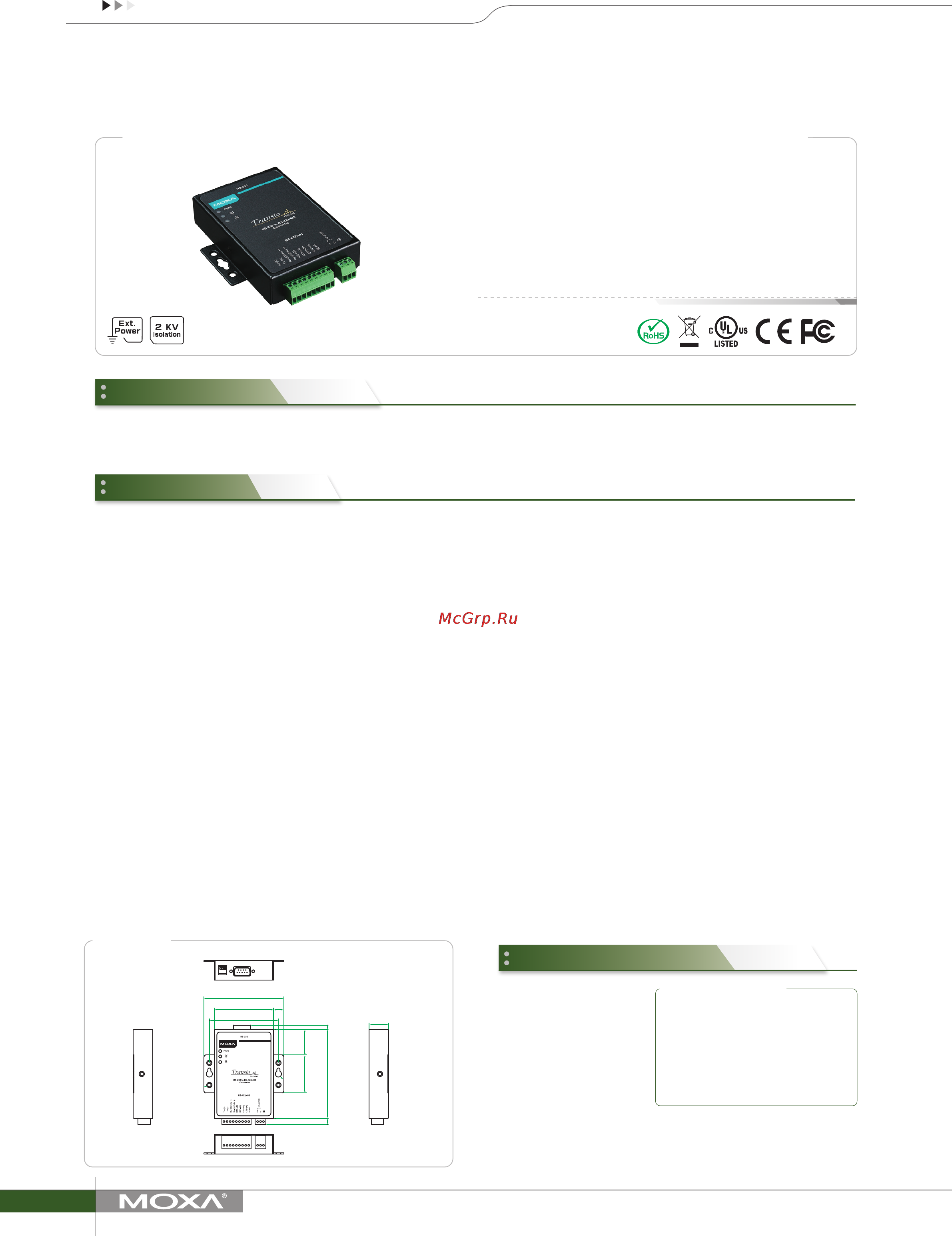

Serial Media Converters

Introduction

Speciﬁcations

TCC-100/100I Series

Industrial RS-232 to RS-422/485 converters with optional 2 kV isolation

The TCC-100/100I series RS-232 to RS-422/485 converters increase

networking capability by extending the RS-232 transmission distance.

Both converters have a superior industrial-grade design that includes

DIN-rail mounting, terminal block wiring, an external terminal block for

power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-

100/100I series converters are ideal solutions for converting RS-232

signals to RS-422/485 in critical industrial environments.

Ordering Information

› RS-232 to RS-422 conversion with RTS/CTS support

› RS-232 to 2-wire or 4-wire RS-485 conversion

› 2 kV isolation protection (TCC-100I)

› Wall- and DIN-rail mounting

› Plug-in terminal block for easy RS-422/485 wiring

› LED indicators for power, Tx, Rx

› Wide temperature range model available (-40 to 85°C)

Available Models

TCC-100: RS-232 to

RS-422/485 converter, -20 to

60°C operating temperature

TCC-100I: RS-232 to

RS-422/485 converter with

optical isolation, -20 to 60°C

operating temperature

TCC-100-T: RS-232 to

RS-422/485 converter, -40 to 85°C operating temperature

TCC-100I-T: RS-232 to RS-422/485 converter with optical isolation,

-40 to 85°C operating temperature

RS-232 Side

Connector: DB9 female

Signals: TxD, RxD, RTS, CTS, GND

RS-422/485 Side

Connector: Terminal Block

Signals:

(interface selected by DIP switch)

RS-422: TxD+, TxD-, RxD+, RxD-, RTS, CTS, GND

RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND

RS-485-2w: Data+, Data-, GND

RS-485 Data Direction Control: ADDC® (Automatic Data Direction

Control)

Serial Communication

Baudrate: 50 bps to 921.6 kbps

Optical Isolation: 2 kV (TCC-100I/100I-T)

Physical Characteristics

Housing: Metal

Dimensions: 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)

Weight: 148 g (0.33 lb)

Environmental Limits

Operating Temperature:

Standard Models: -20 to 60°C (-4 to 140°F)

Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

Source of Input Power: Power input jack

Input Voltage: 12 to 48 VDC

Input Current:

TCC-100/100-T: 85 mA @ 12 VDC

TCC-100I/100I-T: 150 mA @ 12 VDC

Voltage Reversal Protection: Protects against V+/V- reversal

Overcurrent Protection: Protects against two signals shorted together

Standards and Certiﬁcations

Safety: UL 60950-1

EMC: EN 55022/24

EMI: CISPR 22, FCC Part 15B Class B

EMS:

EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV

EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m

EN 61000-4-4 (EFT): Power: 1 kV; Signal: 0.5 kV

EN 61000-4-5 (Surge): Power: 1 kV

EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m

EN 61000-4-8 (PFMF)

Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 3,017,857 hrs

Standard: MIL-HDBK-217F

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty

Dimensions

Unit: mm (inch)

Package Checklist

• 1 TCC-100/100I media converter

• Power wiring: CBL-PJTB-10

• Mounting kit: DK35A

• Quick installation guide (printed)

• Warranty card

• Rubber pad

Ø4 (Ø0.16)

90 (3.54)

100.4 (3.95)

11.5 (0.45)

28.7

(1.13)

67 (2.64)

43 (1.69)

Ø7 (Ø0.28)

22 (0.87)

5 (0.20)7 (0.28)

78 (3.07)
