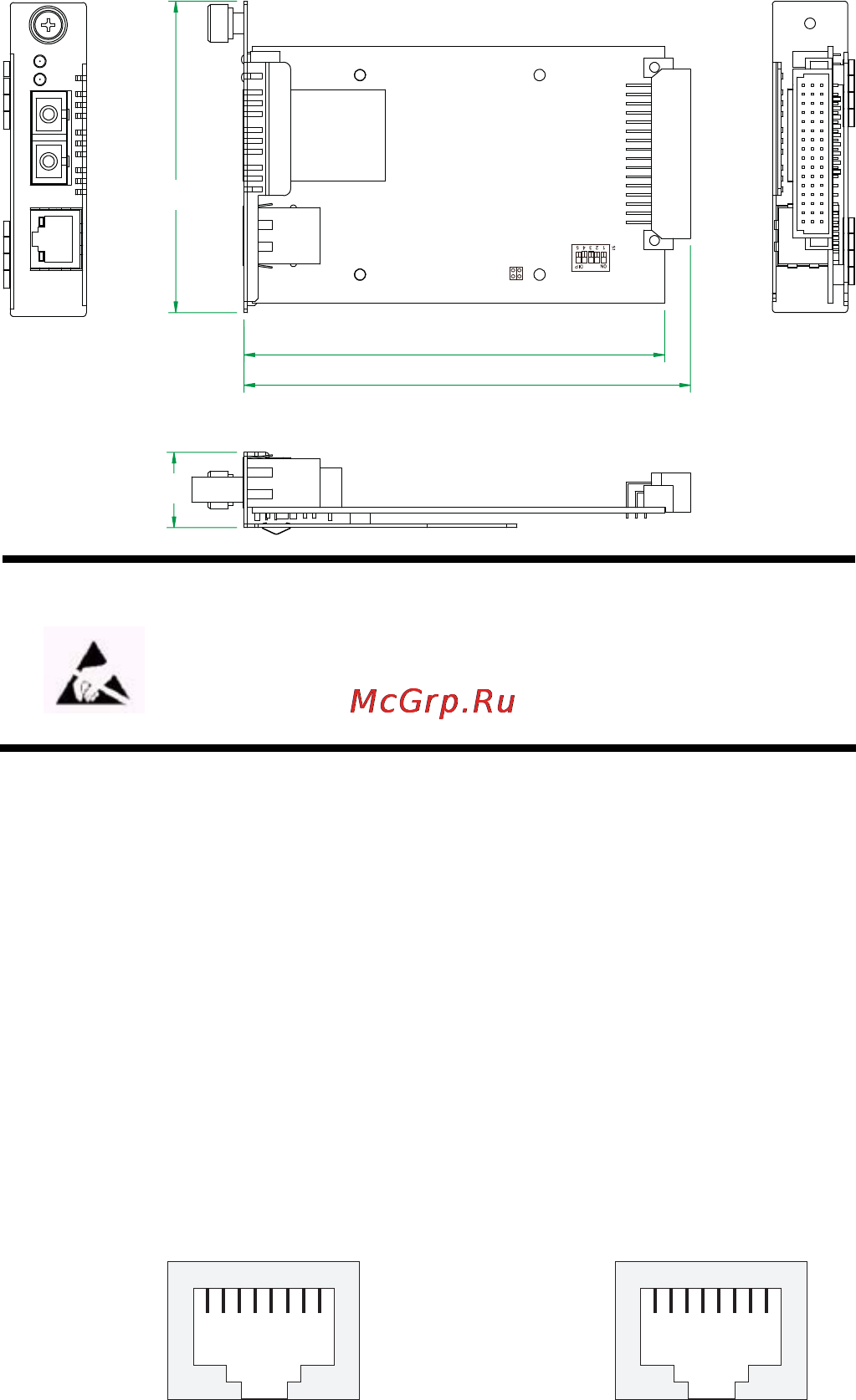

![Moxa CSM-200-1213 [4/9] Csm 200 1214 csm 200 1218](/views2/1200776/page4/bg4.png)
- 4 -
CSM-200-1214/CSM-200-1218
117.1 mm (4.61 in)
124.3 mm (4.89 in)
86.8 mm
(3.42 in)
21 mm
(0.83 in)
PWR
Fiber
Link
TX
10M
100M
RX
ATTENTION
Electrostatic Discharge Warning!
To protect the product from damage due to electrostatic
discharge, we recommend wearing a grounding device when
handling your CSM-200 slide-in modules.
Communication Connections
The CSM-200 Series has one 10/100BaseT(X) Ethernet port, and one
100BaseFX (SC or ST type connector) fiber port.
10/100BaseT(X) Ethernet Port Connection
The 10/100BaseT(X) Ethernet ports located on CSM-200 are used to connect
to Ethernet-enabled devices.
Below we show pinouts for both MDI (NIC-type) ports and MDI-X
(HUB/Switch-type) ports, and also show cable wiring diagrams for
straight-through and cross-over Ethernet cables.
RJ45 (8-pin, MDI) Port Pinouts RJ45 (8-pin, MDI-X) Port Pinouts
1
8
Pin Signal
1
2
3
6
Tx+
Tx-
Rx+
Rx-
1
8
Pin Signal
1
2
3
6
Rx+
Rx-
Tx+
Tx-
