Installation and Connection The Imager Head and Cable Installation

3. Installation and Connection

3.1 The Imager Head and Cable Installation

To use the tool, the imager head and cable must be connected to the

display unit. To connect the cable to the display unit, make sure the

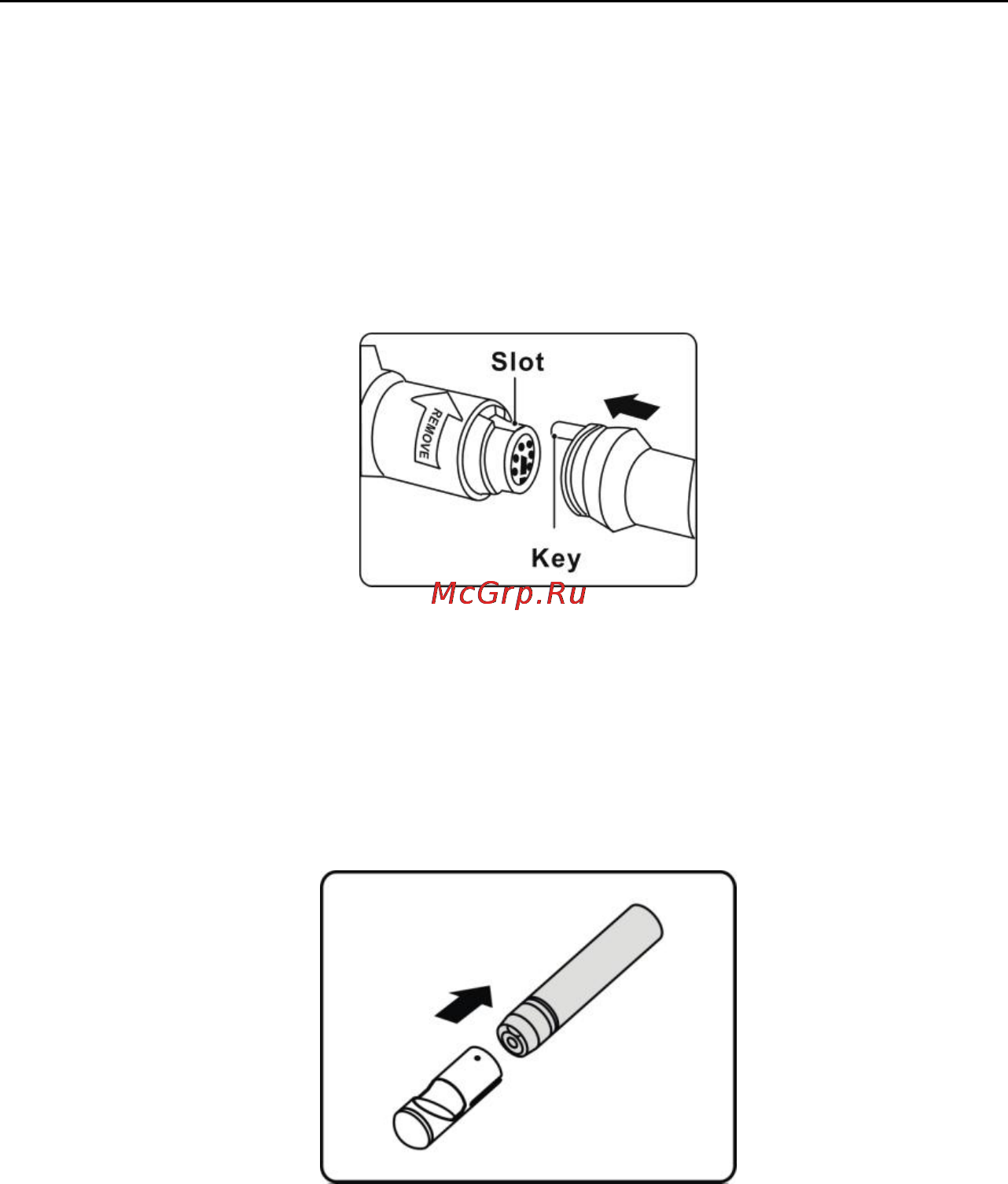

key and slot (Fig. 4) are properly aligned. Once they are aligned,

finger-tighten the knurled knob to hold the connection firmly in place.

Fig. 4

3.2 Accessories Installation

The three accessories include magnet, hook and mirror (Fig. 2). All are

attached to the imager head in the same manner. Hold the accessory

and the imager head as shown in Fig. 5.

Fig. 5

Slip the end of the accessory over the tip of the imager head to fix the

accessory as shown in Fig. 6.
