5

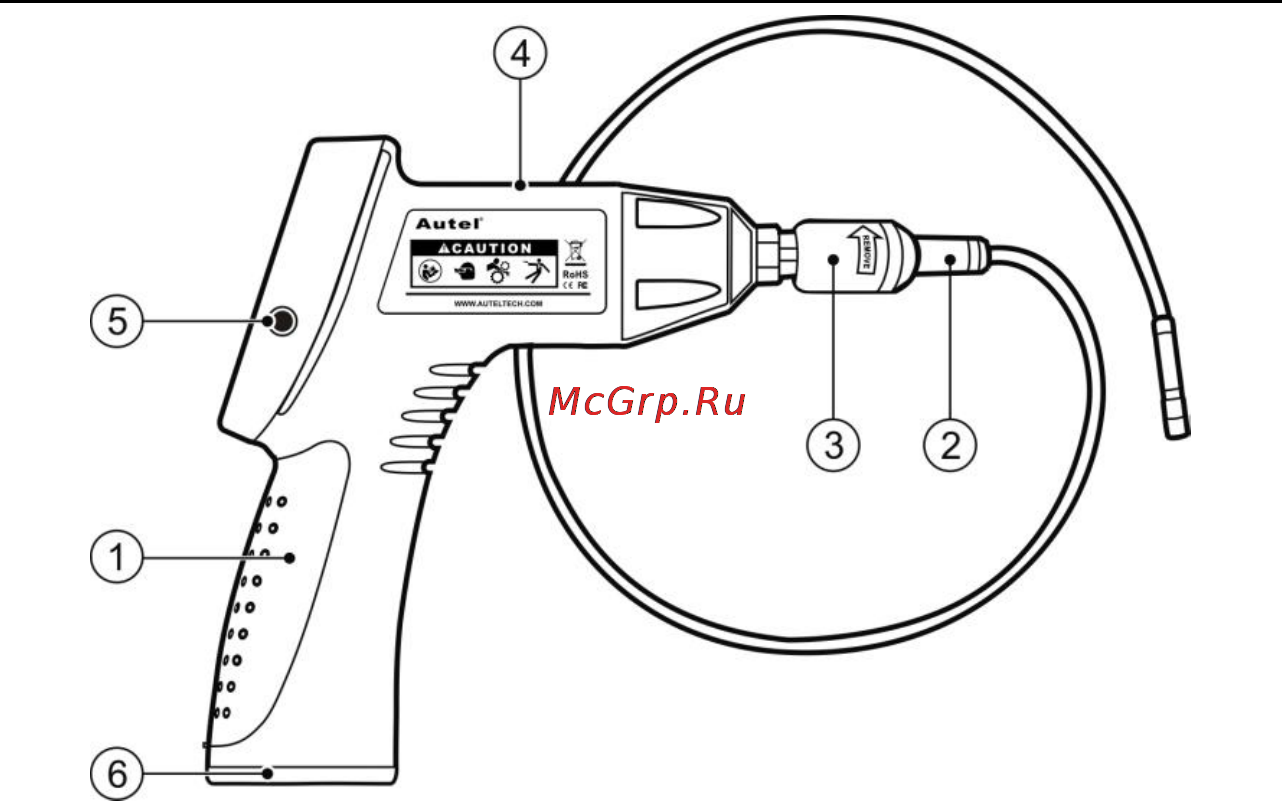

Fig. 1
1) Handheld Display Unit – The ergonomic tool with comfortable
pistol grip design.
2) Imager Head and Cable – Connects to the tool while in use to
view images and videos.
3) Cable Connector – Connects the handheld display unit to the
imager head and cable.
4) Power Indicator Light – Illuminates green once turning the tool
on.
5) Video-out Port – Connects the tool to a TV with the supplied
video-out cable to view the real-time image.
6) Battery Compartment Cap– Indicates to install or remove
batteries
