2.5 Buttons and Controls

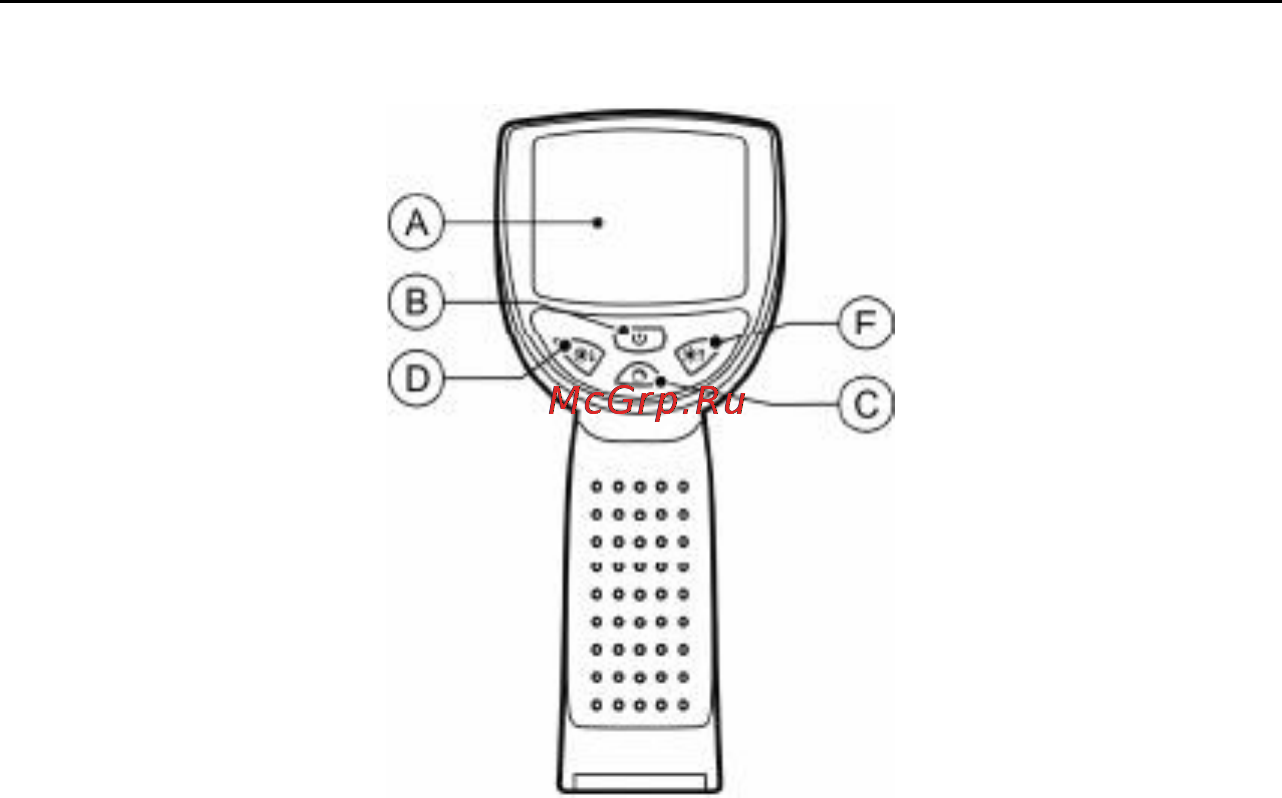

Fig. 5
A. LCD Screen –Indicates test results. Backlit, 234 x 160 pixels
display with LED lighting adjustment.
B. Power Button – Turns on/off the tool.
C. Reverse Button – Controls the direction of the real-time image
D. DOWN Arrow LED Lighting Adjusting Button –Adjusts dim
LED lighting.
E. UP Arrow LED Lighting Adjusting Button –Adjusts bright LED
lighting.
