ioLogik E1500 Series Active OPC Server Utility
5-7

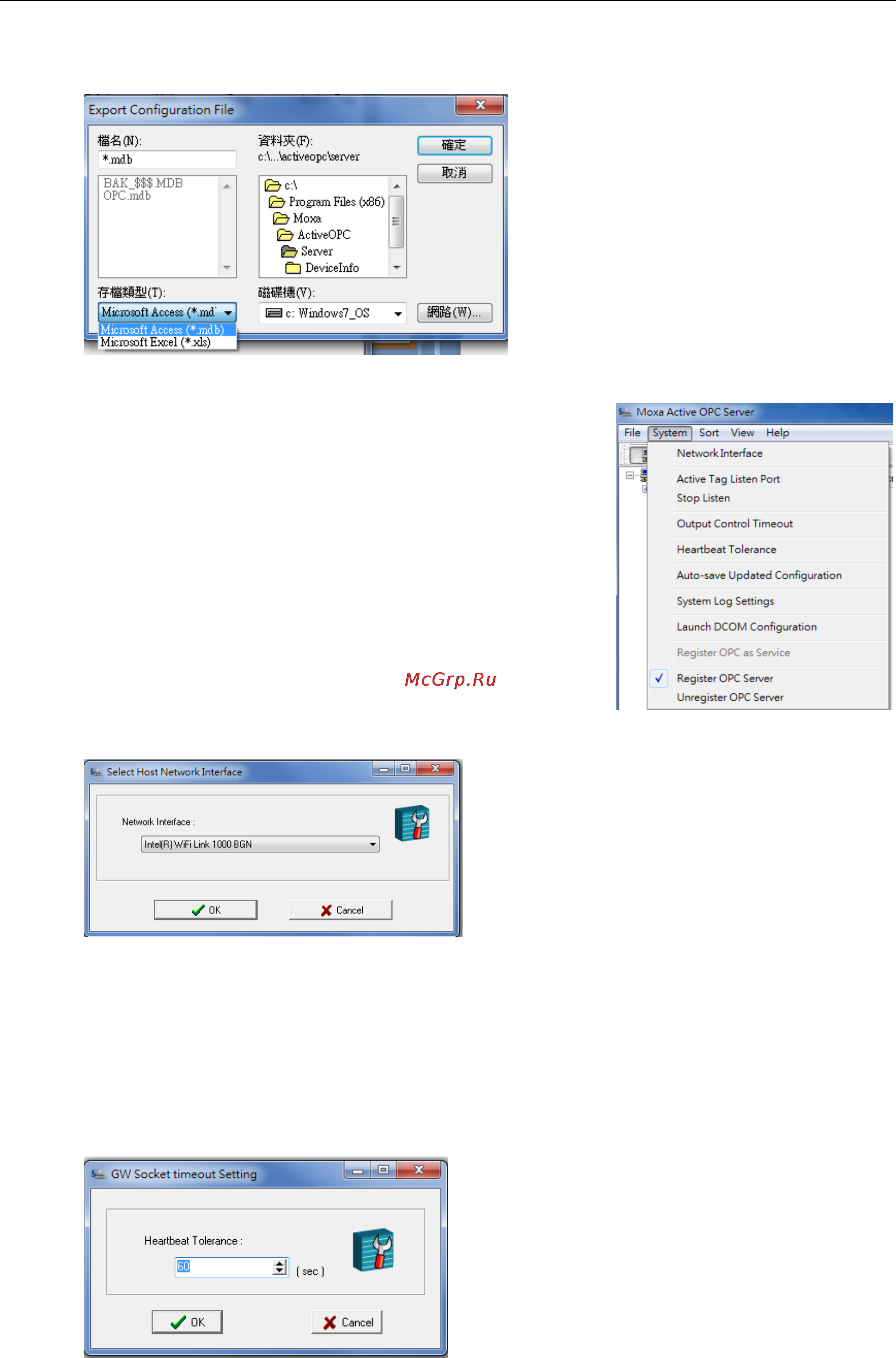

The file will have an .mdb or .xls extension, and can be opened using Microsoft Office Access or Microsoft Excel.
The server list includes the current tag information of the mapped ioLogik.
System
Several operations can be accessed from the
System menu.
Network Interface: Select which network to use if the PC has multiple network adaptors installed.
Active Tag Listen Port: Select the preferred TCP socket port for tag generation from ioAdmin.
Stop Listen: Stop receiving tag generation messages and I/O status updates.
Output Control Timeout: Define the timeout interval for controlling an output channel on a remote ioLogik
device.
Heartbeat Tolerance: Define the timeout to wait for a heartbeat signal from a remote ioLogik device (default
= 60 sec).
