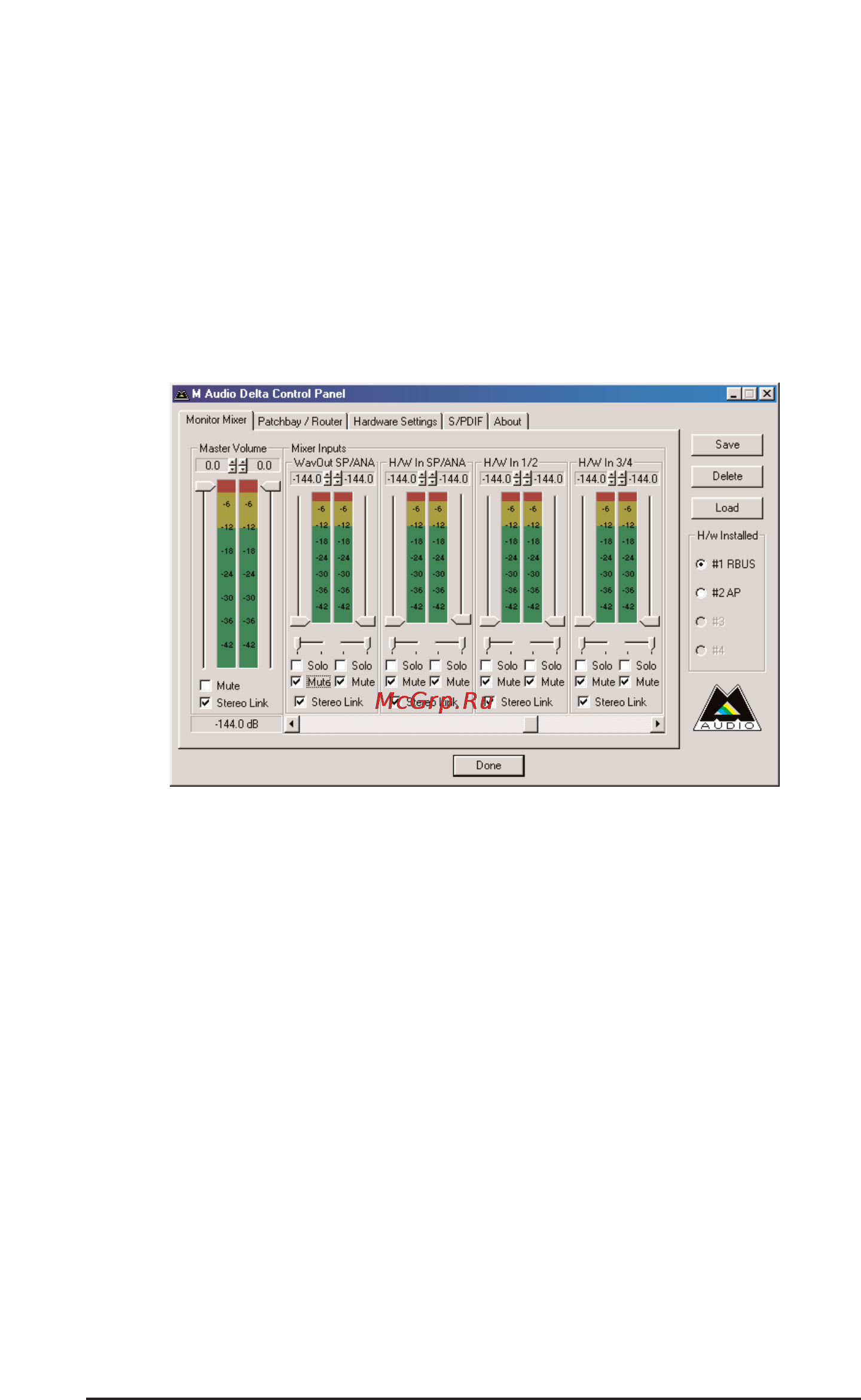

Monitor Mixer Page

The Monitor Mixer is the first page that appears when the Delta Control

Panel is opened, and controls the digital mixer built into the Delta

R-BUS’s PCI controller chip. As described in previous sections, the output

of this mixer may be assigned to the OUT1/OUT2 R-BUS outputs, and to

the Analog and S/PDIF outputs simultaneously (this selection is made in

the Patchbay Router page). At the same time, the mixer outputs may be

recorded in stereo by software by selecting “Mon. Mixer”as the audio

source for a given track.

The Monitor Mixer Page is essentially a collection of volume level faders,

audio level (or ‘peak’) meters, and solo/mute controls. For each mixer

output and input channel there is one of each: a volume fader, a peak

meter, a solo control, and a mute control.

LEVEL FADERS

Each volume fader may be controlled by dragging the fader ‘handle’

vertically with the mouse, or by clicking on the ‘handle’ to make it active

and then adjusting it with the up/down cursor keys of your computer

keyboard. Because the mixer has no gain, these faders only attenuate

(reduce) the signal levels. The highest setting is 0dB, or ‘Unity Gain.’

The default fader setting is the quietest setting, –144dB, which essentially

mutes the audio. A pair of level faders may be "linked" so that both

channels may be adjusted together as a stereo pair.

Also, at the top of each fader and meter is a fader level "fine adjustment"

control. Clicking on the small "up" and "down" arrows will adjust the

corresponding fader setting in 0.5dB increments. Next to each fine adjustment

control is a numerical fader readout that is always current and active.
