M-Audio Delta RBUS [5/60] Delta r bus pci audio card
![M-Audio Delta RBUS [5/60] Delta r bus pci audio card](/views2/1020117/page5/bg5.png)
5

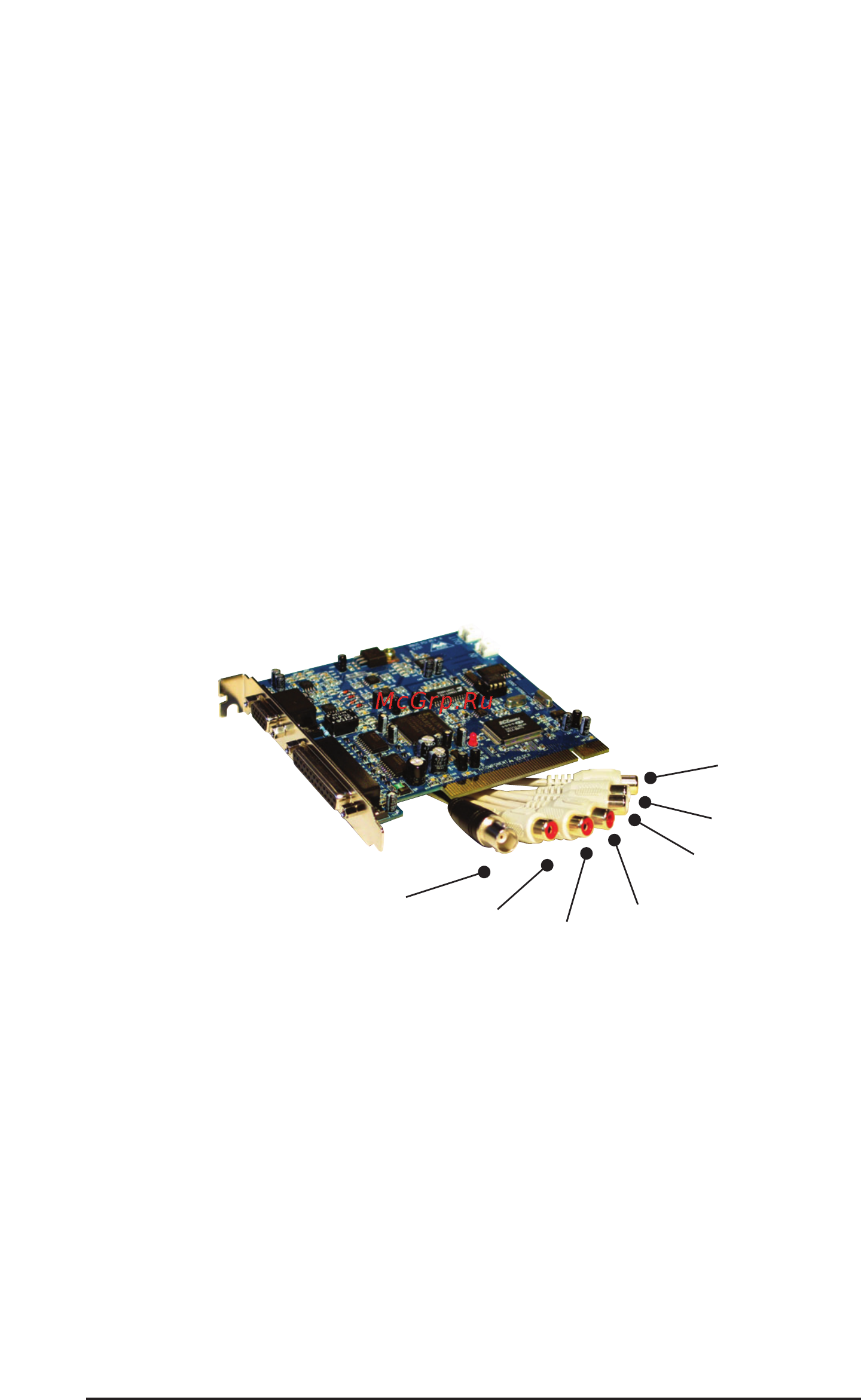

Delta R-BUS PCI Audio Card:
1. Delta R-BUS Audio Card: This is the PCI “host card” that installs into
your computer’s PCI slot.
2. 15-pin D-sub connector: This 15-pin D-sub connector attaches to the
supplied breakout cable, which provides additional I/O connectors.
This breakout cable is a proprietary cable, manufactured by M Audio.
3. R-BUS I/O on 25-pin D-sub connector: This 25-pin D-sub connector
attaches via R-BUS cable to an R-BUS capable device.
4. R-BUS “Out” Sync Connector: Using the supplied internal sync cable,
connect this Out jack to the In jack of a second, or “slave” R-BUS card
and, with the proper Delta panel hardware settings, synchronize the
master clocks of up to four Delta R-BUS PCI Audio Cards.
5. R-BUS “In” Sync Connector: Using the supplied internal sync cable,
connect this In jack to the Out jack of the primary R-BUS card and,
with the proper Delta panel hardware settings, synchronize the
master clocks of up to four Delta R-BUS PCI Audio Cards.
Delta R-BUS PCI Breakout Cable:
1. Word Clock Out: This female BNC connector outputs a word clock
signal that is in-sync with the present sample rate clock of the Delta
R-BUS. The output circuitry is designed to drive a word clock signal
across 75-ohm coaxial cables and into a device with 75-ohm
termination.
2. Analog Out “Left” RCA jack: This jack outputs analog audio to a
variety of external target devices. This jack is RCA female and is
compatible with RCA male audio cables.
3. Analog Out “Right” RCA jack: This jack outputs analog audio to a
1.
2.
3.
4.
5.
6.
7.
