M-Audio Delta RBUS [45/60] Using the delta r bus with your music software application

left and right inputs (see the section, “Using the Delta R-BUS with

your Music Software Application”)

7. Start your software recording and then start your DAT material

playing. You should be able to hear the DAT material through your

sound system.

8. Once you have recorded your tracks, set the music software’s output

port to WavOut SP/ANA. Go into the Delta Control Panel

“Patchbay/Router” page, and set the H/W Out SP/ANA column to

play “WavOut SP/ANA. This will connect your software outputs to

the Delta R-BUS’s Analog and S/PDIF hardware outputs, allowing

you to monitor playback from the analog outs. Rewind, and playback

your recorded material.

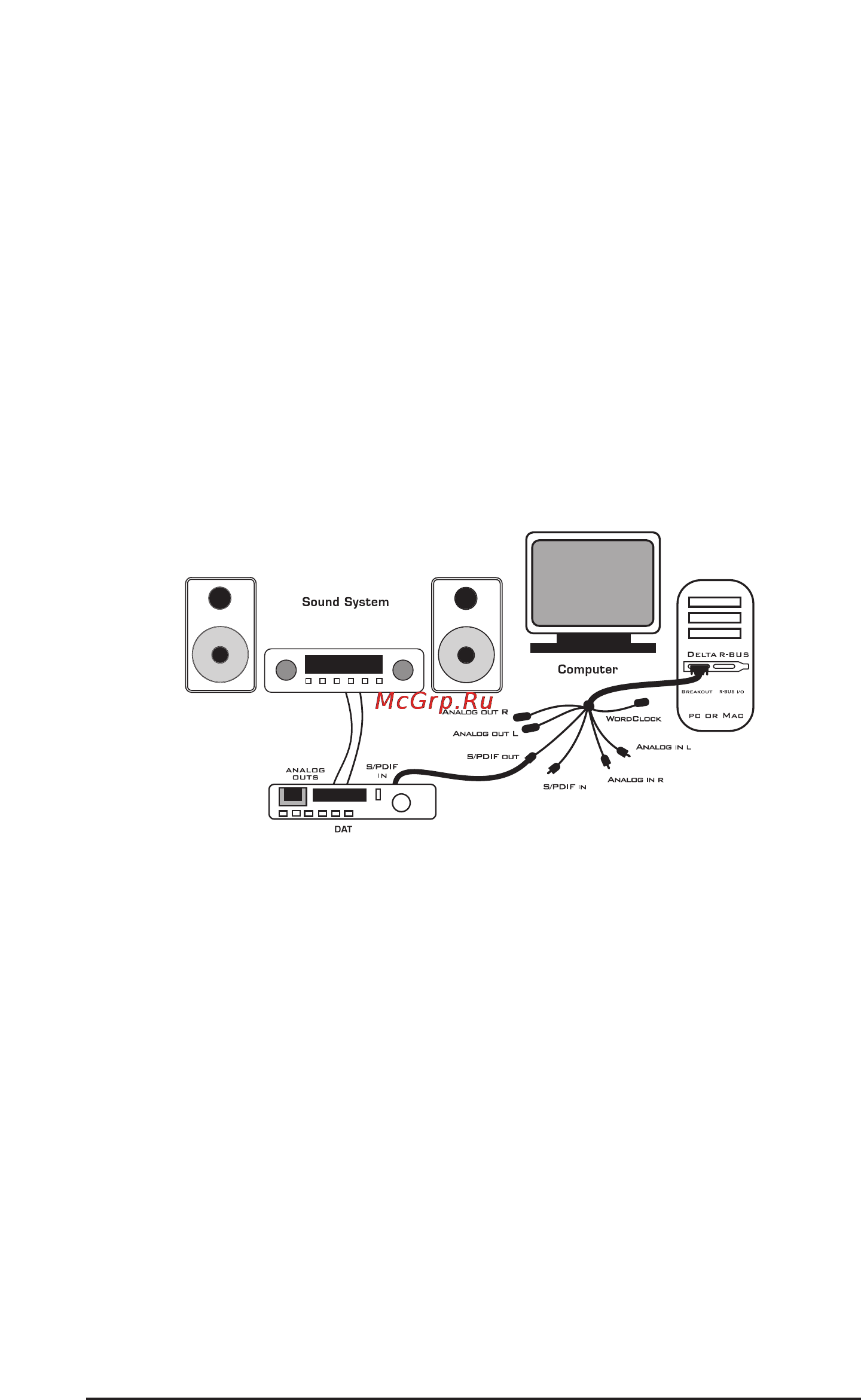

Transferring from Computer to DAT,

monitoring with DAT

1. Connect the Delta R-BUS’s S/PDIF Out to the DAT’s coaxial S/PDIF

Input using a good quality digital cable.

2. Connect the DAT analog outputs to some type of amplified sound

system. The sound system should be equipped with speakers or

headphones. You could, conceivably, continue to monitor via the

Delta R-BUS’s analog outputs, since the signal sent to the S/PDIF out

is duplicated at the analog outs. However, it is often better to monitor

the DAT, since any problems occuring at the DAT will be heard when

monitoring the DAT.

3. Because you will be playing back at the recorded sample rate, you will

want to set the Delta R-BUS’s master clock to use the internal crystal.

Do this by opening the Hardware Settings page of the Delta Control
