Moxa ioLogik E4200 [4/7] Installing the rtb onto the i o module

- 4 -

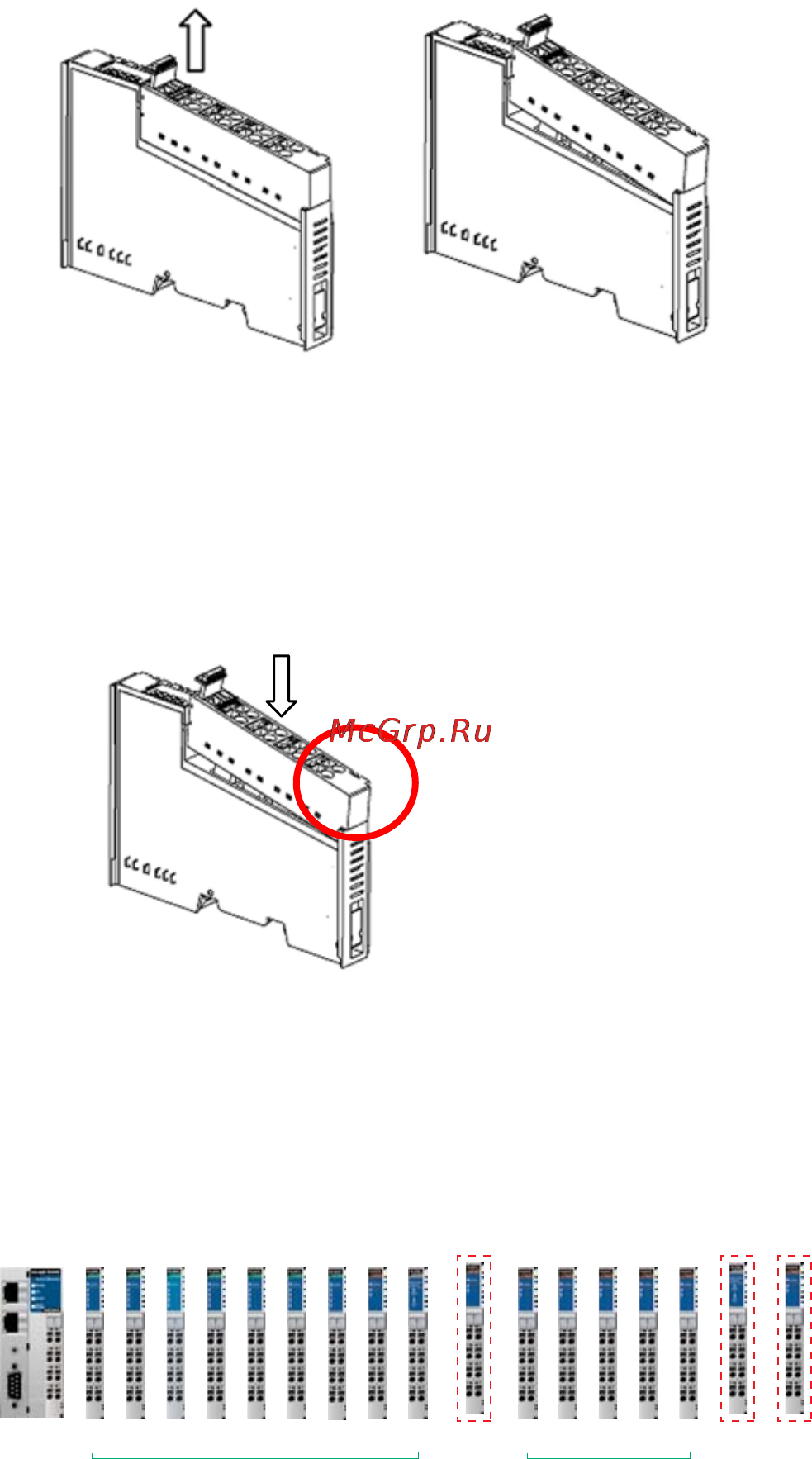

Remove the RTB from the I/O module

Pull out the plastic belt from the RTB, and then apply more force until the I/O

module is pulled away from the I/O module.

Installing the RTB onto the I/O Module

Step1: Hook the bottom end of the RTB to the I/O module.

Step2: Push down the RTB until it fits snugly on the I/O module, and then

push in the plastic belt.

Installing the System Power Module

The system power expansion module is designed to provide extra power when

additional I/O expansion modules are connected. Each ioLogik E4200 can

provide 1.5A @ 5 VDC. If you require more power for your installed I/O

expansion modules, you will need to use an M-7001 module. However, please

note that the M-7001 can only provide 1A @ 5 VDC.

150 mA

200 mA Supports 1000 mA

200 mA

Total: 1400 mA

Total: 1000 mA

200 mA

Supports 1000 mA
