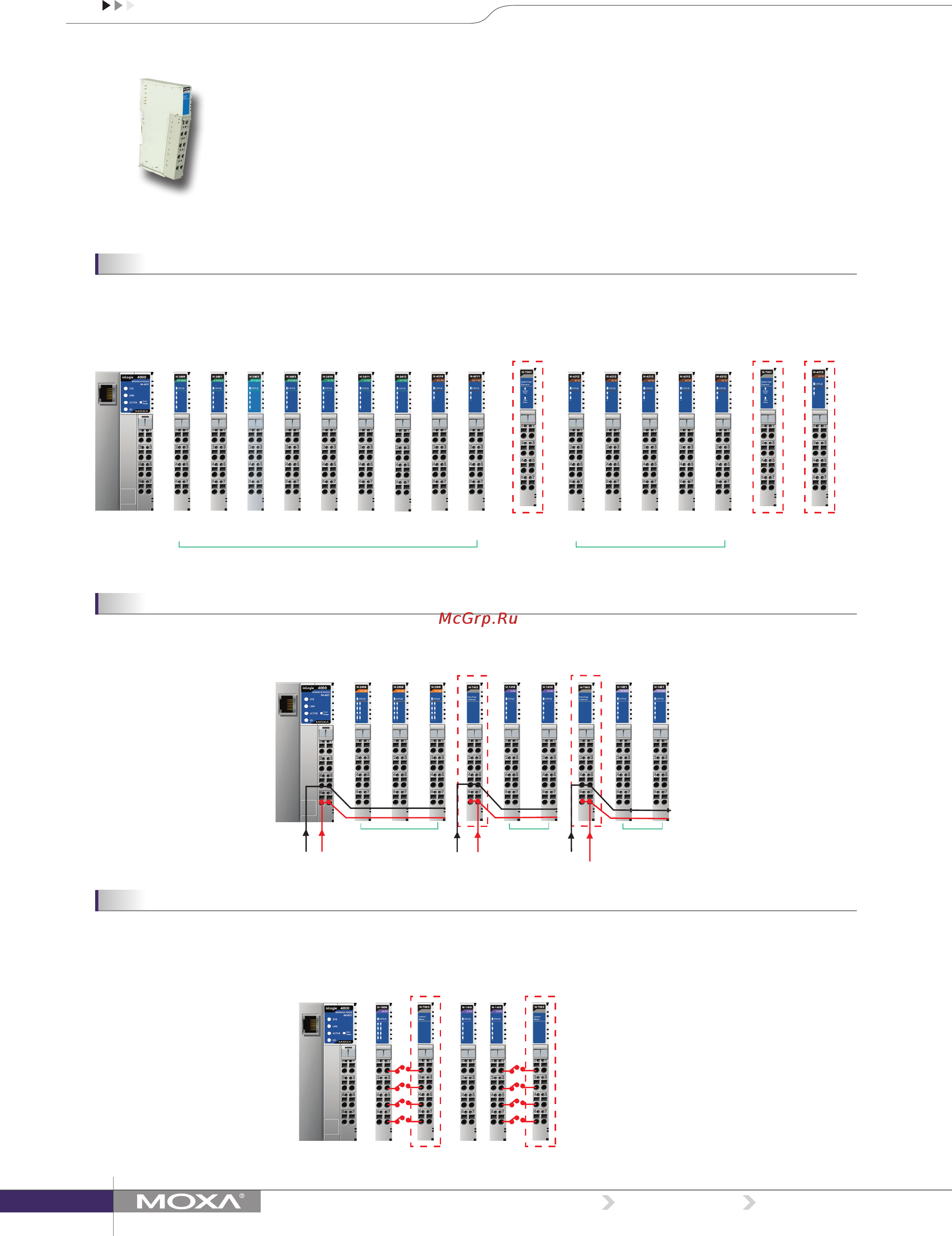

Power Modules

When to Use a Power Module

The system power expansion module is designed to provide extra

power for connected I/O expansion modules. Each NA-4000 series

network adaptor can provide 1.5 A @ 5 VDC. If you need more power

for your installed I/O expansion modules, you will need to use an

M-7001 module. However, note that the M-7001 can only provide

1 A @ 5 VDC.

The field power distributor is designed to isolate different field

voltages. For example, before you connect a 48 VDC or 110 VAC DI/O

module to a 24 VDC DI/O module, you will need an M-7002 field power

distributor.

There are three types of potential distributor modules that provide

extra wiring points, such as shielding ground, 0 V field power, and

24 V field power. For example, the 8-channel digital input (sink type)

module by itself does not have a 24 V wiring point. In this case, you

can add an M-7805 for easier wiring.

System Power Distributor

Field Power Distributor

Potential Power Distributor

M-7001

M-7002 M-7002
