select the current card under configuration, click the radio button to the left of the

desired card in the list.

Typical Delta DiO Setup

Now that we’ve visited the wondrous intricacies of the Delta Control Panel, let’s

look at a setup that involves a typical transfer of information from DAT to comput-

er and back to DAT.

NOTE: Because improper connections can potentially make very

loud noises, it’s a good idea to have monitor levels down while

hooking up audio equipment -- you may even choose to turn your

computer off before making the connections.

In this example, we will connect a DAT to the Delta DiO card using coaxial S/PDIF

cables (typically, 75 ohm). We’ll also connect the DiO’s analog outputs to a sound

system for monitoring purposes. A setup like this might be used to transfer a num-

ber of mixes from a DAT into an audio editing program, performing the appropriate

edits, and then transferring the edited material back to DAT.

The example below may at first look long and laborious, but you will find that most

of the settings are factory defaults and will rarely need to be modified.

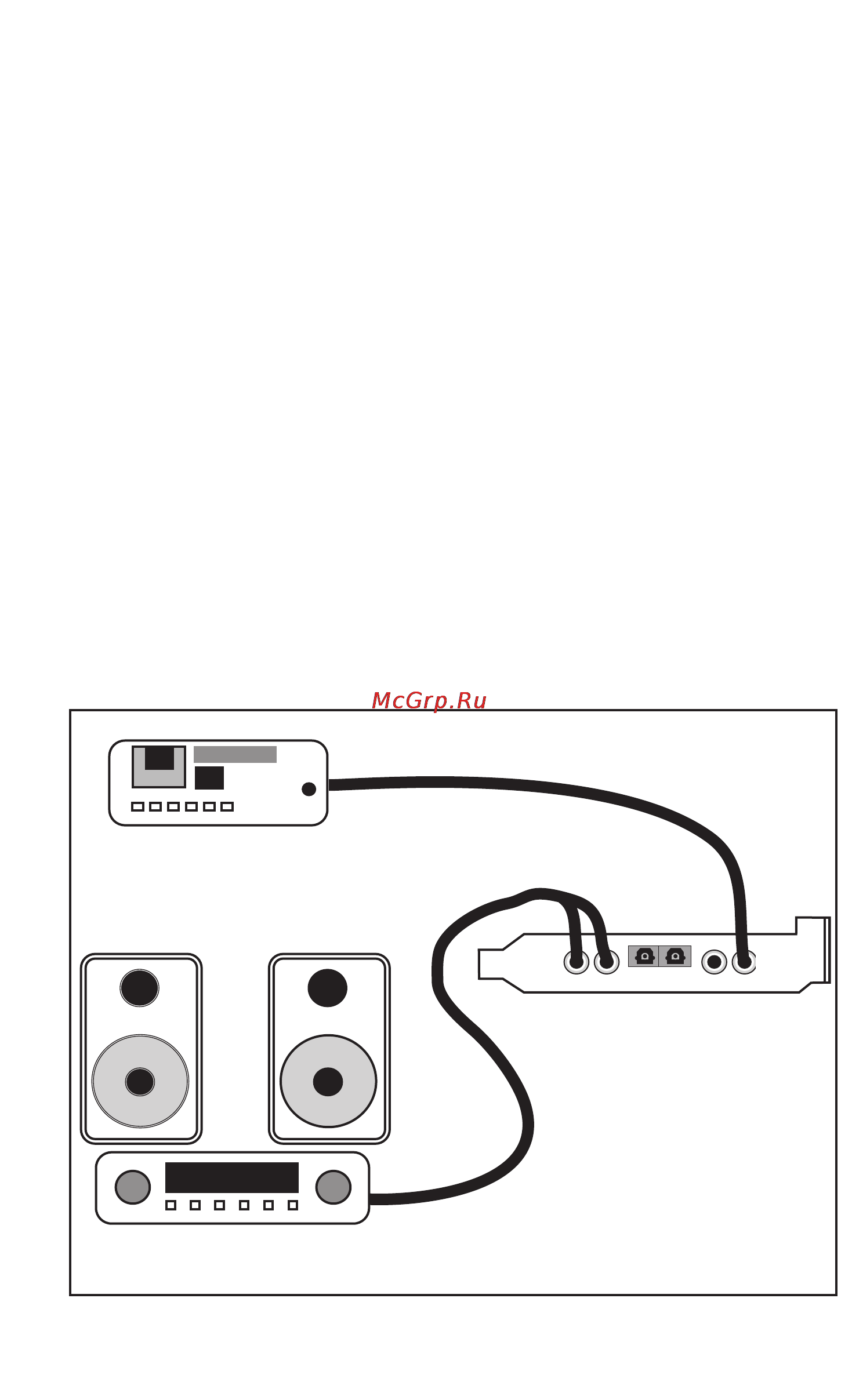

AUDIO

S/PDIF

OUT IN

OUT

SOUND SYSTEM

DAT

DELTA DiO 2496

Coaxial

Out

Coaxial

Analog

Out

Typical Setup 1
