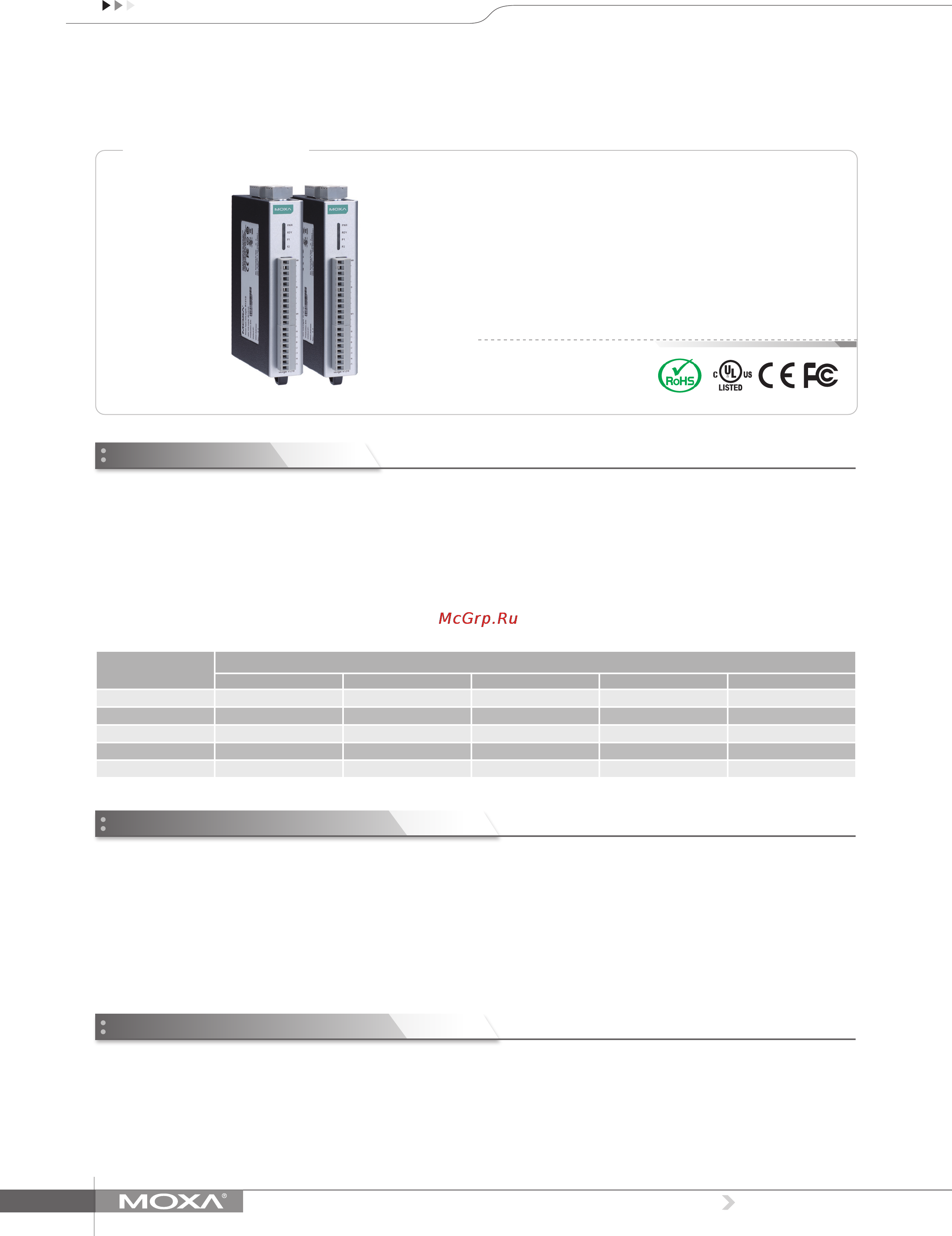

Remote I/O
1
www.moxa.com
ioLogik R1200 Series
RS-485 remote I/O
› Dual RS-485 remote I/O with built-in repeater
› Supports the installation of multidrop communications
parameters
› Install communications parameters and upgrade firmware via
USB
› Upgrade firmware through an RS-485 connection
› Wide operating temperature range: -40 to 85°C (-40 to 185°F)
The ioLogik R1200 RS-485 serial remote I/O devices are perfect for
establishing a cost-effective, dependable, and easy-to-maintain remote
process control I/O system. Remote serial I/O products offer process
engineers the benefit of simple wiring, as they only require two wires
to communicate with the controller and other RS-485 devices while
adopting the EIA/TIA RS-485 communication protocol to transmit
and receive data at high speed over long distances. In addition to
communication configuration by software or USB and dual RS-485
port design, Moxa’s remote I/O devices eliminate the nightmare of
extensive labor associated with the setup and maintenance of data
acquisition and automation systems. Moxa also offers different I/O
combinations, which provide greater flexibility and are compatible with
many different applications.
Introduction
ioLogik R1200 Series Selection Table
Models
I/O Combinations
Digital Inputs Configurable DIOs Relays Analog Inputs Analog Outputs
ioLogik R1210
16 – – – –
ioLogik R1212
8 8 – – –
ioLogik R1214
6 – 6 – –
ioLogik R1240
– – – 8 –
ioLogik R1241
– – – – 4
ioLogik R1210 Specifications
Inputs and Outputs
Digital Inputs: 16 channels
Isolation: 3k VDC or 2k Vrms
Digital Input
Sensor Type: Wet Contact (NPN or PNP), Dry Contact
I/O Mode: DI or Event Counter
Dry Contact:
• On: short to GND
• Off: open
Wet Contact (DI to COM):
• On: 10 to 30 VDC
• Off: 0 to 3 VDC
Common Type: 8 points per COM
Counter Frequency: 2.5 kHz
Digital Filtering Time Interval: Software Configurable
Power Requirements
Input Voltage: 12 to 48 VDC
Input Current: 154 mA @ 24 VDC
ioLogik R1212 Specifications
Inputs and Outputs
Digital Inputs: 8 channels
Configurable DIOs (by jumper): 8 channels
Isolation: 3k VDC or 2k Vrms
Digital Input
Sensor Type: Wet Contact (NPN or PNP), Dry Contact
I/O Mode: DI or Event Counter
Dry Contact:
• On: short to GND
• Off: open
