www.moxa.com
info@moxa.com
Remote I/O

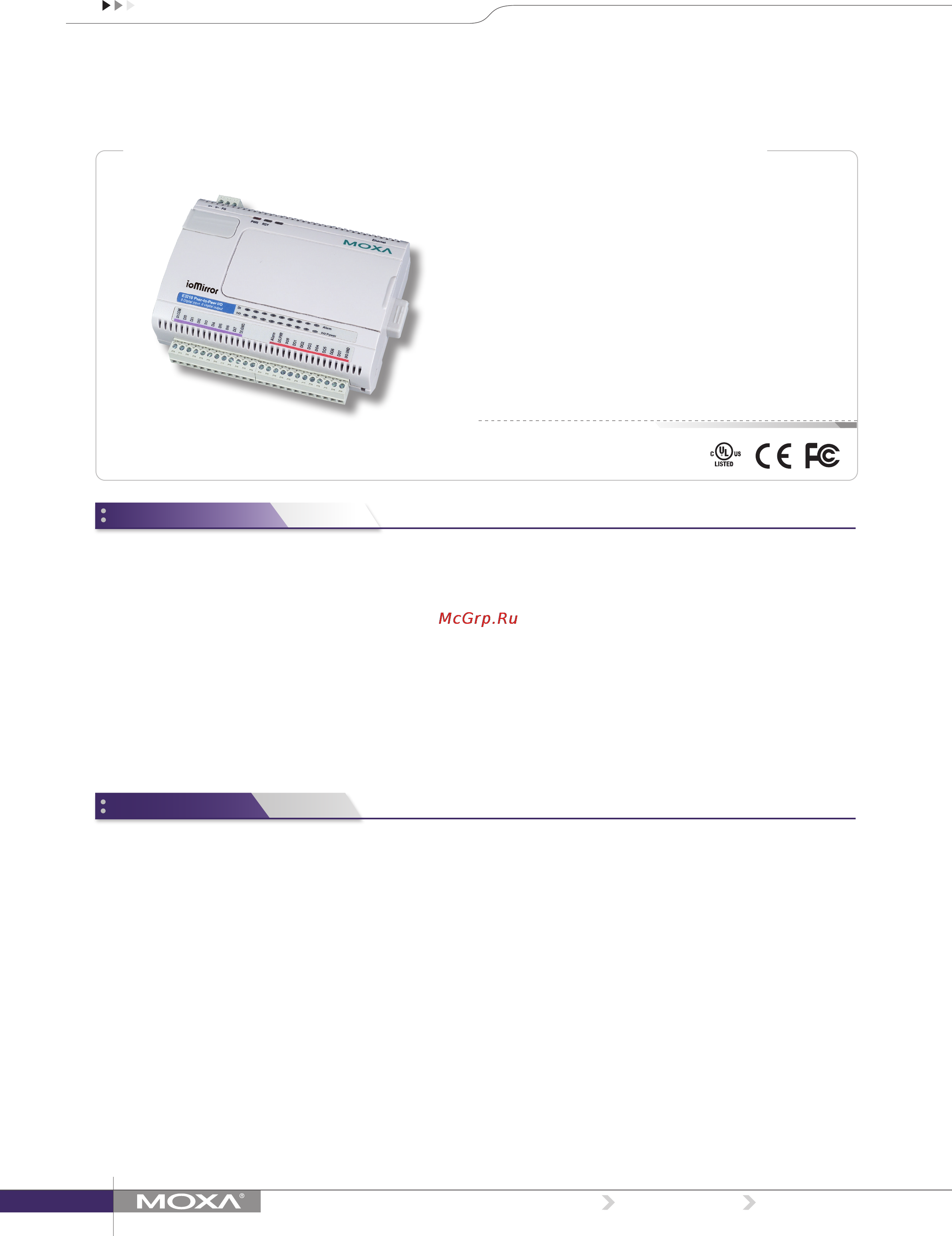

ioMirror E3210
Direct Input-to-Output Communication over IP
The ioMirror E3210, which is designed as a cable-replacement solution
to connect remote digital input signals to output signals over an IP
network, provides 8 digital input channels, 8 digital output channels,
and a 10/100M Ethernet interface. Up to 8 pairs of digital input and
output signals can be exchanged over Ethernet with another ioMirror
E3210, or can be sent to a local PLC or DCS controller. Over a local
area network, the ioMirror can achieve a low signal latency (typically
less than 20 ms). With the ioMirror, remote sensors can be connected
to local controllers or display panels over copper, fiber, or wireless
Ethernet infrastructures. Signals can be transmitted over virtually
unlimited distances, without noise problems.
Split Sensor Signals to 16 Different Locations
The ioMirror E3210 can split one input signal to two digital output
channels at two different IP addresses. Eight tank level signals can be
monitored at 16 different display panels, all at the same time.
Local Alarm and Remote Alarm Messages for
Monitoring Connectivity
The ioMirror E3210 has a 24 VDC alarm output channel that can
activate an attached buzzer or LED display when the connection
fails. In addition, both ioMirror modules can send messages to
the ioEventLog software, ensuring that at least one of the warning
messages will reach the ioEventLog software.
Ethernet Peer-to-Peer I/O with 8 digital inputs and 8 digital outputs
Introduction
Specifications
› Direct input-to-output signal communication over IP
› High speed Peer-to-Peer I/O within 20 ms
› One physical alarm port for connectivity status
› Quick and easy utility and web-based settings
› Local alarm channel
› Remote alarm message
› Supports Modbus/TCP for remote monitoring
› Optional LCD module for easy configuration
LAN
Ethernet: 1 x 10/100 Mbps, RJ45
Protection: 1.5 KV magnetic isolation
Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP, SNTP
Digital Input
Channels: 8, source type
Sensor Type: NPN, Dry contact
I/O Mode: Digital Input
Dry Contact:
• Logic 0: short to GND
• Logic 1: open
Wet Contact:
• Logic 0: 0 to 3 VDC
• Logic 1: 10 to 30 VDC (DI COM to DI)
Common Type: 8 points per COM
Isolation: 3K VDC or 2K Vrms
Digital Filtering Time Interval: Software selectable
Over-voltage Protection: 36 VDC
Digital Output
Channels: 8, sink type, 36 VDC, 200 mA
I/O Mode: Digital Output
Over-voltage Protection: 45 VDC
Over-current Protection: 600 mA
Over-temperature Shutdown: 160°C
Output Current Rating: Max. 200 mA per channel
Isolation: 3k VDC or 2k Vrms
Alarm Port Output
Channels: 1, sink type
Output Current Rating: Max. 200 mA per channel
Isolation: 3k VDC or 2k Vrms
Power Requirements
Power Input: 24 VDC nominal, 12 to 48 VDC
DO Power: 24 VDC nominal, up to 45 VDC
