I/O (left to right)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
DI.COM
DI0
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI.GND
Alarm
DO.PWR
DO0
DO1
DO2
DO3
DO4
DO5
DO6
DO7
DO.GND

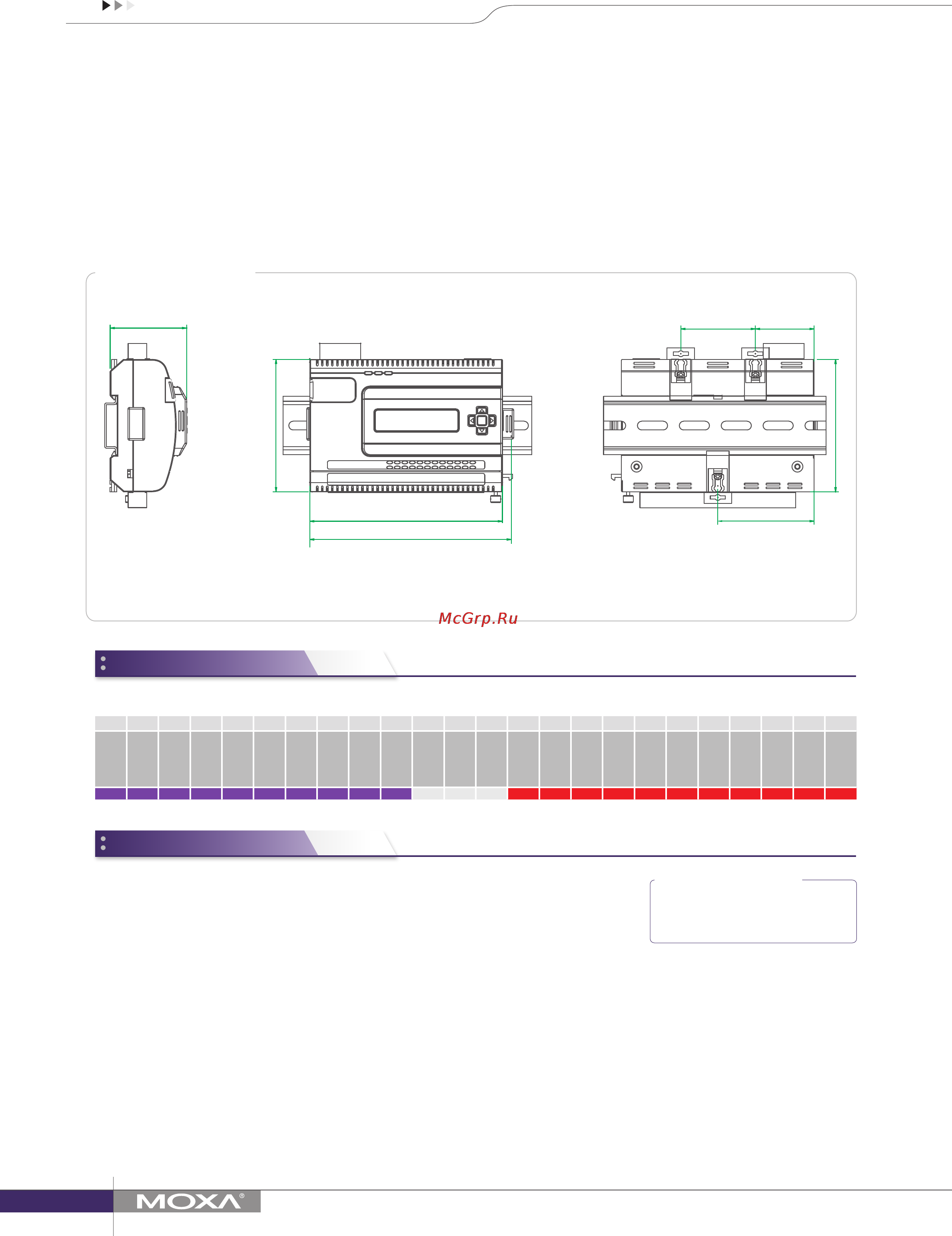

Dimensions (unit = mm)
45.6 mm (1.8 in)
44.5 mm
(1.8 in)
35.1 mm
(1.4 in)
79.0 mm (3.1 in)
57.5 mm (2.3 in)
79.0 mm (3.1 in)
115.0 mm (4.5 in)
120.3 mm (4.7 in)
Side View Front View Rear View
Ordering Information
I/O Pin Assignment
Physical Characteristics
Wiring: I/O cable max. 14 AWG
Dimensions: 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
Weight: 205 g
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function
properly at higher altitudes.
Standards and Certifications
Safety: UL 508
EMI: FCC Part 15, Subpart B, Class A, EN 55022 Class A
EMS: IEC 61000-4, IEC 61000-6
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Available Models
ioMirror E3210: Ethernet Peer-to-Peer I/O with 8 digital inputs and 8 digital outputs
Optional Accessories (must be purchased separately)
LDP1602: LCD module with 16 x 2 text display and 5 buttons
Package Checklist
• ioMirror E3210
• Documentation and software CD
