Click&Go Plus Click&Go Plus™ Rules
3-3
Types of IF Conditions

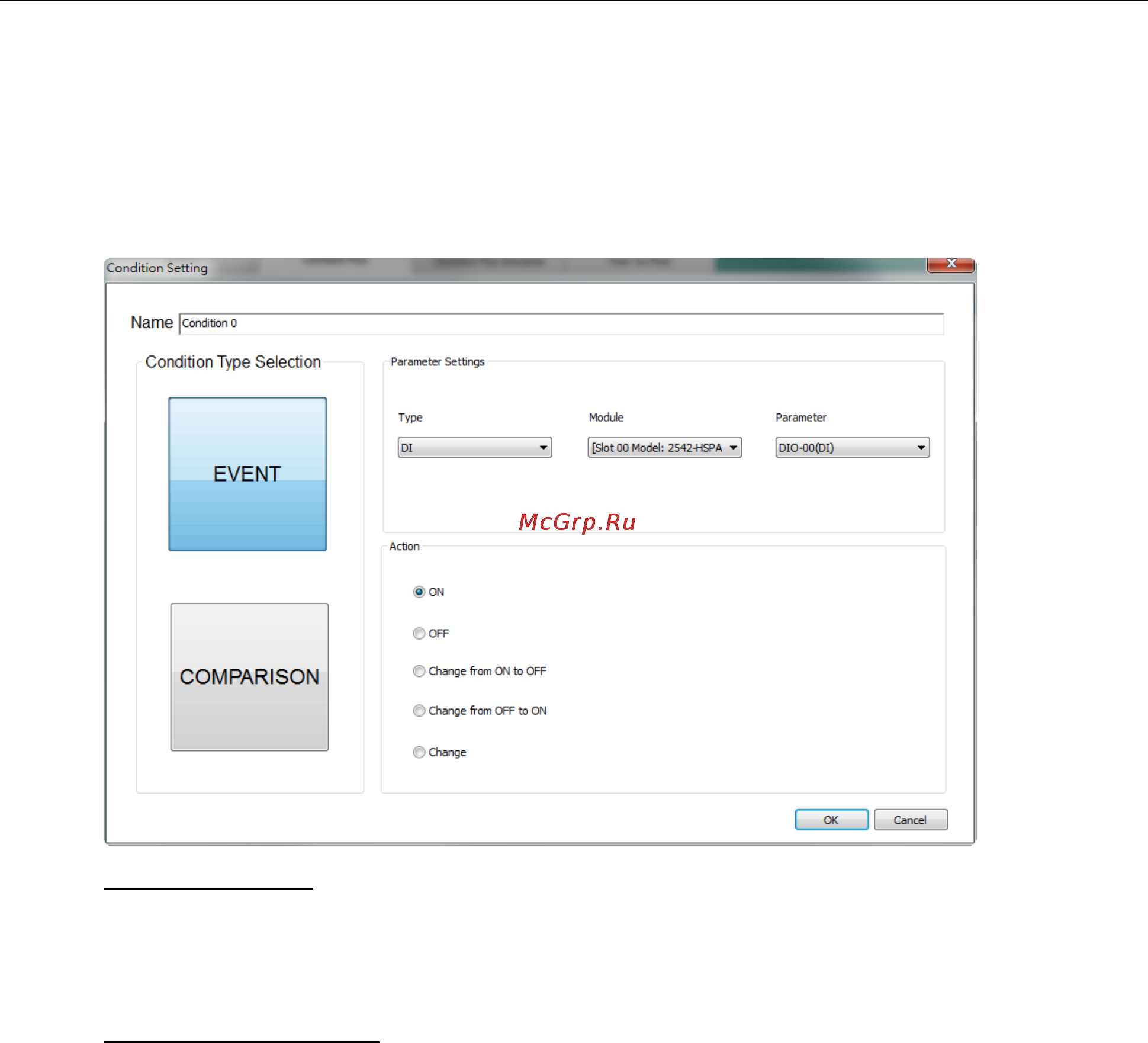

“If” conditions are categorized into two types: EVENT and COMPARISON. You can find these two categories in
the Condition Settings window. If the parameter is not shown (i.e., the space under Type, Module, and
Parameter is empty), check to make sure that the Click&Go Plus components have been set. See Chapter 2 for
details.
Trigger Type: Event
• Supports physical IO and software components (software IO)
• Monitors the result of Boolean type output (e.g., True/False, Enable/Disable, Start/Stop)
• Usually used with “Digital” IO types
Trigger Type: Comparison
• Supports physical IO and software components (software IO)
• Monitors the result of numerical output types
• Usually used with “Analog” IO types
List of IF-Conditions
The list of functions you can find in Click&Go Plus If conditions
