Moxa ioLogik 2542-T [30/30] Click go plus click go plus simulation
![Moxa ioLogik 2542-T [30/30] Click go plus click go plus simulation](/views2/1201210/page30/bg1e.png)

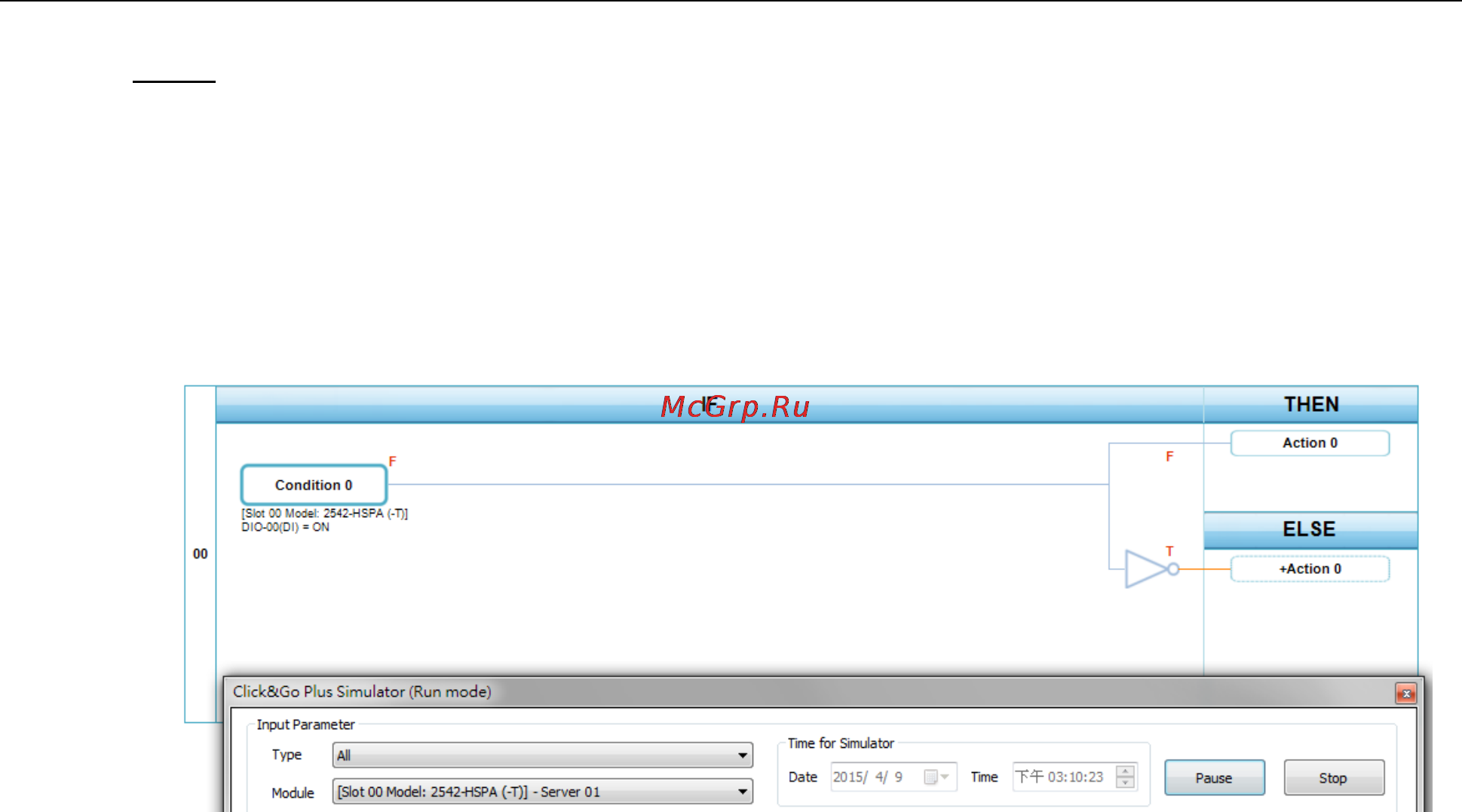

Click&Go Plus Click&Go Plus™ Simulation
4-3
Usage
Take the following steps to simulate your Click&Go Plus rules.
1. Set a “Value” for I/O status in advance by clicking the “Value” column.
2. Set “Time for Simulator” to simulate your system time.
3. Click “Run” to start the simulation.
4. While the simulation is running, you can change the value of any I/O status in the simulator window. The
result will be shown in the main window.
5. Click Pause to temporarily stop a simulation, or click Stop to terminate a simulation. For example, if a
counter currently has a value of 11, pausing the counter will cause the counter to continue counting from
11 when the simulation resumes. If you click stop, the counter will be reset to the initial counter value.
