ioPAC RTU Software RTU Communications
4-4

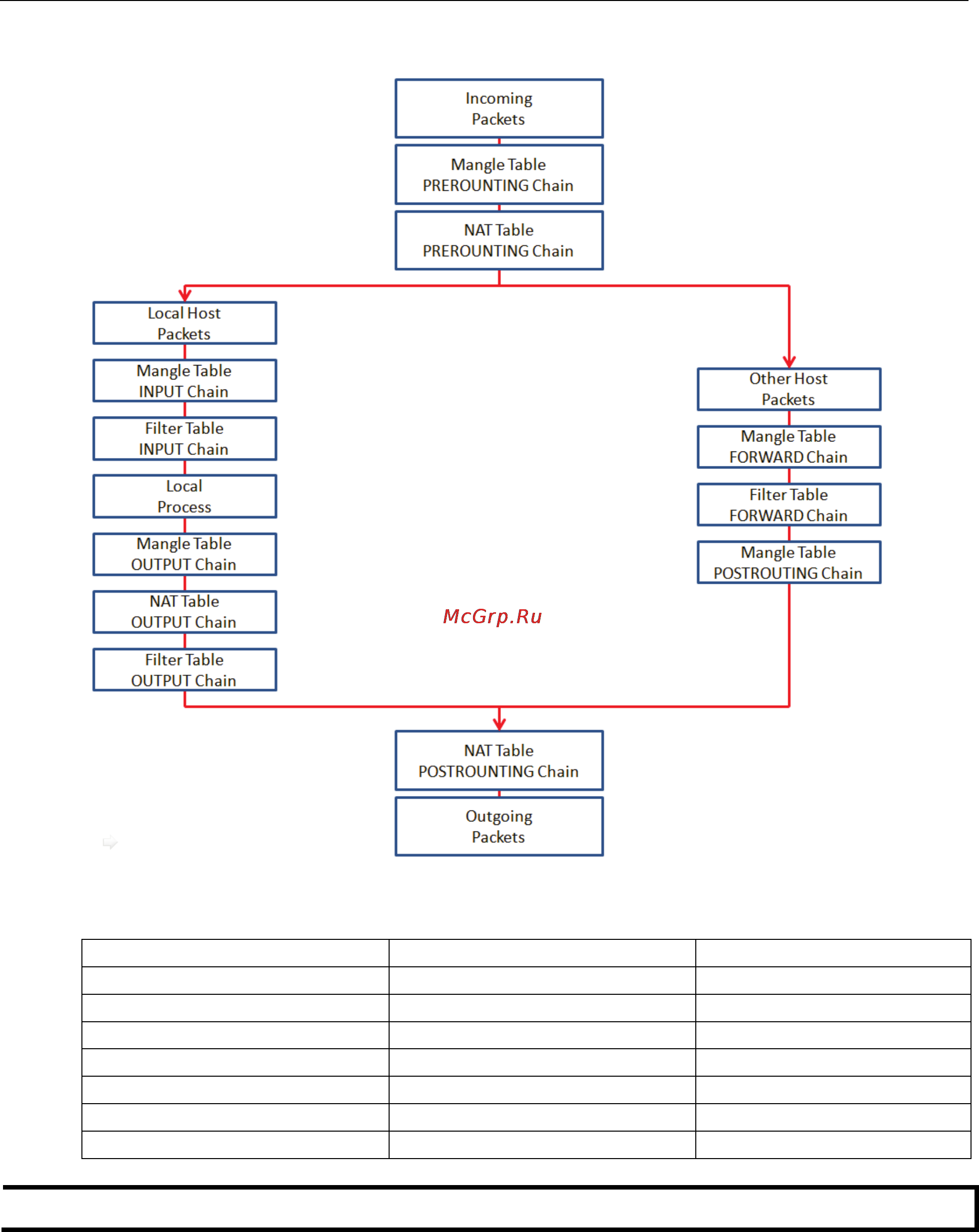

The following figure shows the iptables hierarchy.
The ioPAC RTU controllers support the following sub-modules. Be sure to use the module that matches your
application.
nf_conntrack ipt_MASQUERADE xt_length
nf_conntrack_ftp ipt_REDIRECT xt_limit
nf_conntrack_irc ipt_REJECT xt_mark
nf_nat_ftp xt_TCPMSS xt_multiport
nf_nat_irc xt_mac xt_owner
nf_nat_snmp_basic ipt_ULOG xt_state
nf_queue ipt_ah xt_tcpmss
ipt_LOG
xt_esp
NOTE
The ioPAC
RTU controllers DO NOT support IPv6 or ipchains.
The basic syntax to enable and load an iptables module is as follows:
#lsmod
#modprobe ip_tables
#modprobe iptable_filter
Use lsmod to check if the ip_tables module has already been loaded onto the ioPAC RTU controller unit. Use
modprobe to insert and enable the module.
