ioPAC 8500 Hardware Installation
2-10

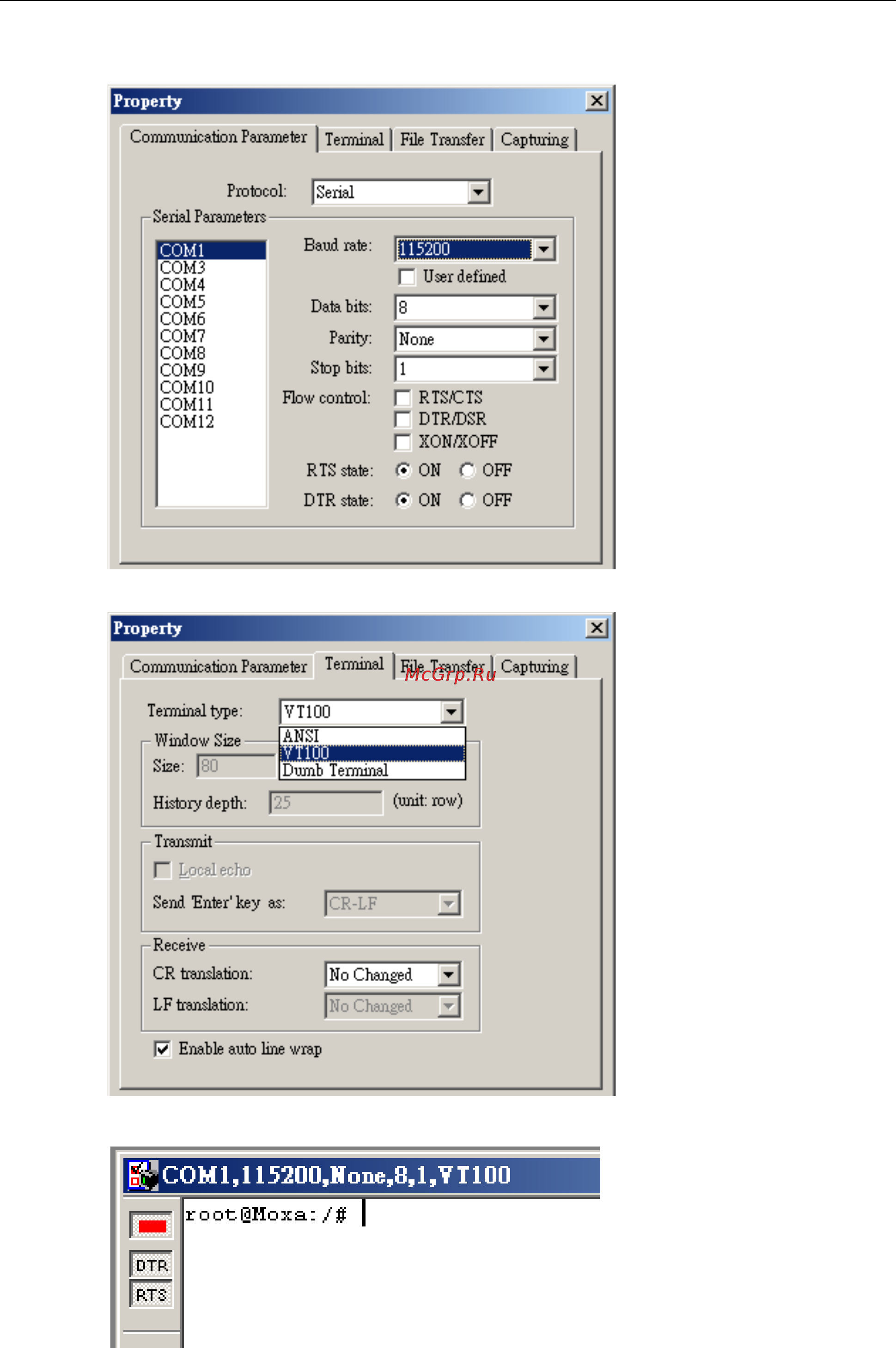

5. Specify which COM port is connecting to the Moxa RTU, and use the following configuration settings:
115200, 8, none, 1.
6. Click on the Terminal tab and configure the Terminal Type to VT100. Click OK to proceed.
7. The serial console will be displayed on the terminal screen.
