ioPAC 8500 Hardware 85M Module Hardware Introduction
4-5
85M-2600-T: Digital Output, 24 VDC, Sink Type
The 85M-2600-T features sink type sixteen digital output channels. The 85M-2600-T can use the module’s
digital outputs to determine the state of limit or safety switches, or to receive remote digital signals.

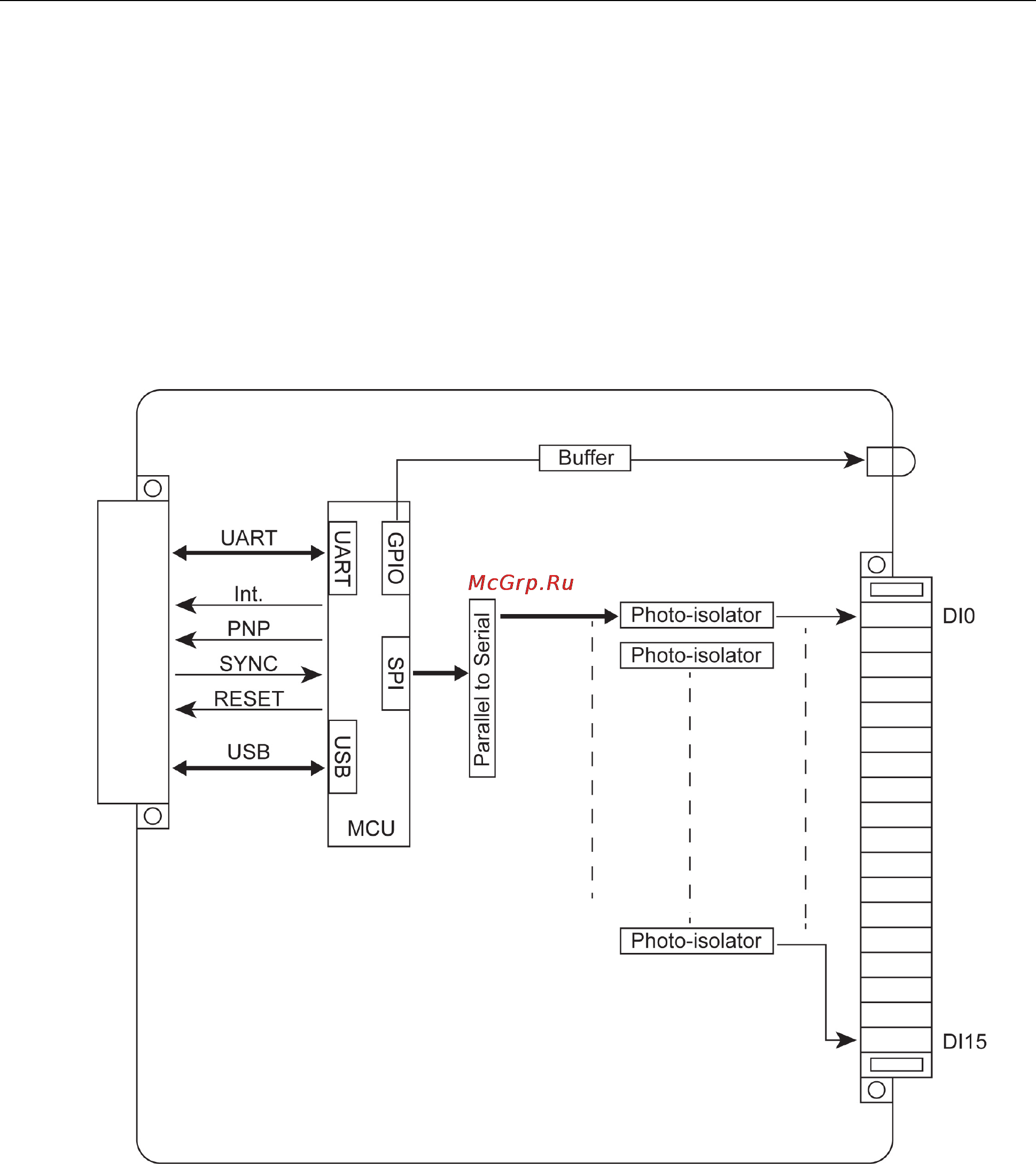

Block Diagram
The following is the 85M-2600-T module’s block diagram. The MCU has two communication interfaces, USB and
UART, which the 85M-2600-T uses to communicate with the modular head. The MCU accesses information from
the I/O channels by SPI through the parallel-to-serial chip. 85M-2600-T has isolation protection up to 3K VDC
or 2K Vrms, and photo-isolators between the I/O channels and the MCU.
Specifications
The following are the 85M-2600-T module’s product specifications.
Inputs and Outputs
Digital Outputs:
16 channels
Isolation:
3K VDC or 2K Vrms
Digital Outputs
Type:
Sink
I/O Mode: DO or pulse output
Pulse Output Frequency:
5 kHz
Over
-voltage Protection: 45 VDC
Over
-current Protection: 2.6 A (4 channels @ 650 mA)
