ioPAC 8500 Hardware 85M Module Hardware Introduction
4-6
Over
-temperature Shutdown: 175°C (typical), 150°C (min.)
Current Rating:
200 mA per channel
Physical Characteristics
Wiring:
I/O cable, max. 16 AWG
Connector:
Spring type terminal block
Environmental Limits
Operating Temperature:
-40 to 75°C
Power Requirements
Power Consumption:
0.85 W @ 3.3 VDC
MTBF
(mean time between failure)
Time:
792,571 hrs
Database:
Telcordia (Bellcore)

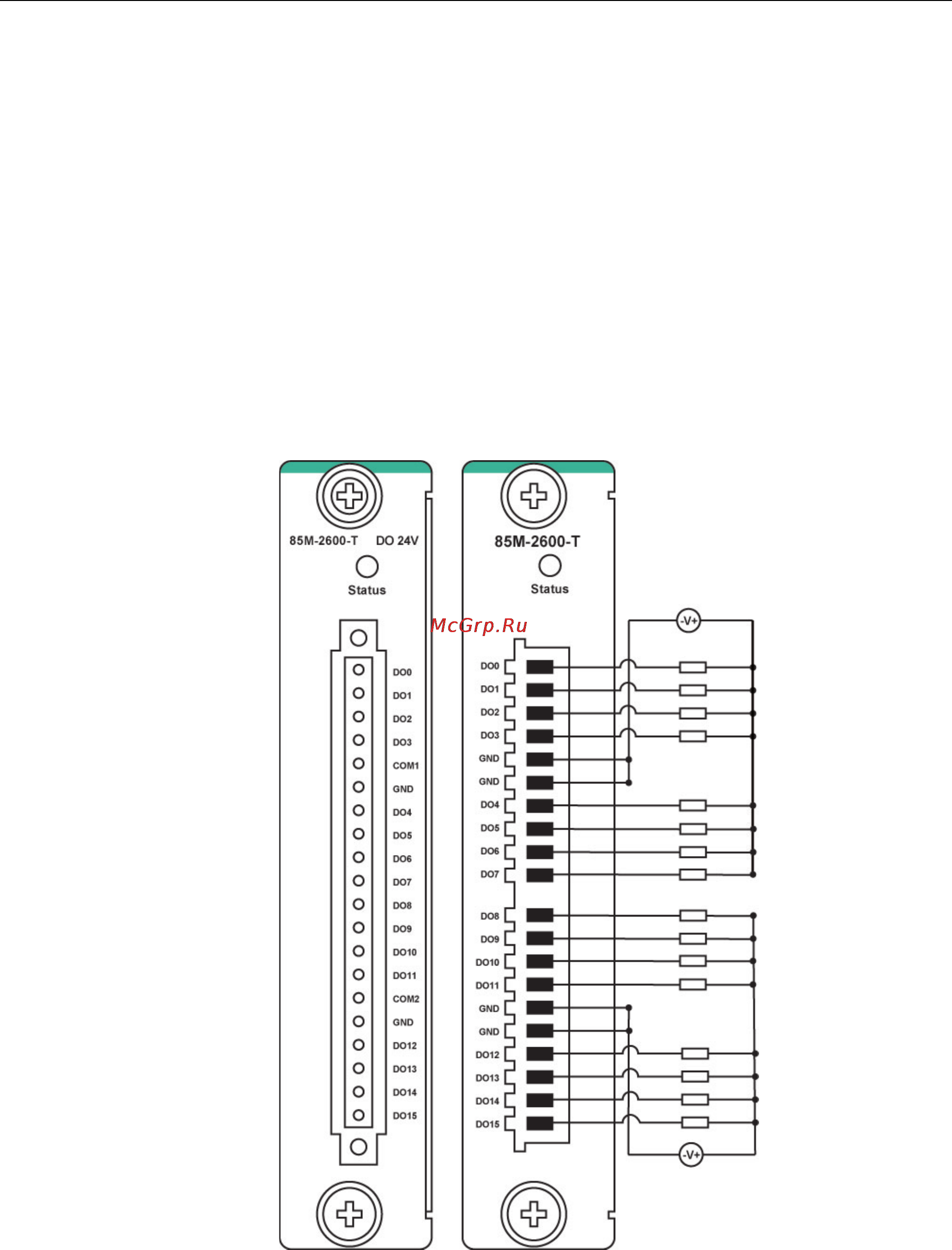

Pin Assignment and Wiring Guide
