to create a shortcut to it that you can place on your desktop. To do this,

open the Windows Explorer by Start | Programs | Windows Explorer.

Under the C drive list, click on the plus sign next to Program Files, click

the plus sign next to Midiman, and then click the BiPort Remote folder.

In the list of Contents (the right column of Explorer), right click on the

file named Bpremote and select “Create Shortcut.” This will create a

shortcut file in the Contents list that you can then click and drag to your

desktop.

Remote Control Operation

If you haven’t worked with SMPTE/MTC sync before, we suggest you

read the section SMPTE/MIDI Time Code Tutorial before reading this

section just to familiarize yourself with some basic ideas and terminolo-

gy.

SMPTE Setup

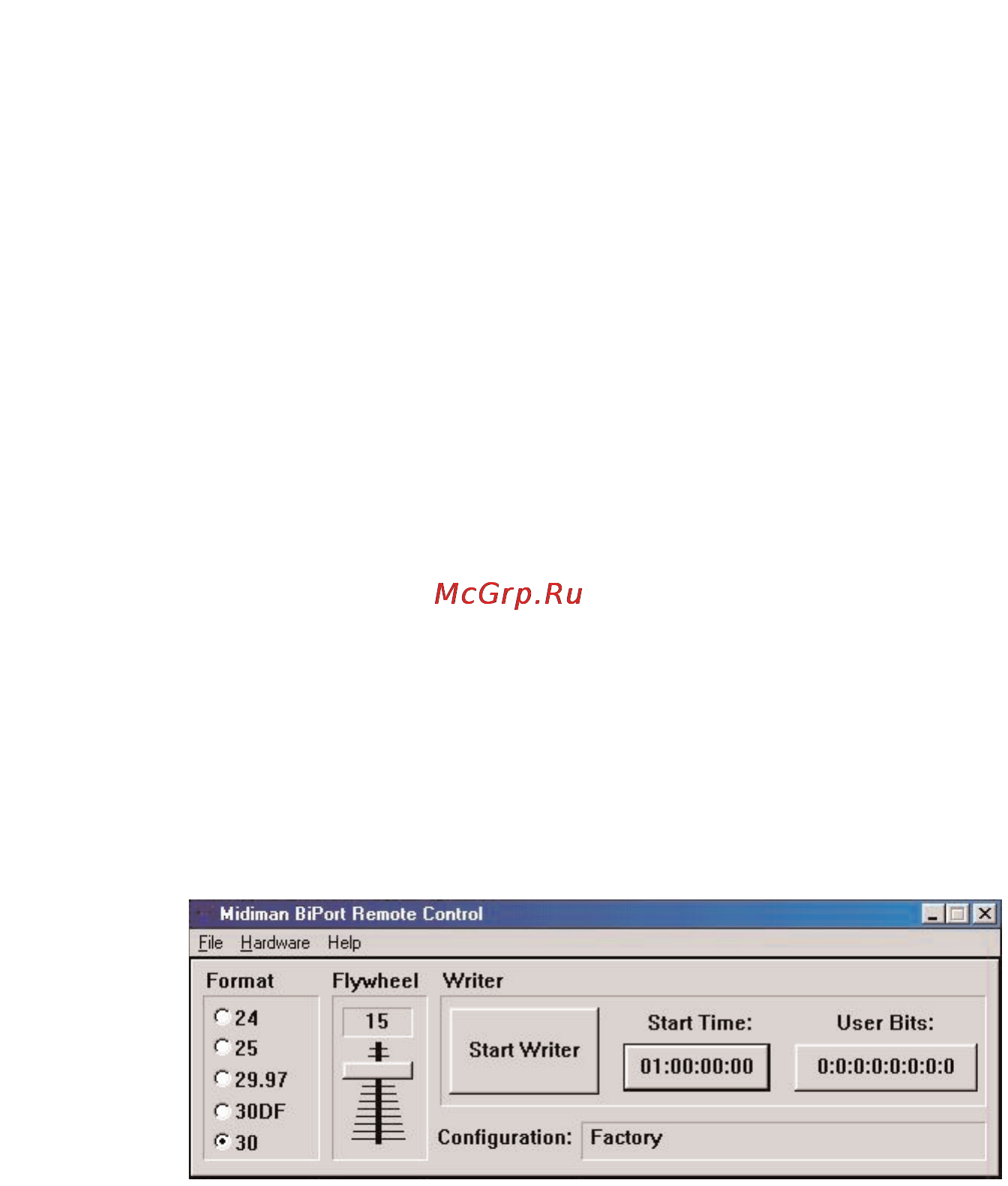

The primary screen of the BiPort Remote Control Software gives you

complete control over all the SMPTE sync functions of the interface.

The controls are fairly self-explanatory. Format sets the SMPTE frame

rate for the BiPort SMPTE generator. Flywheel sets the number of frames

the reader/regenerator will automatically advance and correct when

receiving either bad or no time code. Slide the Flywheel slider towards 0

to set “Jam Sync” mode. The Start Writer button starts and stops the

SMPTE writer. The Start Time and User Bits buttons allow you to set,

respectively, SMPTE start time and the outgoing User Bits.
