OnCell G3100 Series Software Installation/Configuration
14-4

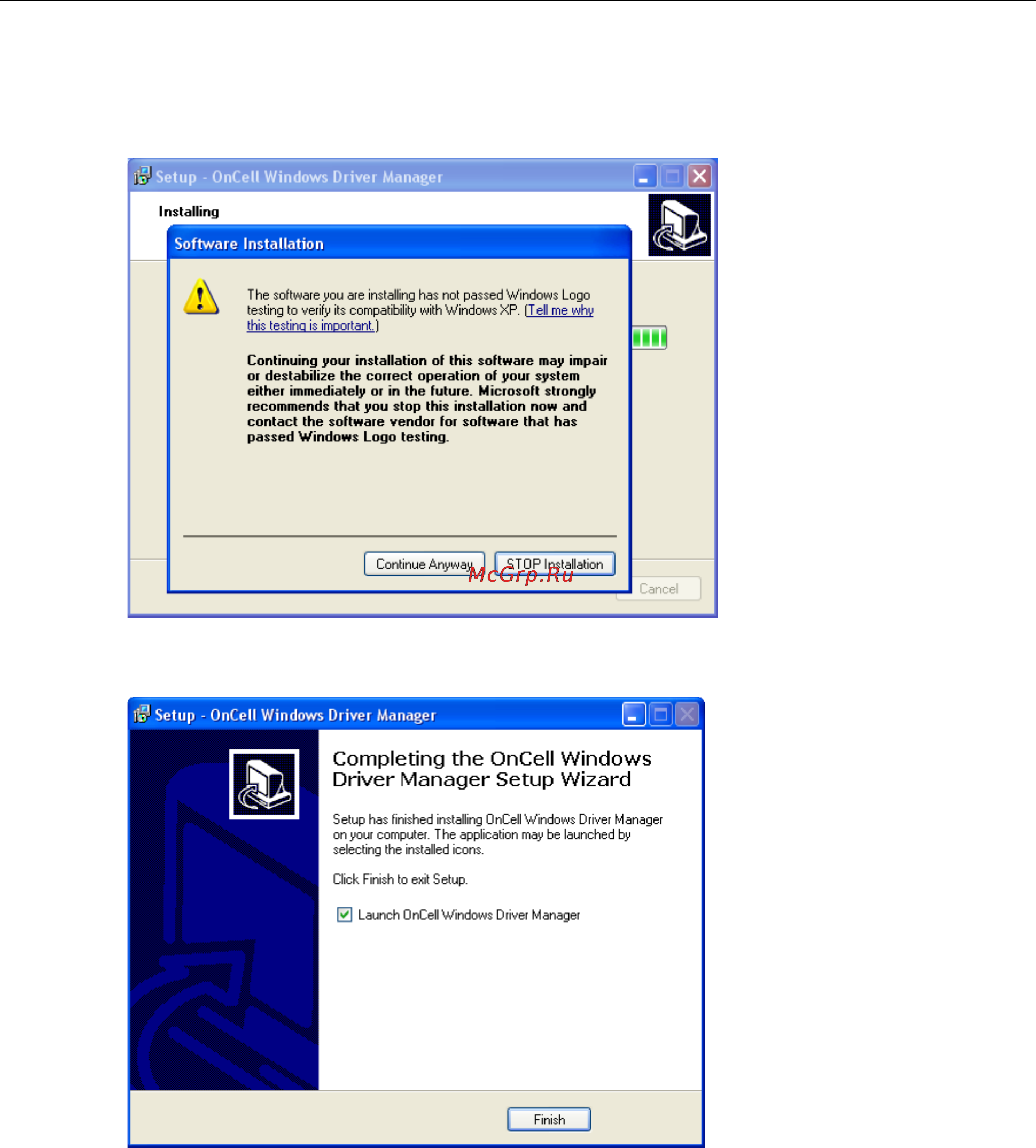

5. Click Install to begin the installation. The setup window will report the progress of the installation. To
change the installation settings, click Back and navigate to the previous screen. On Windows XP, the
installer will display a message that the software has not passed Windows Logo testing. This is shown as
follows:
Click Continue Anyway to finish the installation.
6. Click Finish to complete the installation of the Windows Driver Manager.
