OnCell G3100 Series Software Installation/Configuration
14-8

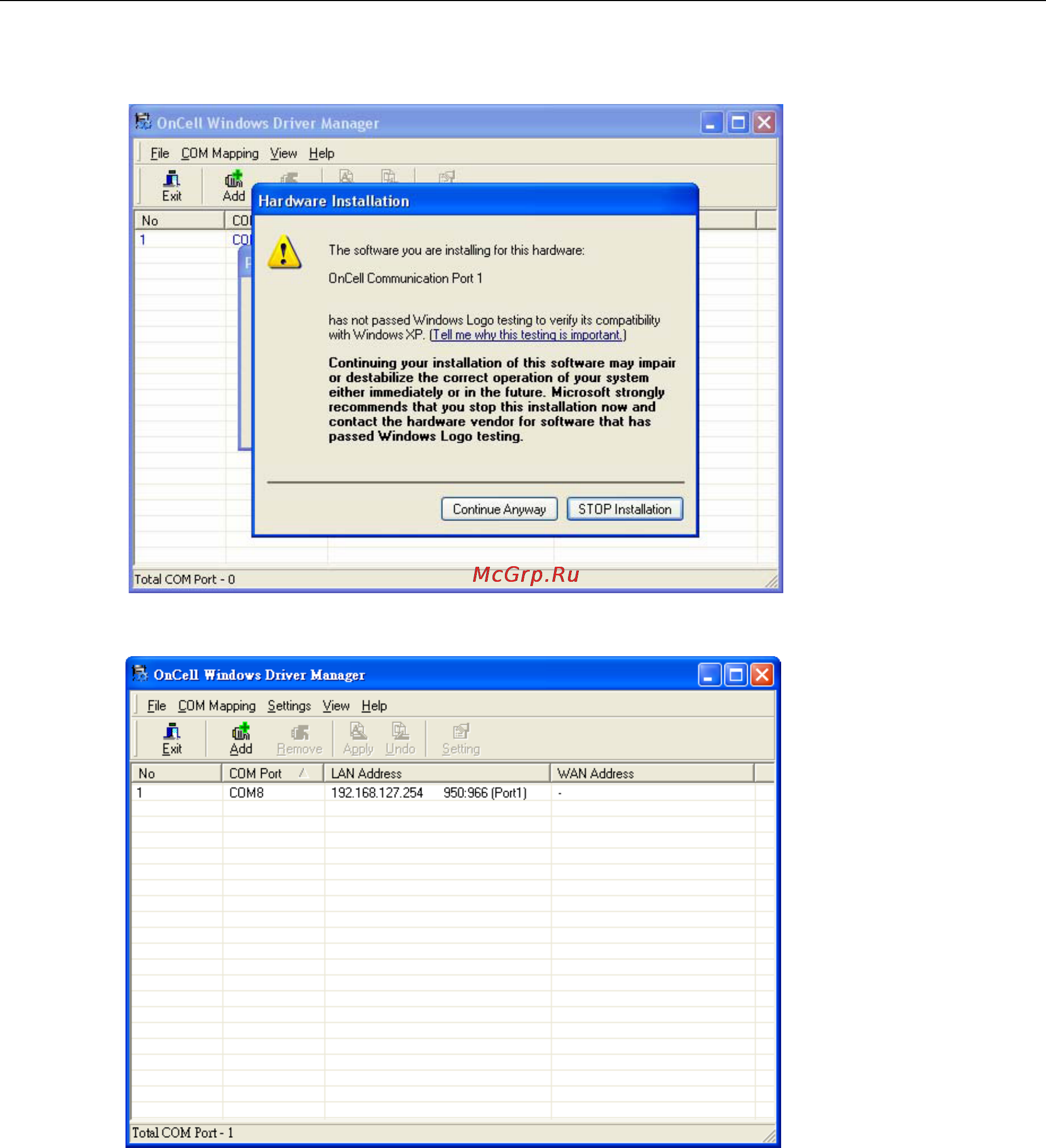

5. When using Windows XP, a message is displayed during the activation of each port, indicating that the
software has not passed Windows Logo certification. Click Continue Anyway to proceed.
6. Ports that have been activated will appear in black.
