Pan, Rotation, and Tilt Adjustment

Use the pan, rotation, and tilt fasteners for panning, rotating, and tilting

the lens angles. To do this, the screws must be loosened in advance. After

the lens angles are correct, tighten the screws to fix the angles.

Light Sensor

The VPort 26A-1MP includes a light sensor for detecting illumination,

which is for enabling the ICR (IR-cut filter removable) function. When the

illumination is under 3 lux, the image will be switched to night mode in

black and white, and when the illumination is greater than 5 lux, the

image will be switched back to day mode in color.

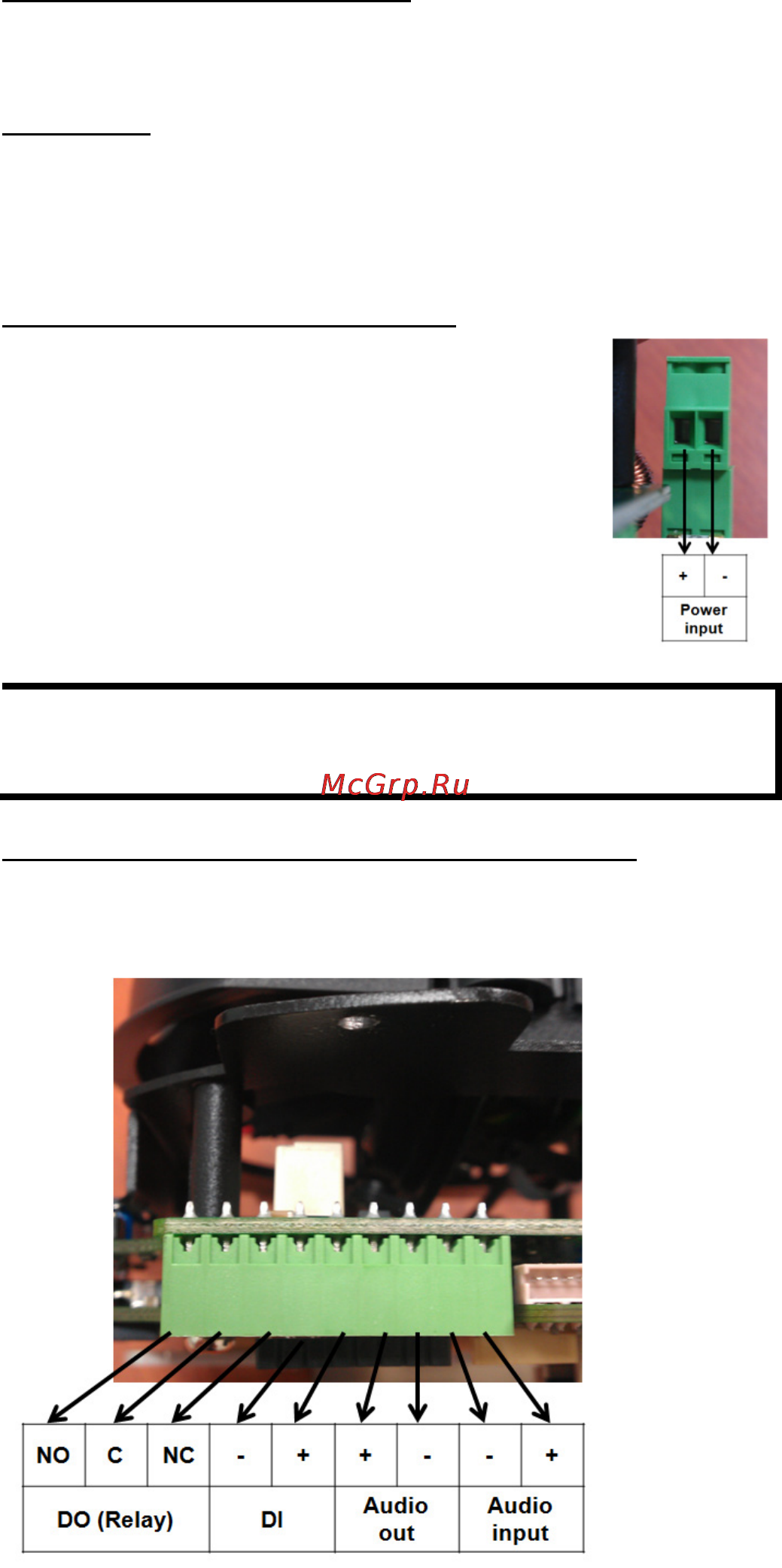

2-pin Terminal Blocks for Power Input

The VPort 26A-1MP series comes in two models:

•

VPort 26A-1MP: 12/24 VDC or 24 VAC power

inputs

•

VPort P26A-1MP: powered with PoE (Power over

Ethernet, 802.3af)

Note: The 2

-pin terminal block shown here is for the

direct

-wired power input of the VPort 26A-1MP.

NOTE

The specifications of the direct

-wired power input are 12-

32 VDC

for 12/24 VDC power input, or 18

30 VAC for 24 VAC power input.

The maximum power consumption is 5.5 watts.

9-pin Terminal Block Connector for DI, DO, and Audio

The VPort 26A-1MP supports 1 DI (digital input), 1 DO (relay output), 1

audio input (line-in or mic-in), and 1 audio output (line-out) through the

9-pin terminal block.
