- 16 -

RS-232 Console Port Connection

VPort 364A has one RS-232 (10-pin RJ45) console port, located on the

top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable (see the

cable following wiring diagrams) to connect VPort 364A’s console port to

your PC’s COM port.

You may then use a console terminal program, such as the Moxa PComm

Terminal Emulator, to access VPort 364A’s console configuration utility.

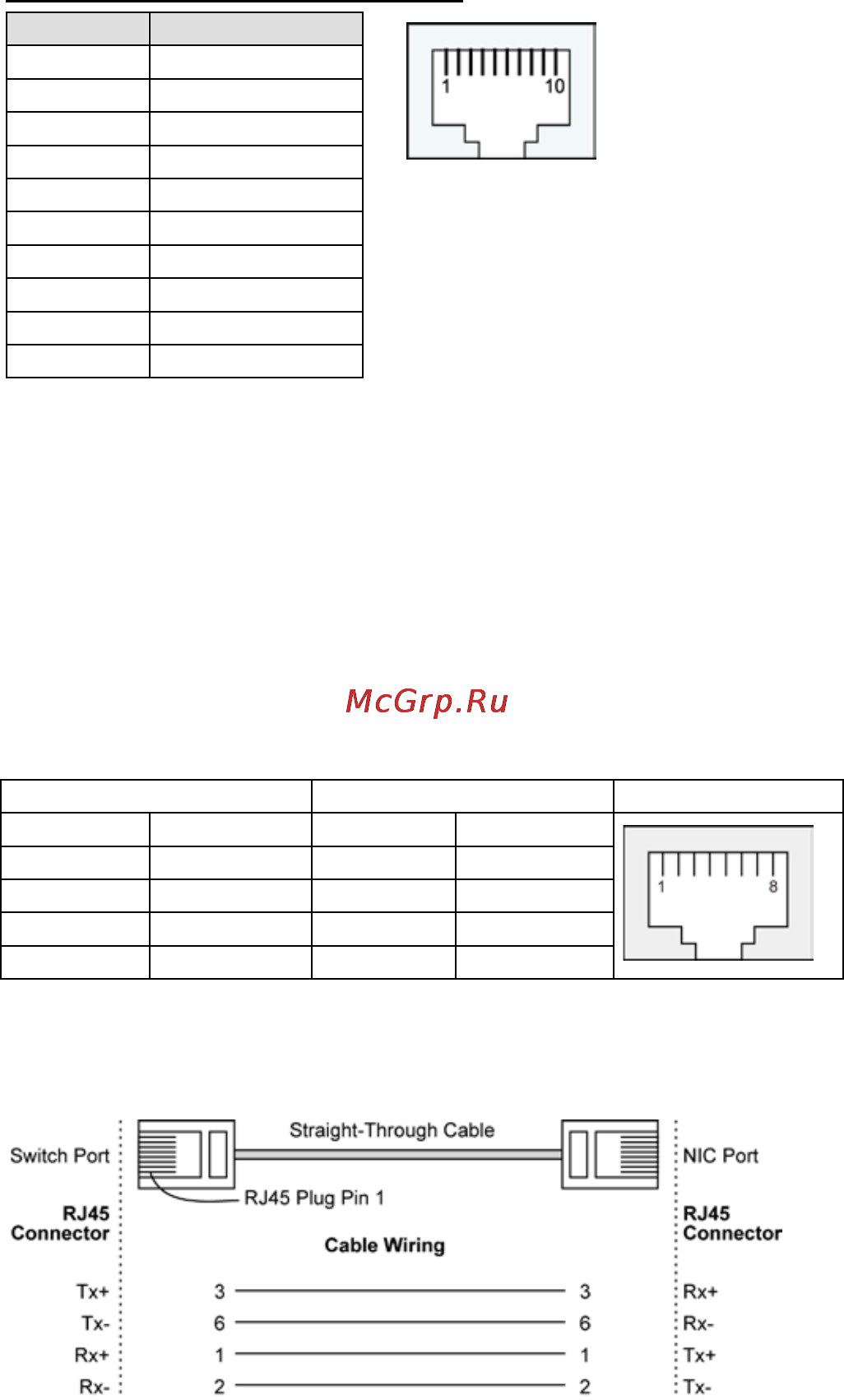

RJ45 (10-pin) Console Port Pinouts

Pin Description

–

DSR

–

GND

TxD

RxD

GND

–

DTR

–

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) port located on the VPort 364A’s front panel is used

to connect to Ethernet-enabled devices.

Pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type)

ports are illustrated below, along with cable wiring diagrams for

straight-through and cross-over Ethernet cables.

The 10/100BaseT(X) port of the VPort 364A is an MDI port, which means

that you should use a cross-over Ethernet cable to connect to the MDI NIC

port, and a straight-through Ethernet cable to connect to the MDI-X

HUB/Switch port.

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Rx+

Tx-

Rx-

Rx+

Tx+

Rx-

Tx-

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable

Wiring
