Audiophile USB MIDI Setup

The Audiophile’s MIDI input and output ports may be connected to

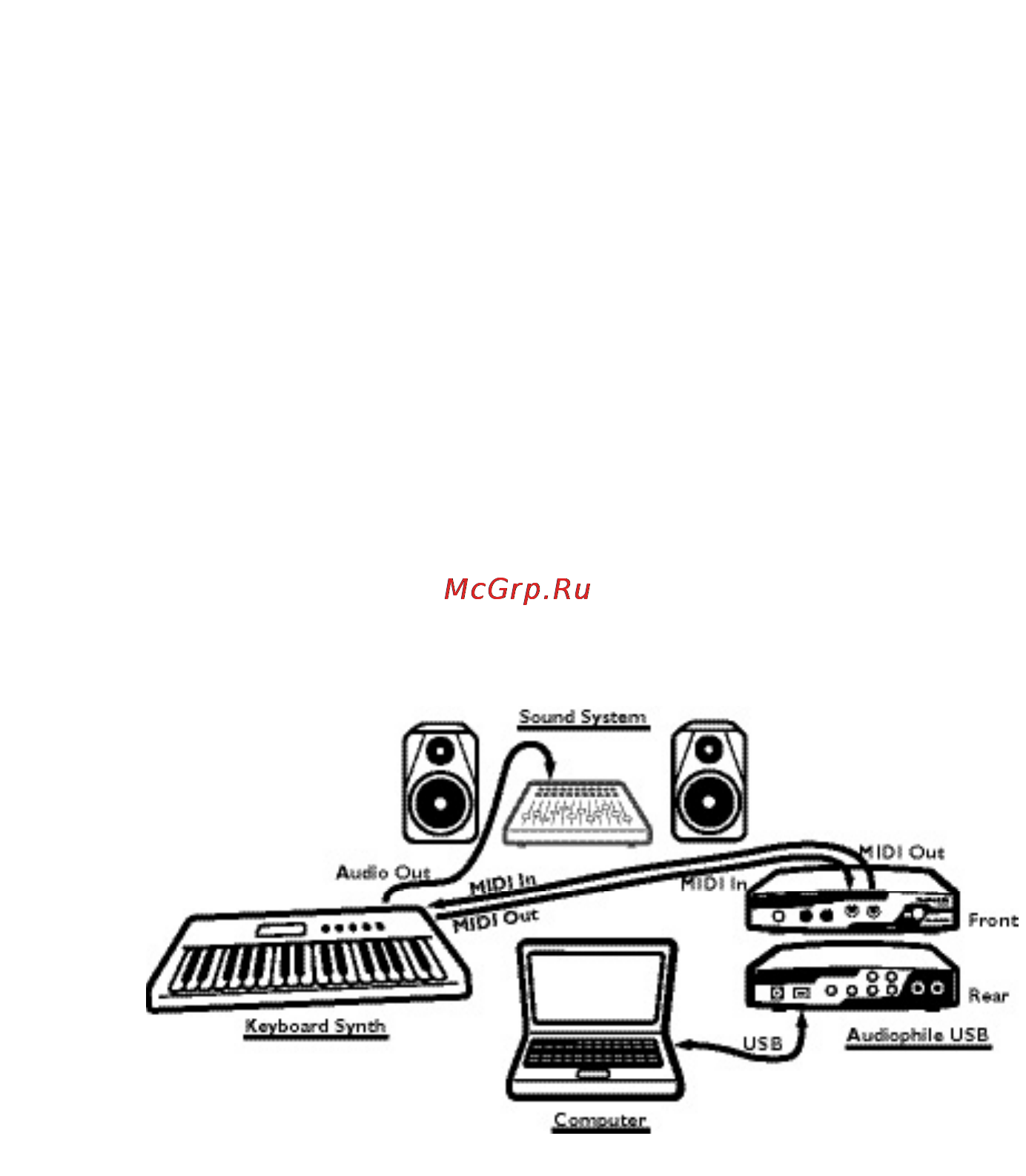

external MIDI devices.The following diagram shows connection to a MIDI

keyboard instrument,which is also being used as a sound module.The MIDI

output of the Audiophile USB may be used with just a sound module,while

the MIDI input may alternately be used to receive MIDI time code for

synchronization purposes.

1. Connect the MIDI out port of your controller keyboard to the

Audiophile’s MIDI In port using a standard MIDI cable.

2. Connect the Audiophile’s MIDI Out port to the MIDI in of your keyboard

instrument (or a sound module),also using a standard MIDI cable.

3. Connect the audio outputs of the keyboard to either a mixer, sound

system, or the audio inputs of the Audiophile USB.

The Audiophile USB MIDI drivers, once enabled in your software’s MIDI

Setup, will appear as a MIDI source and a MIDI port within that program’s

track configuration windows. The MIDI input driver is named “In

Audiophile USB”, and the MIDI output driver is named “Out Audiophile

USB”. Some software applications allow you to redefine/rename these

devices per supplied or manually entered instrument definitions.
