4 D-Link DWL-2600AP Quick Install Guide
ENGLISH

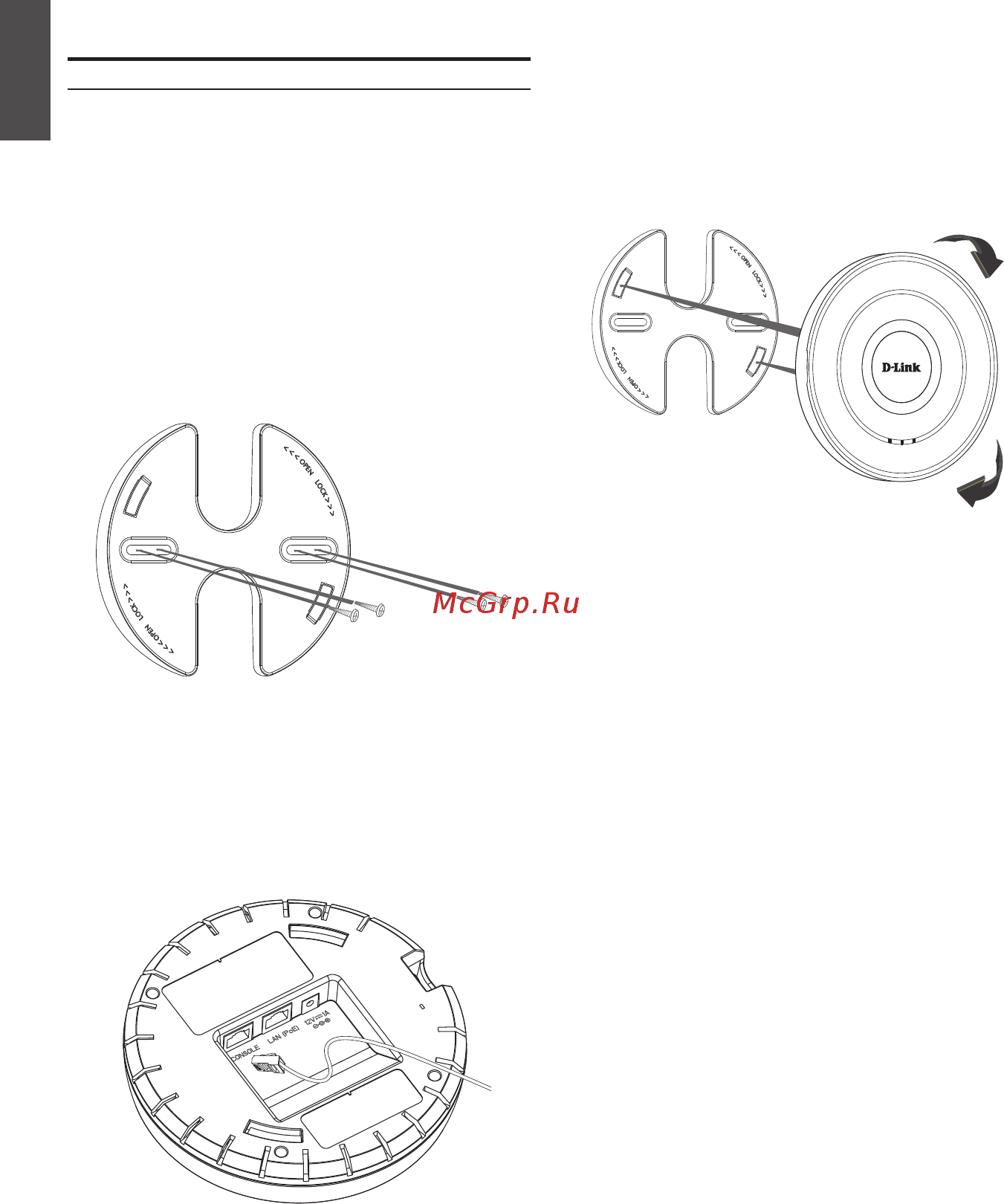

Mounting Using Anchor Screws
1. Place the plastic wall mounting ring on a
wall or ceiling.
2. Mark the points where you will insert the
screws. Take out the mounting ring.
3. Drill holes in the marked points and
insert the plastic wall anchors.
4. Use the supplied screws to attach the
mounting ring to the wall.
5. Plug the CAT 5 cable into the LAN port on
the access point.
6. To attach the access point to the
mounting ring, rst locate the right side
of the access point that has a small lock
symbol on it, and make sure to line up
this side with the side of the mounting
ring that has Open - Lock written on it.
7. Twist clockwise to lock the access point
onto the ring. The lock symbol on the
access point must point directly to the
Close text on the mounting ring.
POWER
LAN
2.4GHz
Installation
