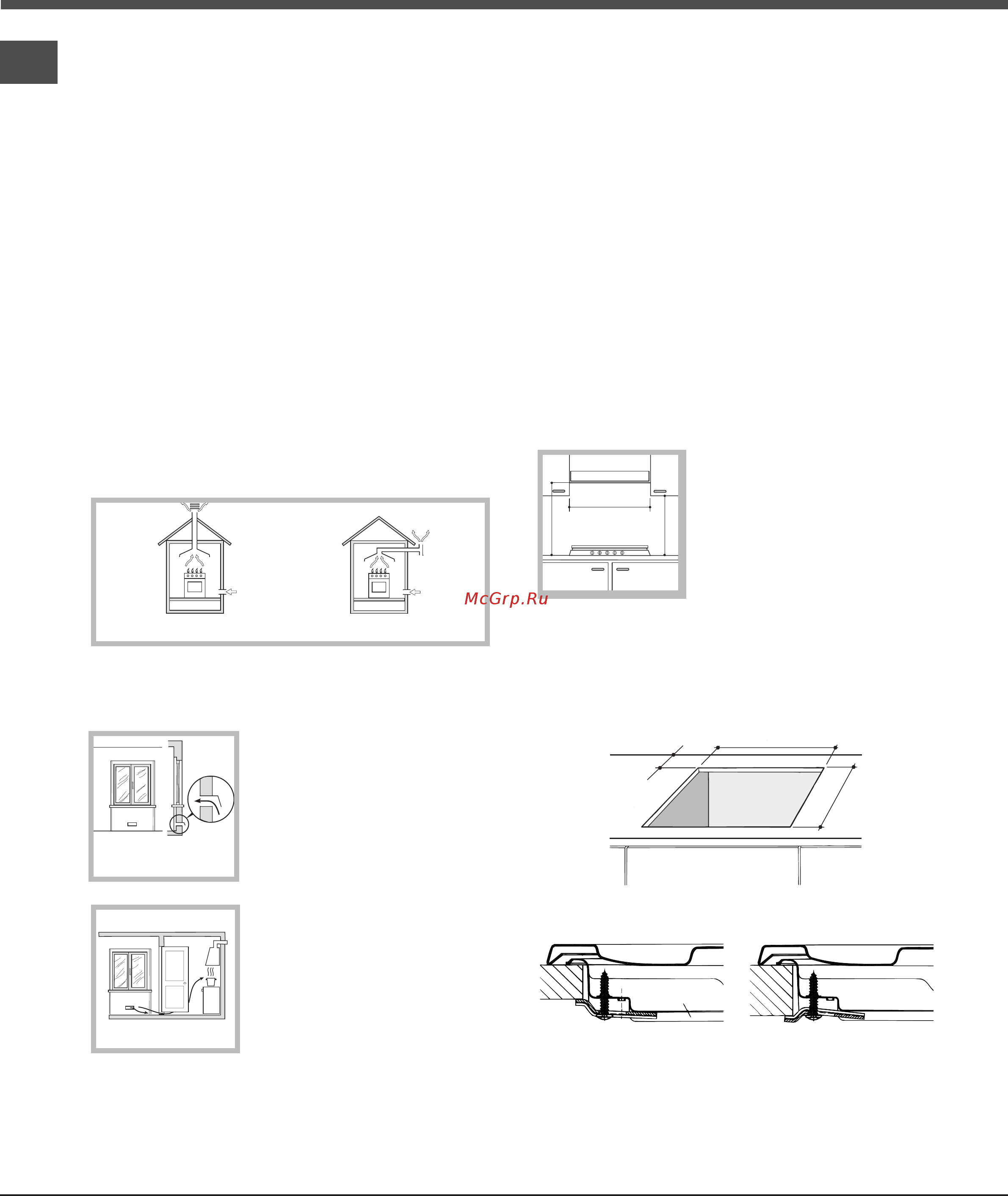

2
GB
! Before operating your new appliance please read
this instruction booklet carefully. It contains important
information for safe use, installation and care of the
appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of the
appliance.
Positioning
! Keep packaging material out of the reach of children.
It can become a choking or suffocation hazard (see
Precautions and tips).
! The appliance must be installed by a qualified
professional according to the instructions provided.
Incorrect installation may cause harm to people and
animals or may damage property.
! This unit may be installed and used only in
permanently ventilated rooms in accordance with
British Standard Codes Of Practice: B.S. 6172 / B.S.
5440, Par. 2 and B.S. 6891 Current Editions. The
following requirements must be observed:
• Theroommustbeequippedwithanairextraction
systemthatexpelsanycombustionfumes.Thismay
consist of a hood or an electric fan that automatically
starts each time the appliance is switched on.
• Theroommustalsoallowproperaircirculation,as
air is needed for combustion to occur normally. The
flow of air must not be less than 2 m
3
/h per kW of
installed power.
The air circulation system may
take air directly from the outside
by means of a pipe with an
inner cross section of at least
100 cm
2
; the opening must not
be vulnerable to any type of
blockages.
The system can also provide
the air needed for combustion
indirectly, i.e. from adjacent
rooms fitted with air circulation
tubes as described above.
However, these rooms must not
be communal rooms, bedrooms
or rooms that may present a fire
hazard.
• Liquidpetroleumgassinkstothefloorasitis
heavierthanair.Therefore,roomscontainingLPG
cylinders must also be equipped with vents to allow
gas to escape in the event of a leak. As a result
LPGcylinders,whetherpartiallyorcompletelyfull,
must not be installed or stored in rooms or storage
areas that are below ground level (cellars, etc.). It
is advisable to keep only the cylinder being used in
the room, positioned so that it is not subject to heat
producedbyexternalsources(ovens,fireplaces,
stoves, etc. ) which could raise the temperature of
the cylinder above 50°C.
Fitting the appliance
GasandmixedhobsaremanufacturedwithtypeX
degree protection against overheating. The following
precautions must be taken when installing the hob:
• Kitchencabinetsadjacenttotheapplianceandtaller
than the top of the hob must be at least 600 mm
from the edge of the hob.
• Hoodsmustbeinstalledaccordingtotheirrelative
installation instruction manuals and at a minimum
distance of 650 mm from the hob.
• Placethewallcabinetsadjacenttothehoodat
a minimum height of 420 mm from the hob (see
gure).
If the hob is installed beneath a
wall cabinet, the latter must be
situated at a minimum of 700
mm above the hob (see gure).
• Theinstallationcavityshouldhavethedimensions
indicated in the figure.
Fastening hooks are provided, allowing you to fasten
the hob to tops that are between 20 and 40 mm
thick. To ensure the hob is securely fastened to the
top, we recommend you use all the hooks provided.
555 mm
55 mm
475 mm
Hook fastening diagram
Hooking position Hooking position
for top H=20 mm for top H=30 mm
Front
Installation
Enlarging the ventilation slot
between window and floor.
Adjacent
Room
Room to be
Vented
A
Examples of ventilation holes
for comburant air.
In a chimney stack or branched flue.
(exclusively for cooking appliances)
Directly to
the Outside
600mm min.
420mm min.
650mm min.
